30
Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
Ensure that an authorized installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.

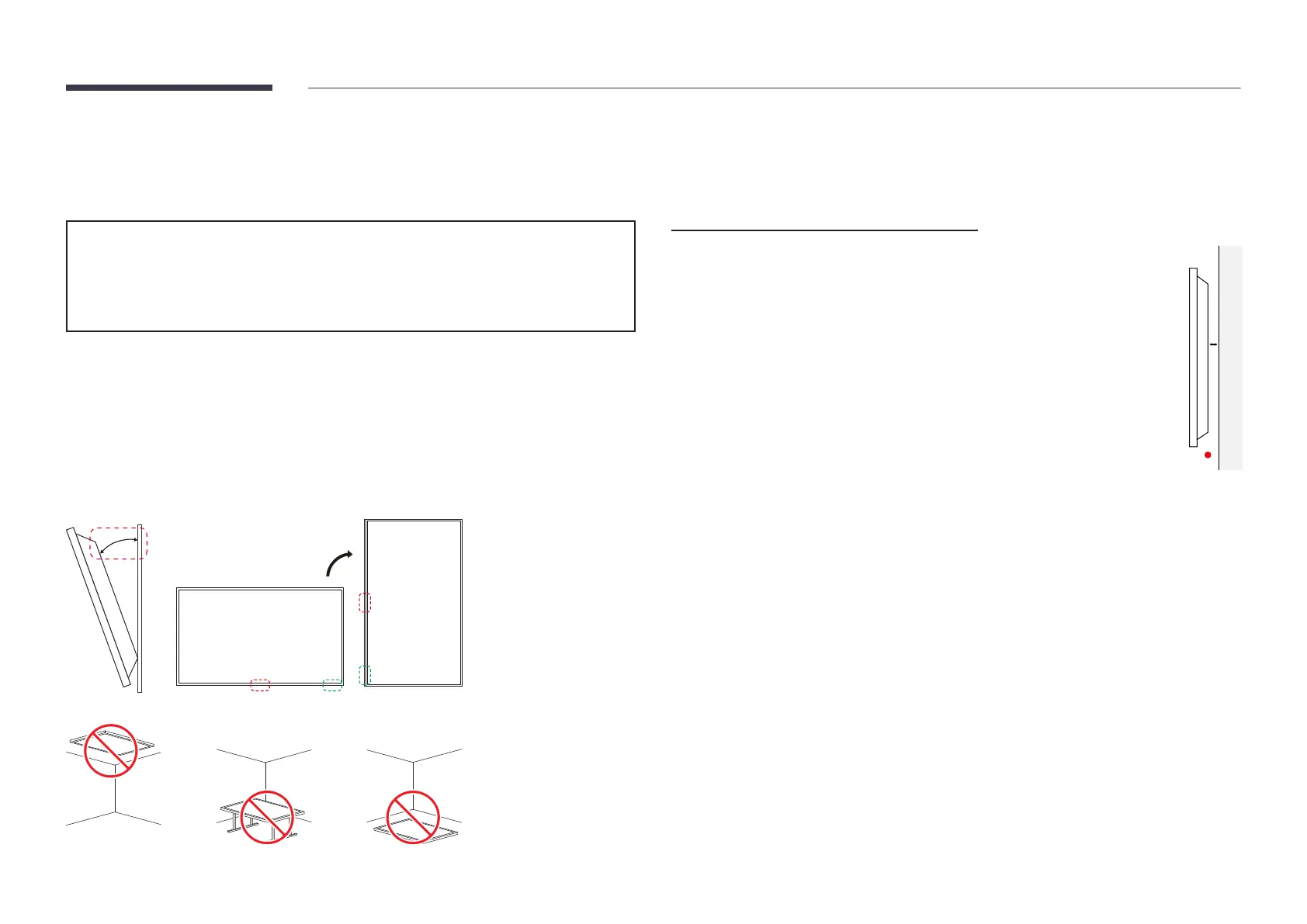

Tilting Angle and Rotation
"
Contact Samsung Customer Service Center for further details.
The product can be tilted at a maximum angle of 15° from a perpendicular wall surface.
To use the product in Portrait mode, rotate clockwise until the power indicator (A or B) is
positioned as shown in the images below.
"
QB24C, QB24C-T, SH37C models are not supported.
15°
A
B
A
B
"
Do not use this model installed on a ceiling, floor, or table.
Ventilation
"
Contact Samsung Customer Service Center for further details.
Installation on a Perpendicular Wall
A Minimum 7. 5 mm (Supported models: QM32C, QB43C, QH43C, QM43C,
QB50C, QH50C, QM50C, QB55C, QB55C-N, QH55C, QM55C, QB65C,
QB65C-N, QH65C, QM65C, QB75C, QB75C-N, QH75C, QM75C, QB85C,
QB85C-N, QM85C)
Minimum 15 mm (Supported models: QB24C, QB24C-T)
Minimum 40 mm (Supported model: SH37C)
A
B
B Ambient temperature: Under 35 °C
