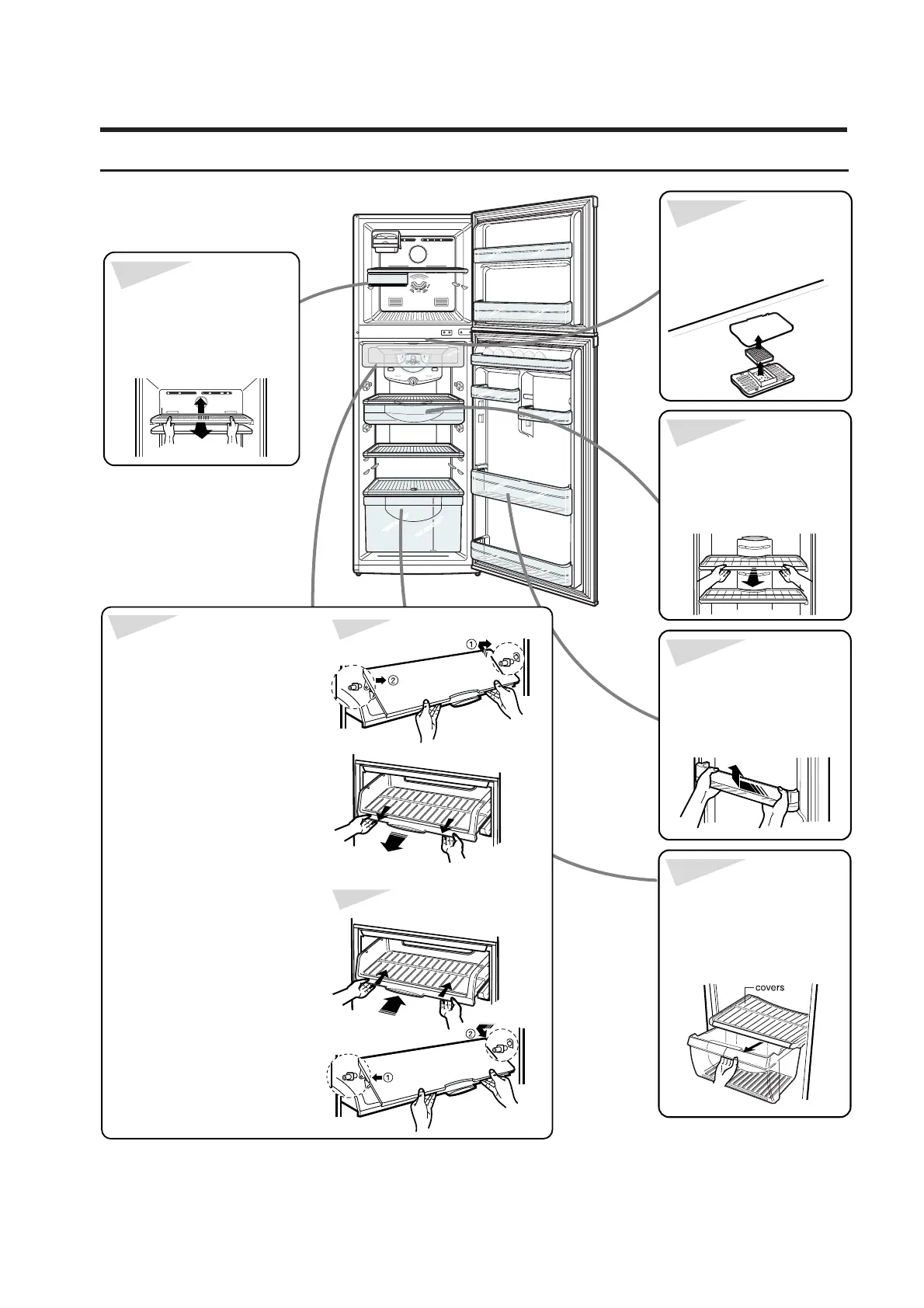

To remove shelves in the
freezing compartment
• Frist remove the icemaking
molds. Tilt the shell up at
front, then lift it up and pull
it out of the tracks.
To remove bio
deodorizer
• While pushing the front end
knob of the bio deodorizer,
pull it downward to
disengage.
To remove shelves in the
refrigerating compartment
• Hold the shelf by the front
and pull it forward of the
rack.
To remove shelves in the
chilled compartment
Disassemble
Reassemble
• Lift up the cover, push the
cover to the right (as shown)
until the mounting hook(①)
disengages, then disengage
the other mounting hook (②)
and pull out the cover.
• Pull the shelf forward until it
stops. then lift it up and pull
it out.
• With shelf front raised
slightly, engage, the roller
between the rails and slide it
back.
• To repace the cover, first
engage the mounting hook
(①) as shown, then engage
the other hook (②) and push
in.
To remove door bins
• While pushing the bin
to the left, lift it up to
disengage.
To remove storage
drawers and covers
• Lift up to remove the cover.
Pull the drawer helf way out,
then lifting it up, pull it out
completely.
5-2) Identifying and disassembling the parts
To Next Page
