Samsung RT44MB - Electric Circuit Diagram

7

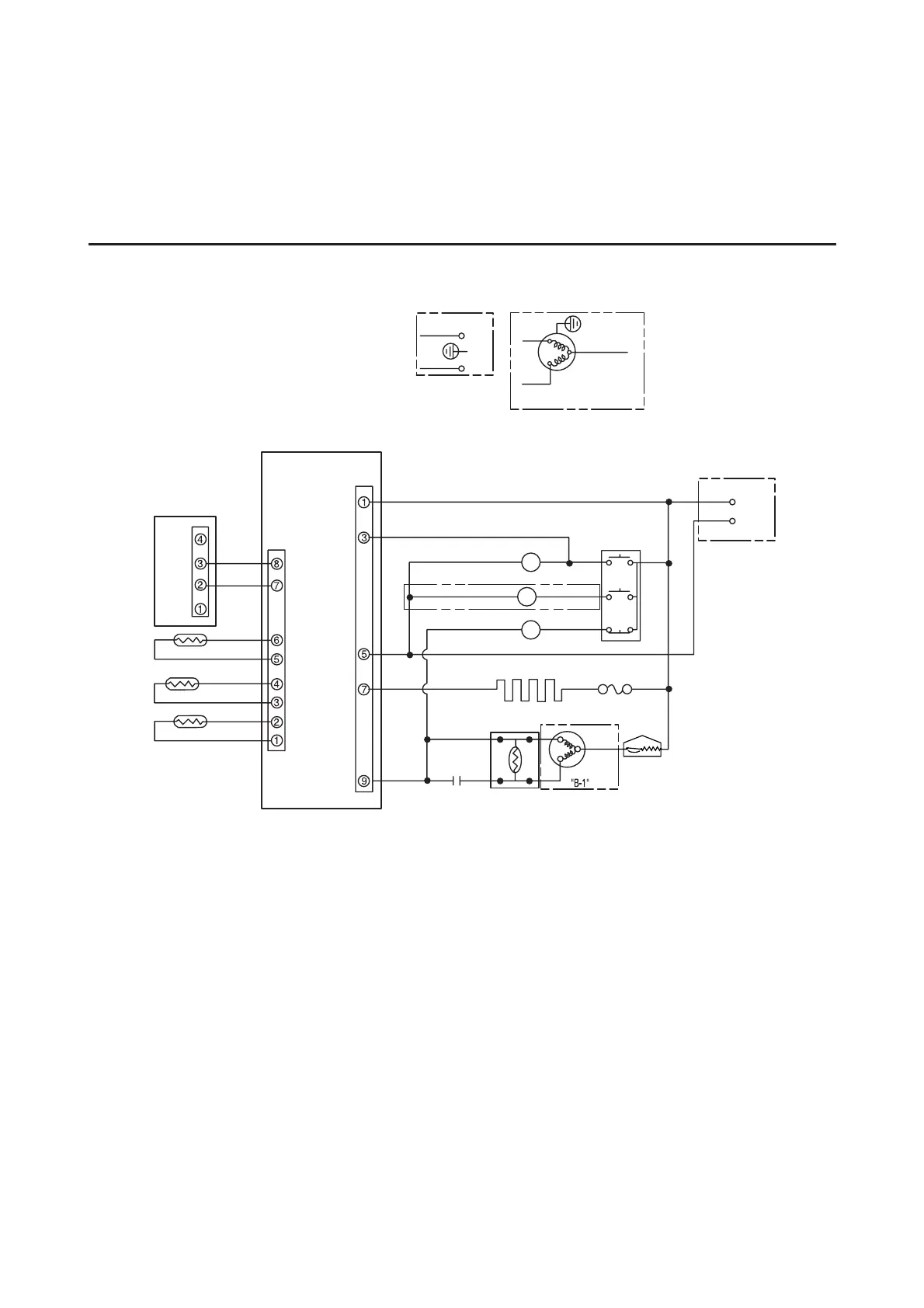

4. Electric Circuit Diagram
●
Semi Electric Control Type
SUB PCB
MAIN PCB
CN01
R ROOM-SENSOR
EXT-SENSOR
EVAP-SENSOR
SK/BLU
RUNNING
CAPACITOR
P.T.C RELAY
PINK
SK/BLU
PINK
25
S
C
COMPRESSOR
RED
WHT
THERMAL FUSE
DEFROST HEATER
FAN MOTOR
PINK
3
12
WHT
R/LAMP
GRY
DOOR SWITCH
RED
RED
N
L
N
E
L
E
M
S
C
COMPRESSOR
"B-2"
“A-2"
“A-1"
GRY
F/LAMP
L
L
WHT/BLK
M
RED
OVERLOAD
PROTECTOR
36
YEL
YEL
WHT
WHT
GRY
GRY
BRN
BRN
RED
WHT
GRY
BRN
CN02
CN01
“A-1" “B-1" : WITHOUT EARTH
“A-2" “B-2" : WITH EARTH
“C" : WITH F/LAMP
GRY-GRAY
RED-RED
BRN-BROWN
YEL-YELLOW
WHT/BLK-WHITE/BLACK
PINK-PINK
WHT-WHITE
SK/BLU-SKY BLUE
E-EARTH
“C"
[220V/50Hz, 230~240V/50Hz]-RT40/44
