Samsung RT44MB - Refrigeration Cycle and Cool Air Circulation; Refrigeration Cycle

11

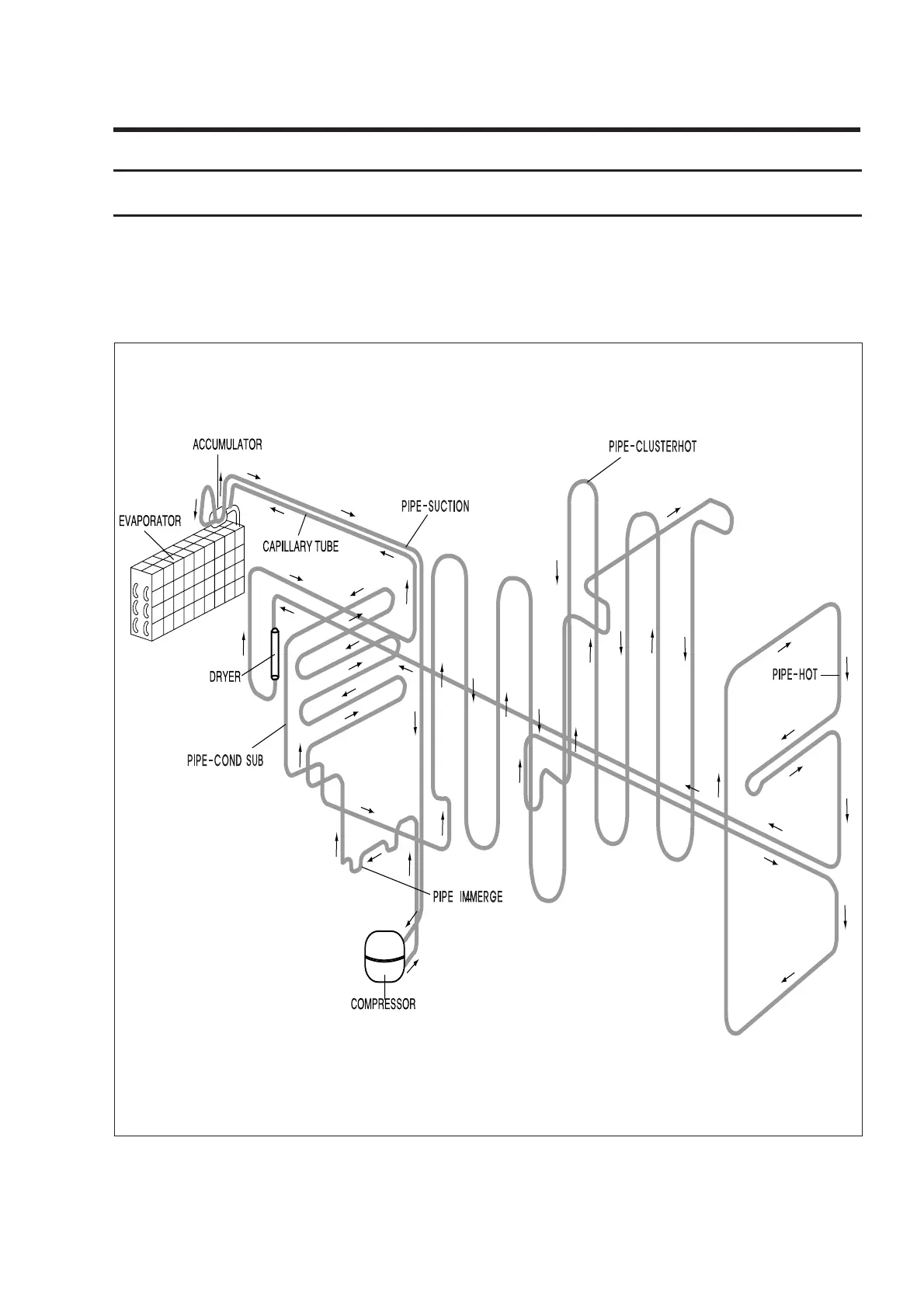

6. Schematic diagram of coolant gas circulation
COMPRESSOR → PIPE IMMERGE → PIPE SUB CONDENSER → PIPE CLUSTER →
PIPE HOT → DRYER→ CAPILLARY TUBE → EVAPORATOR → ACCUMULATOR →
PIPE SUCTION → COMPRESSOR
6-1) Refrigeration Cycle
