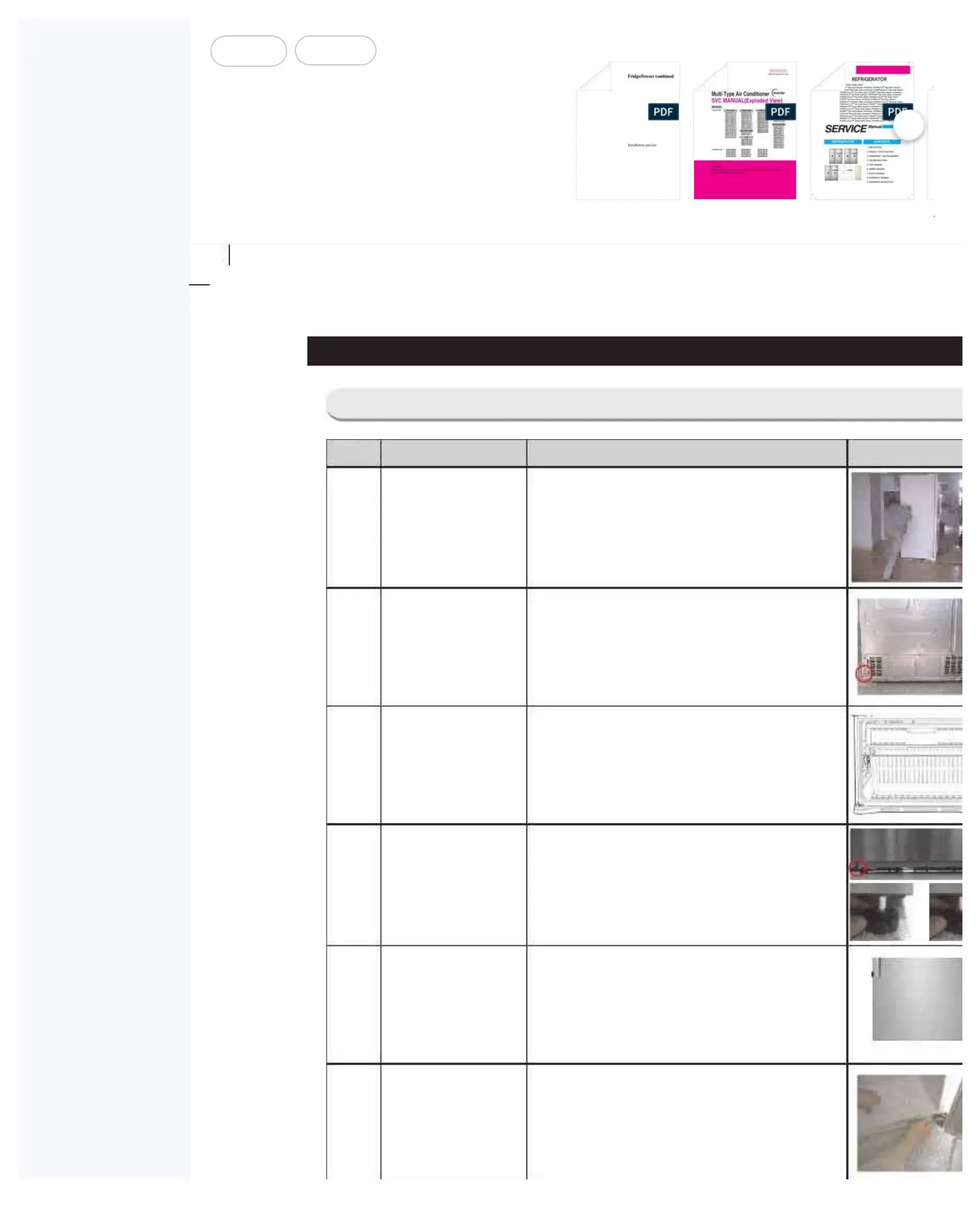

DISASSEMBLY & REASSEMBLY
3-6. Check the door level and
adjust
N
O
P
R
E
C
E
D
U
R
E
S
H
O
W
T
O
D
O
PICTURES
1
Put the unit on its
installation place
- under the roof, they should use rug or mat to
prevent
the
floor
damage.
※ the installer should select a
proper location.
2
Check the floor even
- If the back of the ref is not leveled, there
will be diagonal defect. So, make sure to put a
hard insertion
(ex: wooden
block, plastic
bar) on
the lowe
r floor,
fix it w
ith stick
y tapes
and
level
it.
3
Insert leveling JIG
- to let the both rear caster touch the floor,
lift up a
little the
unit and
insert the
JIG
4
Adj
ust
the
fron
t leg
s
- using a flat driver, let the legs touch the floor
5
Remove the leveling JIG
- settle the unit entirely, pull out the JIG
6
Level the doors
- turn the adjusting screws clockwise or count
clockwise, make the door level even
※ make sure that the lock nut on adjusting screw
entirely
fixed.
