Samsung S3C8275X - Pin LQFP Package Dimensions (64-LQFP-1010)

MECHANICAL DATA S3C8275X/F8275X/C8278X/F8278X/C8274X/F8274X
18-2
0.08 MAX
0.09~0.20
64-LQFP-1010
#64
NOTE : Dimensions are in millimeters.
10.00 BSC
12.00 BSC
10.00 BSC 12.00 BSC
#1
0.50 BSC
0-7
0.45~0.75
0.10 ± 0.05
1.40 ± 0.05
1.60 MAX
0.20
+ 0.07
- 0.03

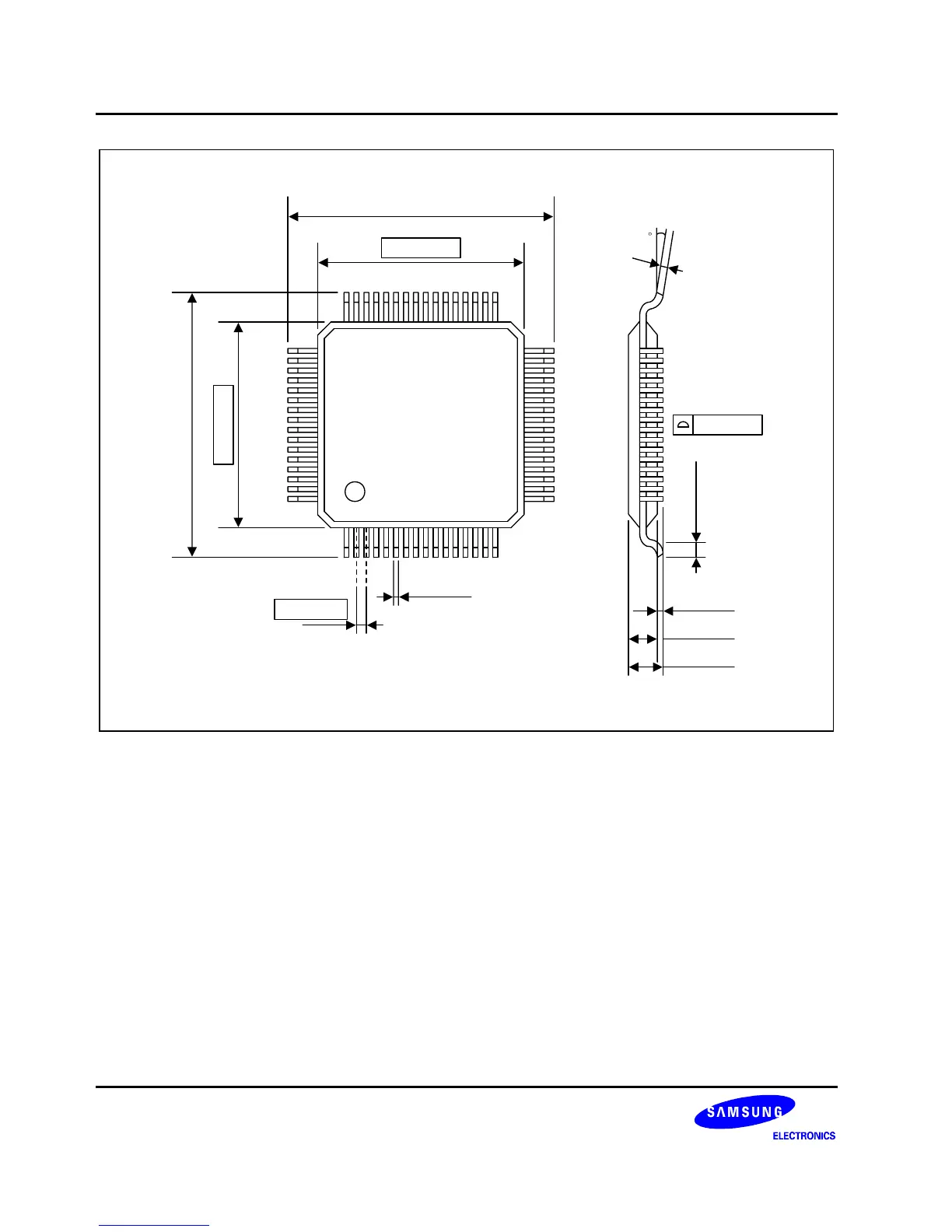

Figure 18-2. 64-Pin LQFP Package Dimensions (64-LQFP-1010)
