Alignment and adjustment
5-24 Samsung Electronics

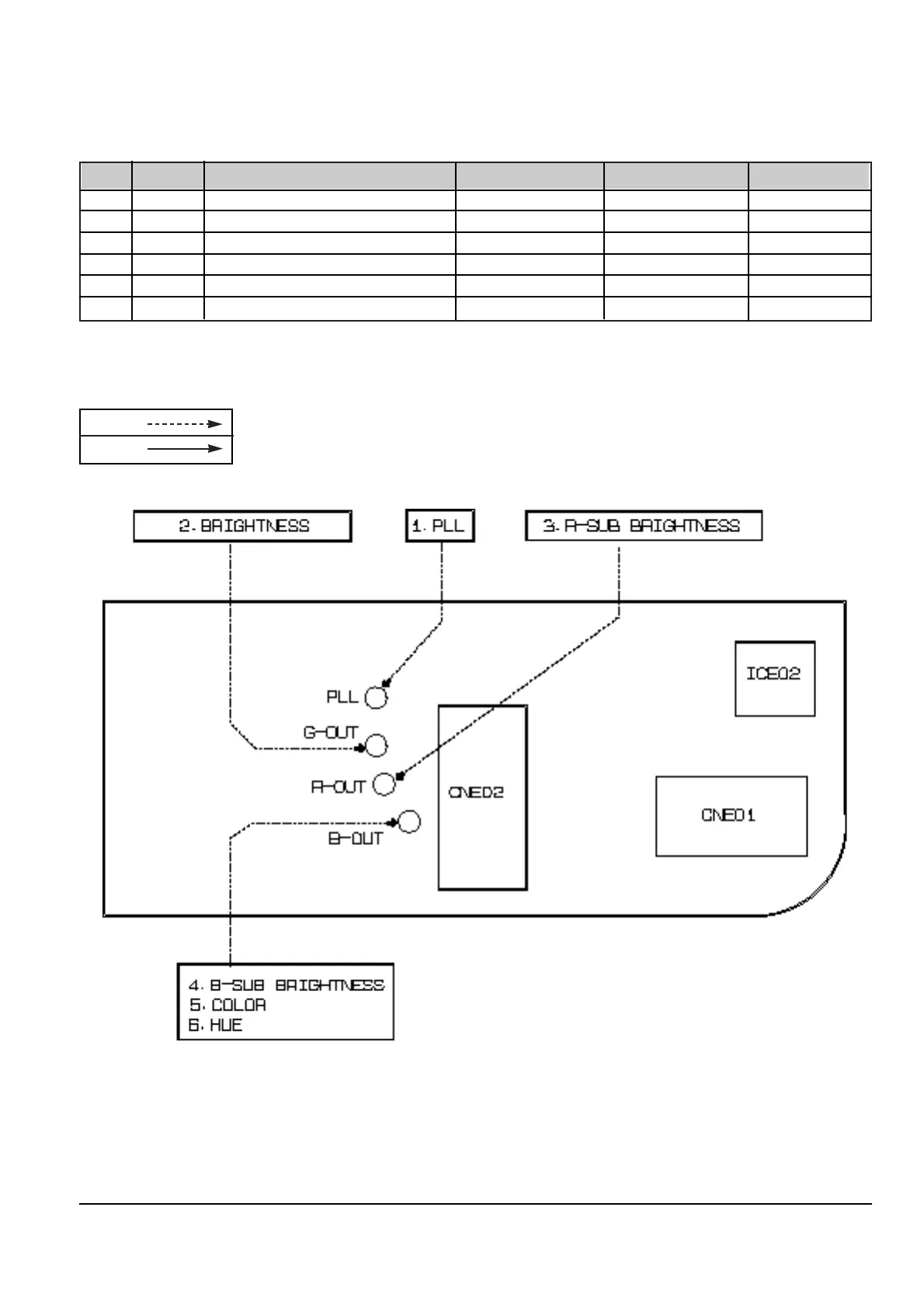

CVF PCB (Component side)
3 Test point and adjustment points :
Test point
ADJ. point
NO
ADDRESS
Adjustment name Test point Adjustment point Spec.
1 08 PLL PLL EVR 1.8 ± 0.1V DC
2 02 BRIGHTNESS G-OUT EVR 8.0Vp-p
3 04 R-SUB BRIGHTNESS R-OUT EVR 8.0Vp-p
4 05 B-SUB BRIGHTNESS B-OUT EVR 8.0Vp-p
5 01 COLOR B-OUT EVR -
6 00 HUE B-OUT EVR -
