Alignment and adjustment
Samsung Electronics 5-31

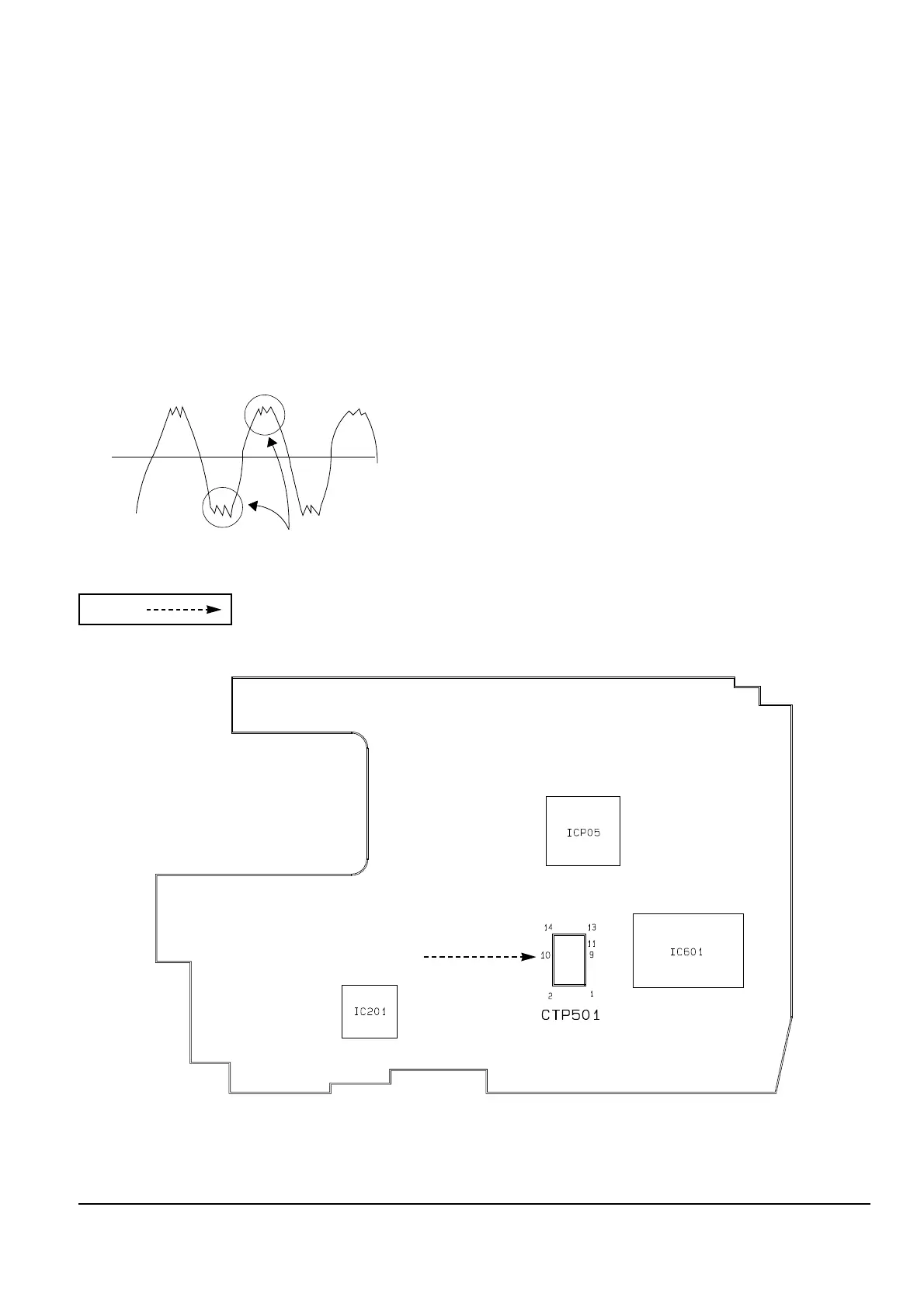

6. Audio BPF (Audio block)
1) PB, color bar tape.
2) Pin 10 of CTP501 and EVR.
3) Confirm the ÒA. AUDIO BPFÓ mode by pressing
the ÒBLCÓ (mode change) button on UNIT.
4) Connect an oscilloscope to pin 10 of CTP501.
5) Press the Ò- (DATA DOWN)/ +(DATA UP)Ó
button so that the output waveform is completed
sine wave and the distortion is miniized.
6) Be sure to Press the ÒDISPLAY(CONFIRM)Ó
button on unit to memorize setting.
