Alignment and adjustment
5-30 Samsung Electronics

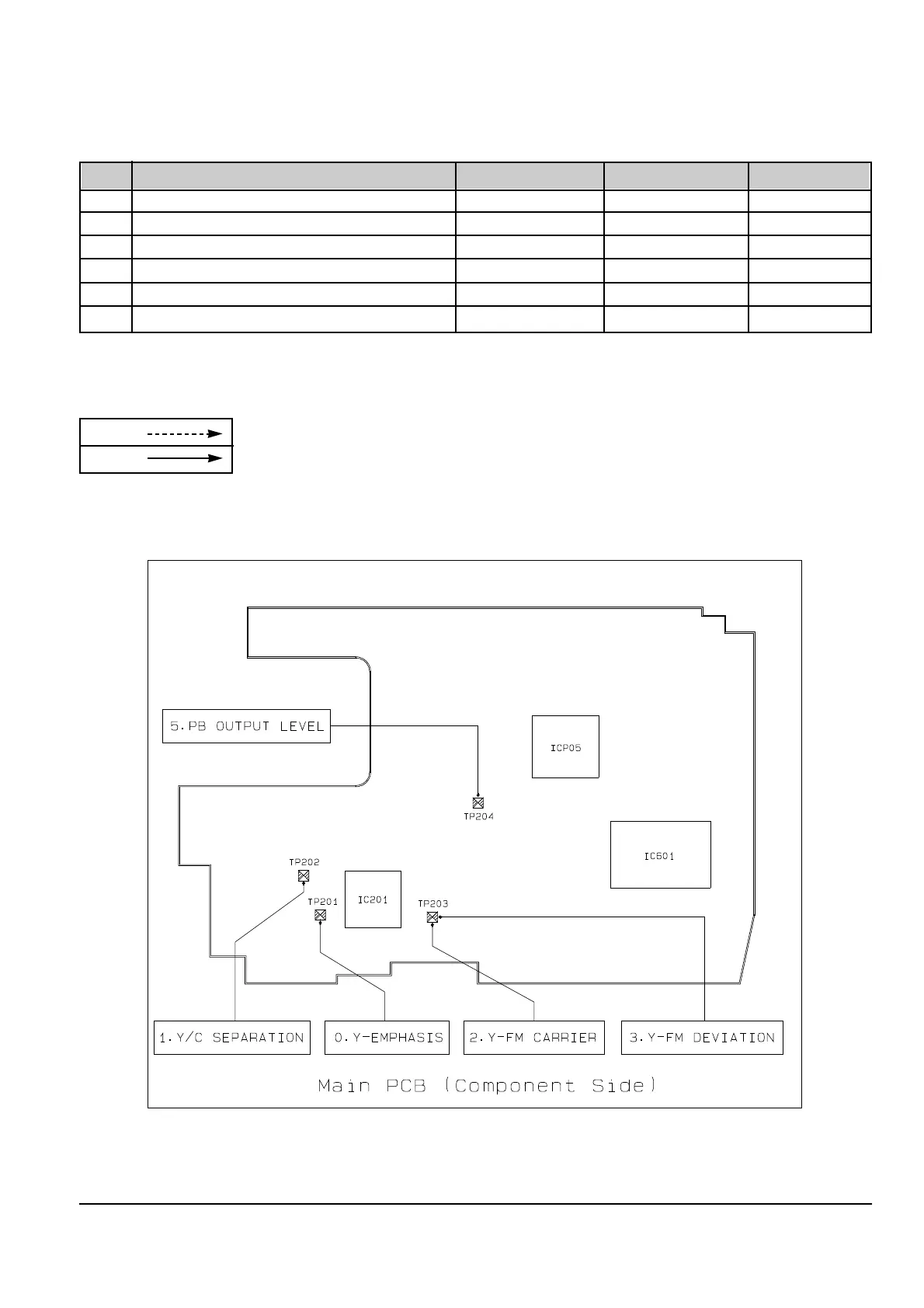

3 Test point and adjustment points :
NO
ADDRESS
Adjustment name Test point Adjustmen
0 Y-EMPHASIS TP201 EVR 0.5 ± 0.02Vp-p
1 Y/C SEPARATION TP202 EVR data fixed B4
2 Y-FM CARRIER FREQUENCY TP203 EVR 4.38 ± 0.02MHz
3 Y-FM DEVIATION TP203 EVR 1.0 ± 0.05Vp-p
4 REC Y LEVEL - EVR data fixed B4
5 PB OUTPUT LEVEL TP204 EVR 1.0 ± 0.05Vp-p
Test point
ADJ. point
To Next Page
