Alignment and adjustment
5-18 Samsung Electronics
15. B-Y Negative Hue
1) Camera ÒE-EÓ, 3100¡K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope input
jack and monitor TV jack respectively.
4) Press the ÒBLC (MODE UP)/FADE
(MODE DOWN)Ó button so that the OSD state is
Ò34 CHYE XX XXÓ.
5) Aim the camera at a color bar chart illuminated at
1500 to 2000 lx.
6) Adjust the Ò + (DATA UP)/ - (DATA DOWN)Ó
button so that the yellow vector is 165.
7) Be sure to press the ÒSTART/STOP (CONFIRM)Ó
button to memorize setting.
8) The OSD shows ÒOK!Ó.

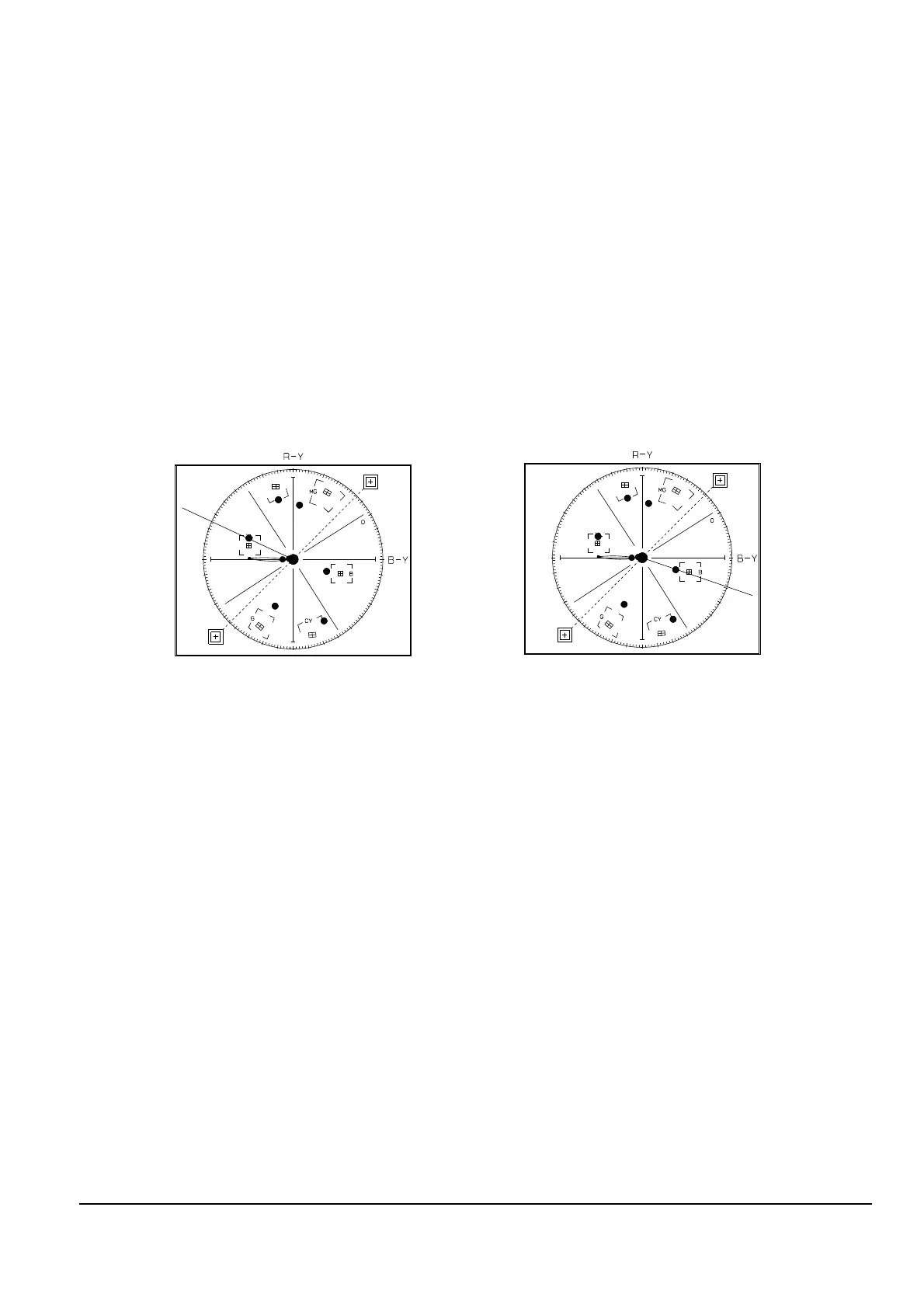

YELLOW VECTOR
165 DEG.
16. B-Y Positive Hue
1) Camera ÒE-EÓ, 3100¡K color bar chart.
2) Video(output) jack and register of EEPROM.
3) Connect video(output) jack to vectorscope input
jack and monitor TV jack respectively.
4) Press the ÒBLC (MODE UP)/FADE
(MODE DOWN)Ó button so that the OSD state is
Ò35 CHB XX XXÓ.
5) Aim the camera at a color bar chart illuminated at
1500 to 2000 lx.
6) Adjust the Ò + (DATA UP)/ - (DATA DOWN)Ó
button so that the blue vector is 346.
7) Be sure to press the ÒSTART/STOP (CONFIRM)Ó
button to memorize setting.
8) The OSD shows ÒOK!Ó.
BLUE VECTOR
346 DEG.
