Exploded View/Disassembly&Assembly Instructions
5-5
This Document can not be used without Samsung's authorization

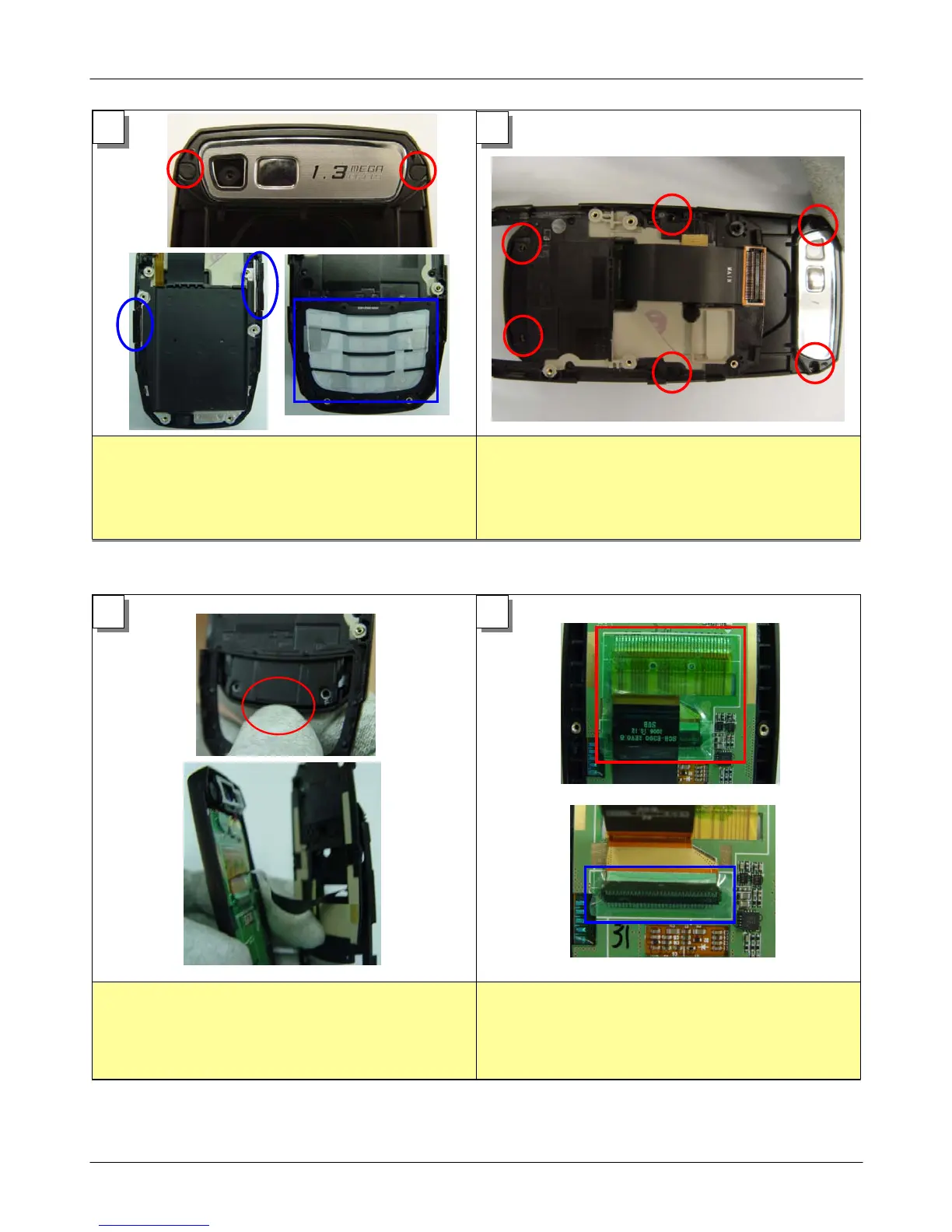

1. Open the slide. (Slide up)
2. Remove the 2 screw caps with tweezers.
3. Remove the shield can and side key.
4. Remove the main keypad.
1. Unscrew 6 points of Lower case as shown
in the picture
1.Thehookofslidelowershouldbe
disassembled first.
2. Widen space with hand and separate 2 parts.
1. Remove the insulation tape.
2. And separate LCD connector from sub-PBA.
5
6
7
8
