Smart
Door Lock
SHS-3320/3321
|

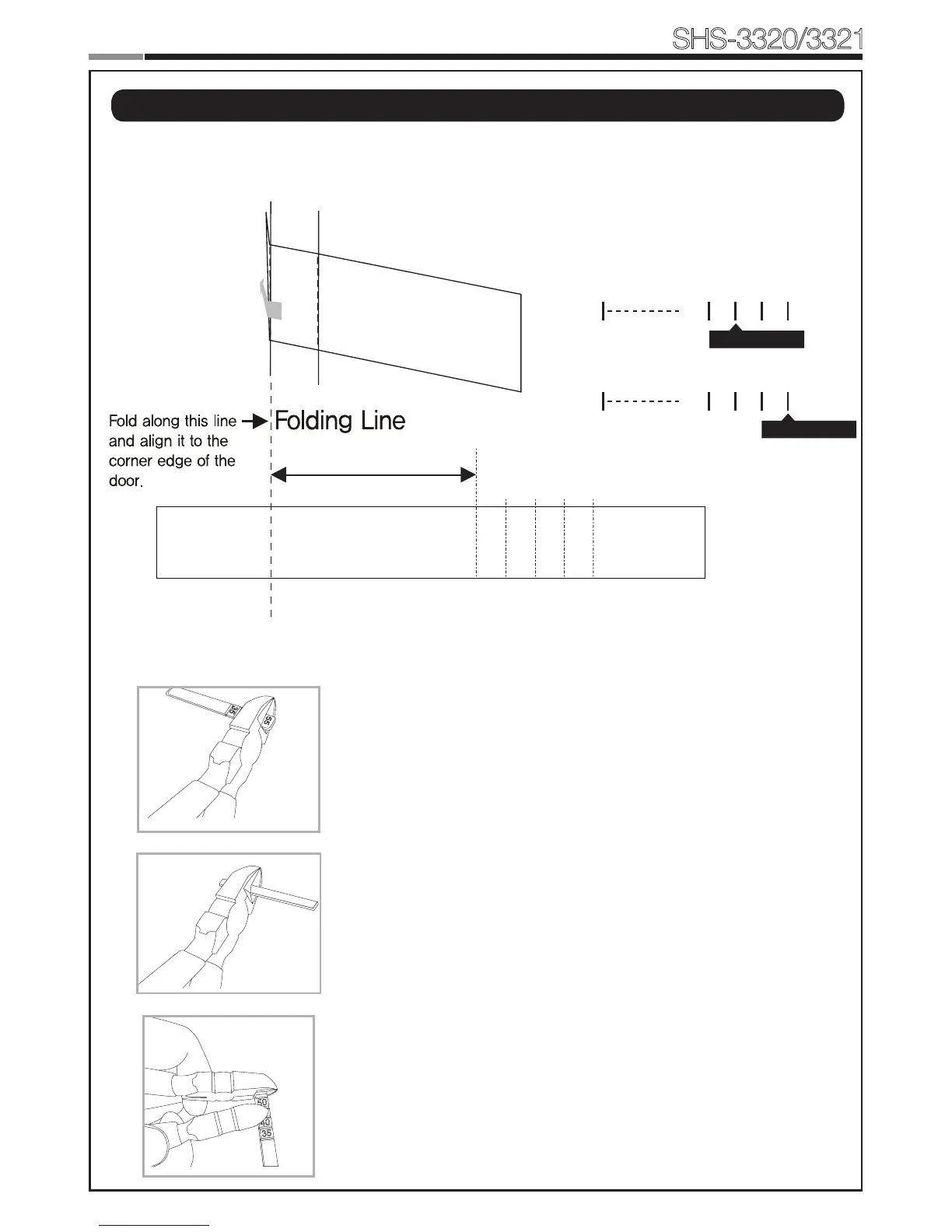

Tailpiece Setting
• Tailpiece drawing
1. Press the V-cut line with pincers to make
more cut line.
2. Hold the the end of the tailpiece with pincers.
3. Bend it up and down until it is separated.
How to cut
35 40 45 50 55
cutting point
35 40 45 50 55
cutting point
35mm
1. Check the thickness of your door with our
tailpiece drawing or a ruler.
2. According to your door thickness, cut and
adjustthetailpieceasfollowingway;
ex1)Thickness:40mm
ex2)Thickness:53mm
40 45 50 5535
