Preparing the parts

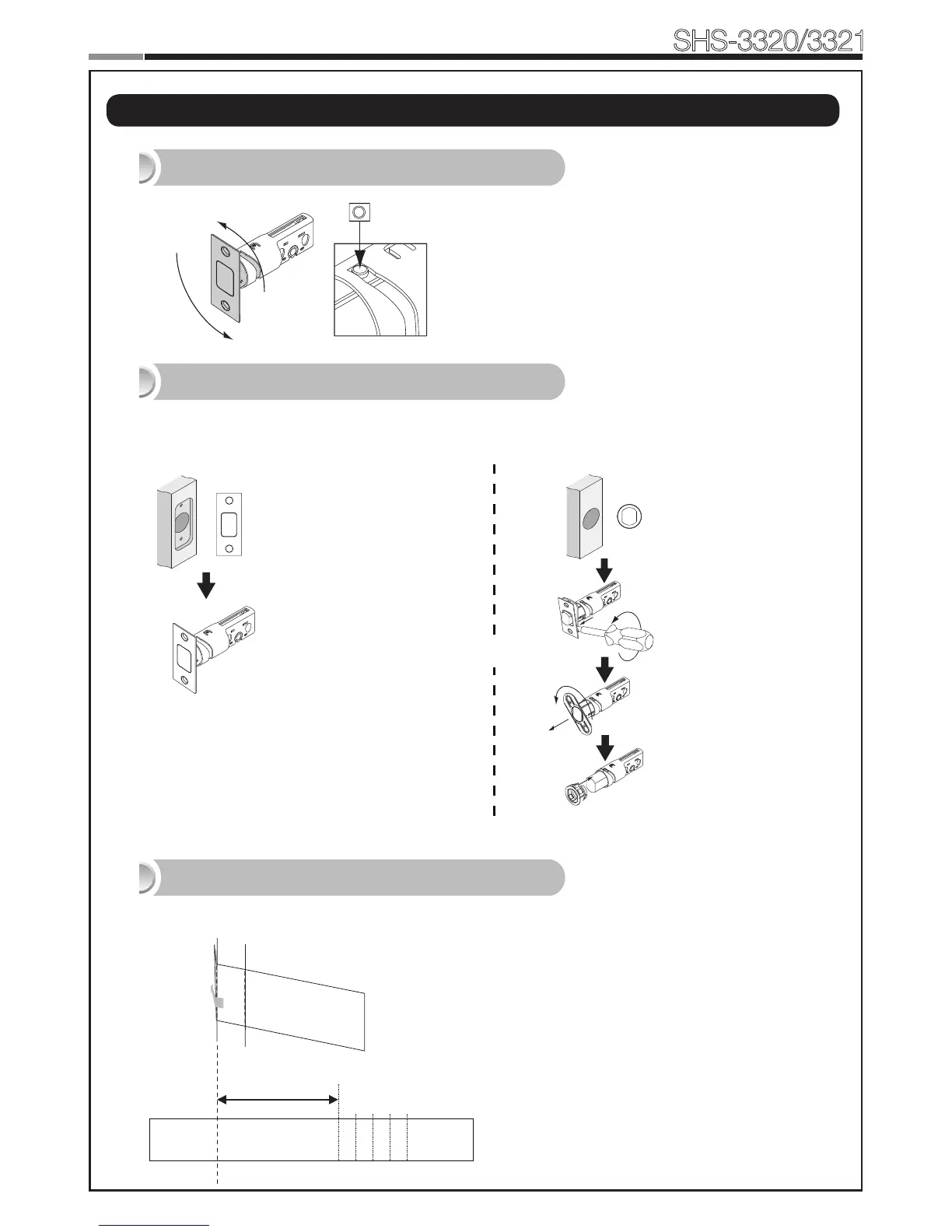

1. Adjusting the length of the dead bolt
180°
Turn the body of the dead bolt to adjust the length
of the dead bolt.
It can be 60mm (2-3/8”) or 70mm (2-3/4”)
OR
Rectangle Strike hole
:Noneedtochange.
2. Changing the faceplate of the dead bolt
Change the faceplate of the dead bolt following the size of a strike hole.
Round Strike hole
1. Remove the strike
faceplate with a
screw driver.
2. Turn the inner
faceplate to take
out it.
3. Insert the round
faceplate.
OR
OR
3. Adjusting the length of the tailpiece
• Tailpiece drawing
How to cut
1. Press the V-cut line with pincers to make
more cut line.
2. Hold the end of the tailpiece with pincers.
3. Bend it up and down until it is separated.
- For more information, refer to page 31.
40 45 50 5535
35mm
