Samsung SHS-3321 - Door Preparation: Drilling and Strike Plate Installation; Drilling Holes in the Door; Installing the Strike Plate

4
5
Smart
Door Lock
SHS-3320/3321

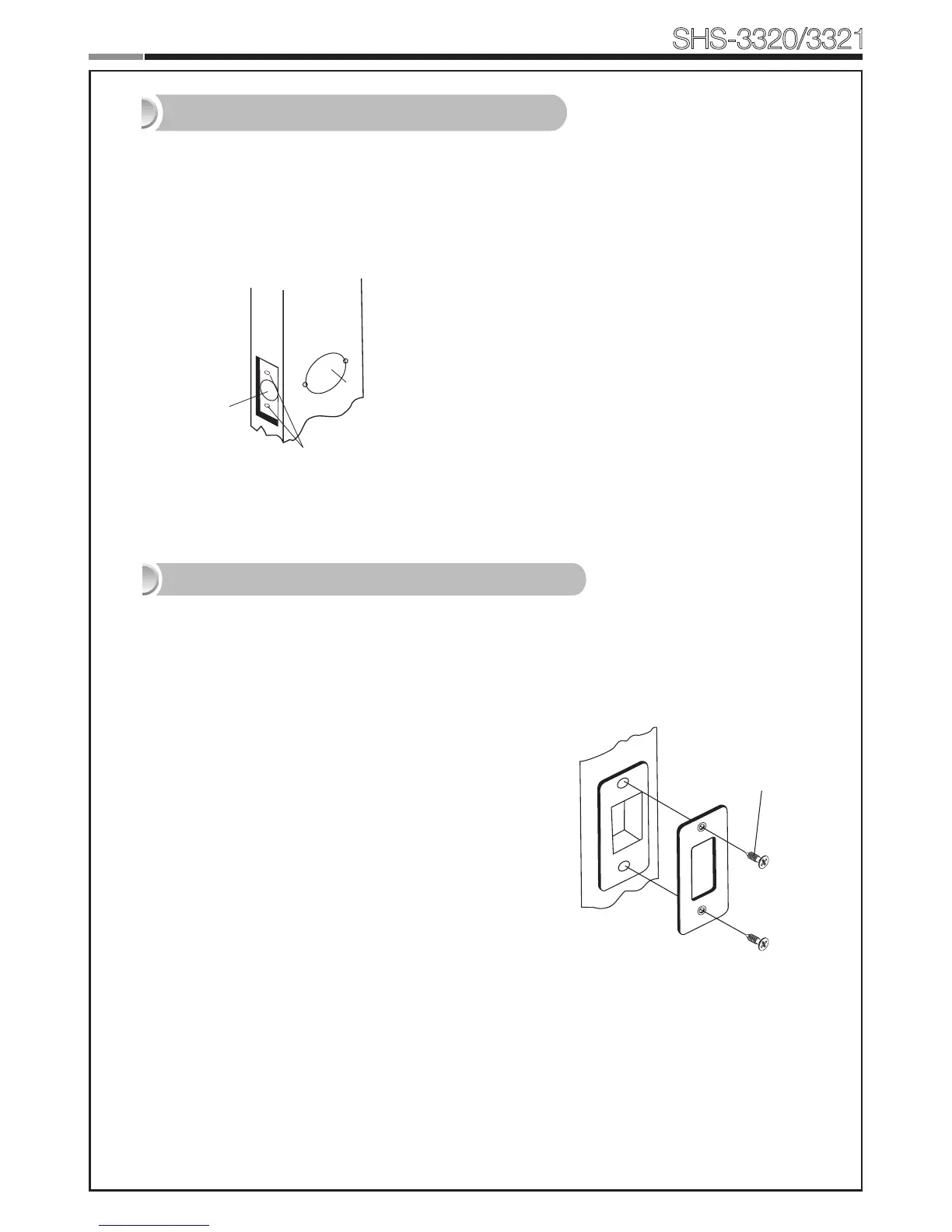

1)Drilla2-1/8˝(54mm)diameterholethroughthedoor,asindicatedon
the template, using a hole saw.
2)Drilla1˝(25mm)mortiseholeusingaholesaw.
3) Drill strike plate holes using a drill bit (1/8˝,2.5mm).
1) Using the template, locate the center horizontal
line for the deadbolt hole, which lines up with the
centerofthe2-1/8˝hole,anddrawahorizontalline
on the door frame to mark where you will make the
deadbolt mortise hole.
2) Measure half the thickness of the door. Now,
measure that distance from where the door stops
at the frame when the door is closed toward the
door jamb and mark a straight, vertical line the
length of the door strike plate. Draw a horizontal
line from the mark you made in Step 1 toward the
verticalline.Wherebothlinescross,makea1˝(25
mm)diameterhole,1/2˝(13mm)indepth.
3) Align the holes of the strike plate with the vertical
line. Trace the outline of the strike plate and
mortisewitha1/16˝(1.6mm)indentation.Attach
the strike plate with the 2 screws provided.
Step 3. Drilling
Step 4. Strike Plate Installation
FH+ T4 x 19
① 54mm
② 25mm
③
2.5mm
