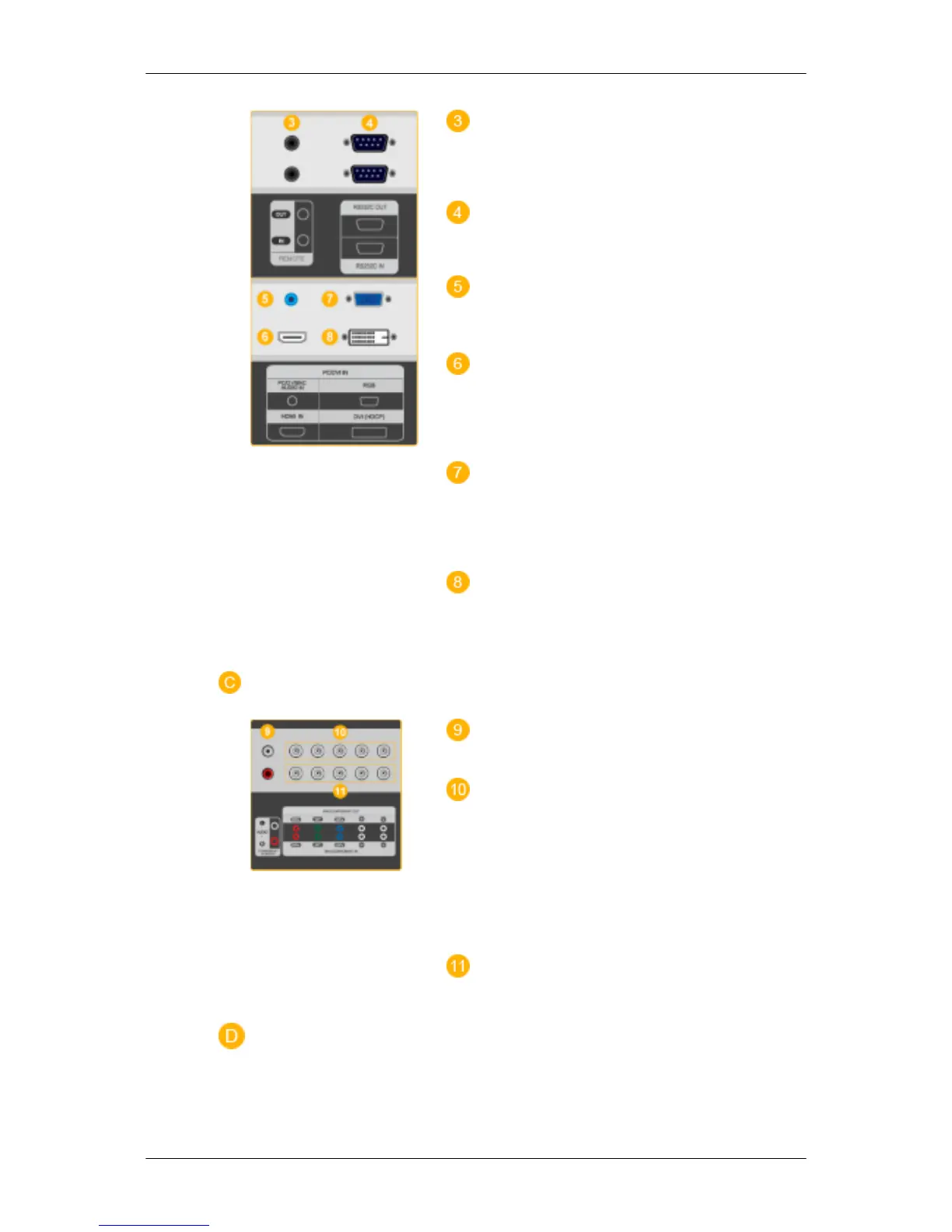

REMOTE OUT/IN
You can use a wired remote control by connecting
it to your LCD Display.
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [PC/DVI/BNC AUDIO
IN] (PC/DVI/BNC/HDMI Audio Connection Ter-
minal (Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your
LCD Display to the HDMI terminal of your dig-
ital output device using a HDMI cable.
DVI / PC / HDMI IN [RGB](PC Video Con-
nection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC mode
(Analog PC)
DVI / PC / HDMI IN [DVI(HDCP)] (PC
Video Connection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
COMPONENT AUDIO IN [L-AUDIO-R]
(Component Audio Connection Terminal (Input))
BNC/COMPONENT OUT [R/PR, G/Y, B/
PB, H, V] (BNC/Component Connection Termi-
nal (Output))
BNC (Analog PC) Connection: connecting the R,
G, B, H, V ports
Component Connection: connecting the PR, Y,
PB ports
BNC/COMPONENT IN [R/PR, G/Y, B/PB,
H, V](BNC/Component Connection Terminal
(Input))
