Installing the Product 2-8

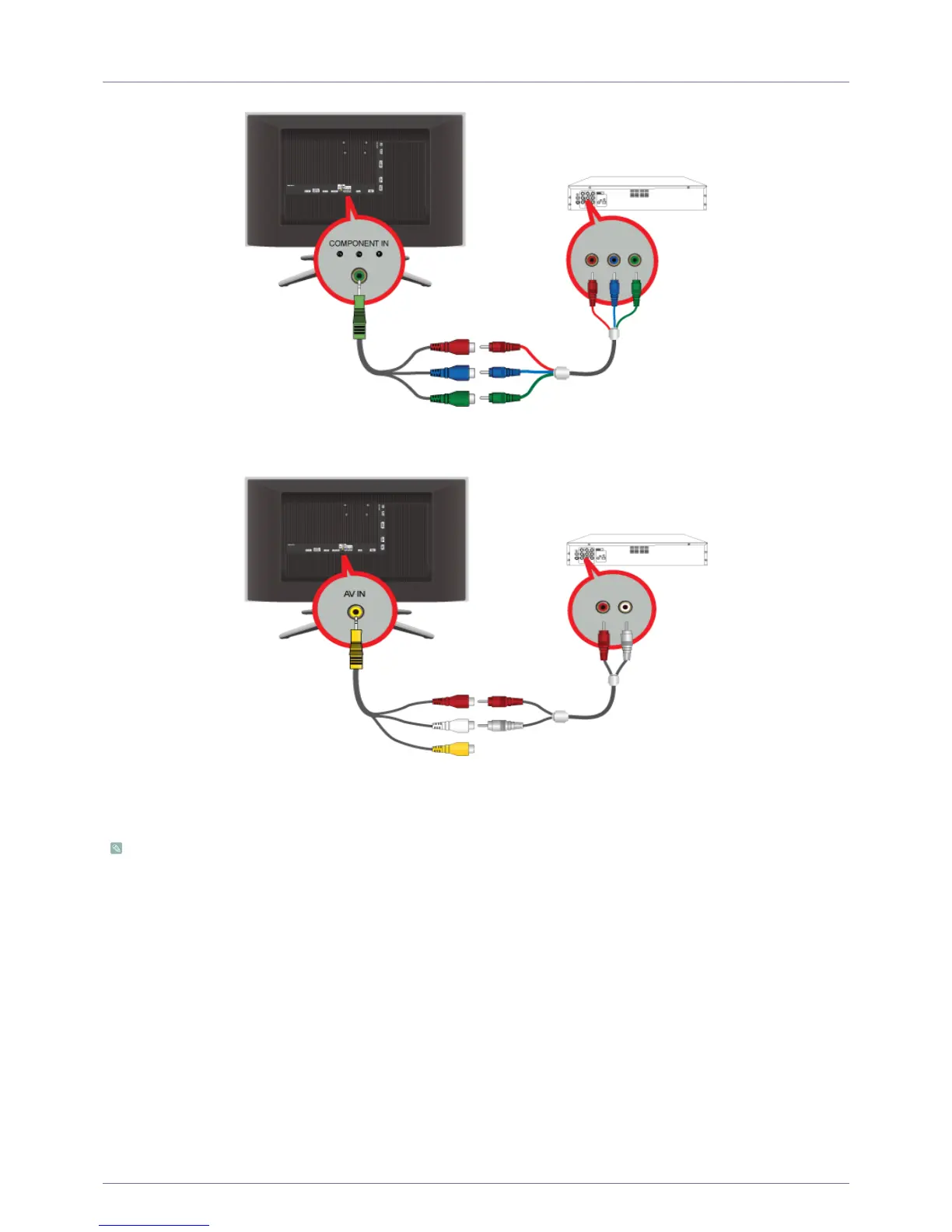

2-8 Connecting a Component cable
1. Connect the component adapter to [COMPONENT IN] on the rear of the product.
2. Connect the component cable to the corresponding matching colours on the component adapter and AV device.
3. Connect the audio adapter to [AV IN] on the rear of the product.
4. Connect the audio cable to the corresponding matching colours on the audio adapter and AV device.
5. Press the [SOURCE] button at the front of the product or on the remote control to select the <Component> mode.
For an explanation of Component video, consult your DVD/VCR/Cable/Satellite box manual.
