Programming
Point mapping assigns point commands and status points in the order required for a
specic SCADA system. See Figure 13.
In the point list, the left column sets the index position of the selected point dening the
order in which the points are returned to SCADA. For a detailed description of the DNP
point in your control, refer to the appropriate S&C instruction sheet on sandc.com. The
DNP Points List instruction sheets have the prex 1045-560.
SCADA Point Mapping

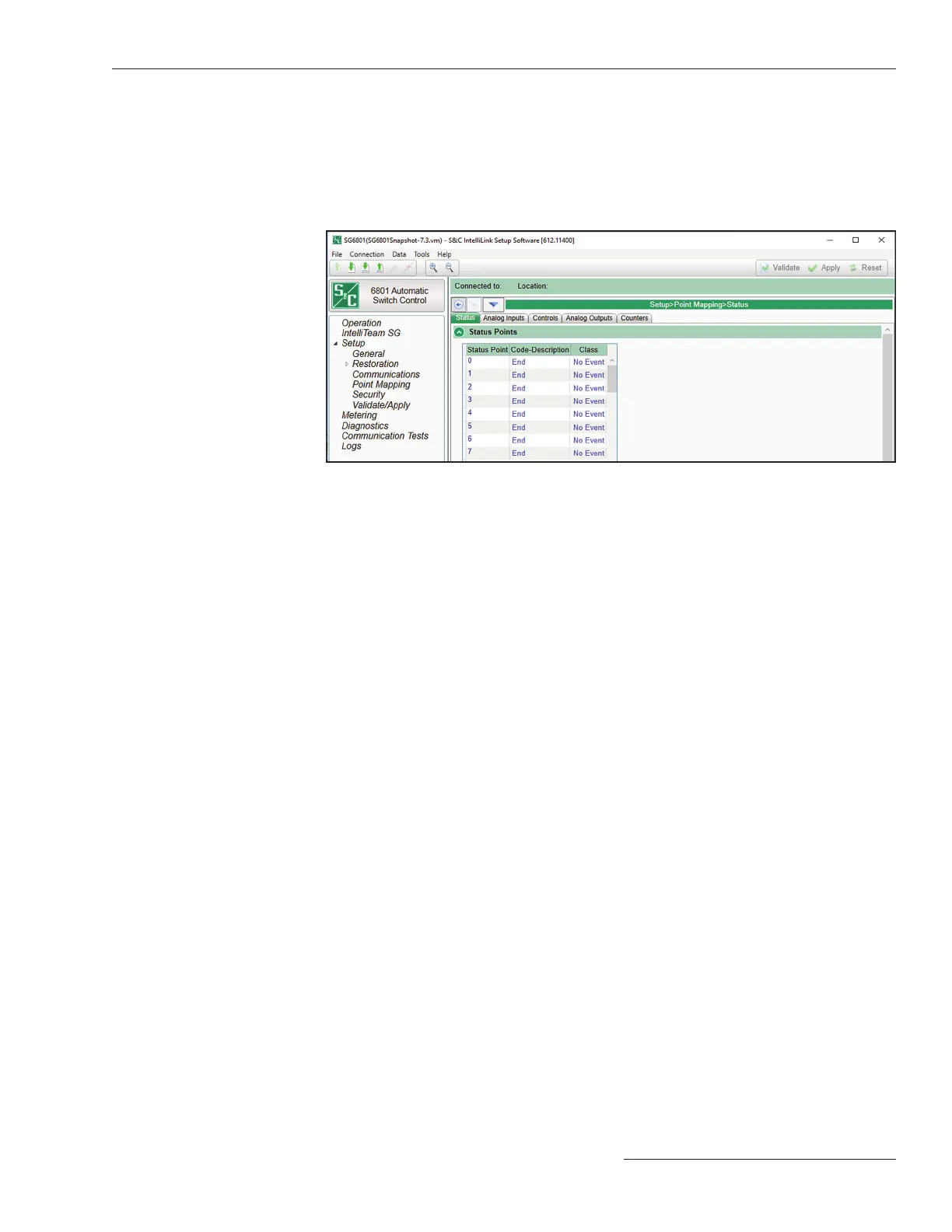

Figure 13. The Setup>Point Mapping>Status screen.
S&C Instruction Sheet 1045-511 17
