Software Screen
Features
IntelliLink software screens have a tool bar across the top, a navigation tree on the left
and status screens in the center. The communication status is displayed along the bottom.
There are many tabs and data elds on speci c screens. This guide introduces a small
amount of the functionality needed to con gure the control. See Figure 4. Instruction
Sheet 1045- 530 has comprehensive information about every software screen.
Switch Control Con guration

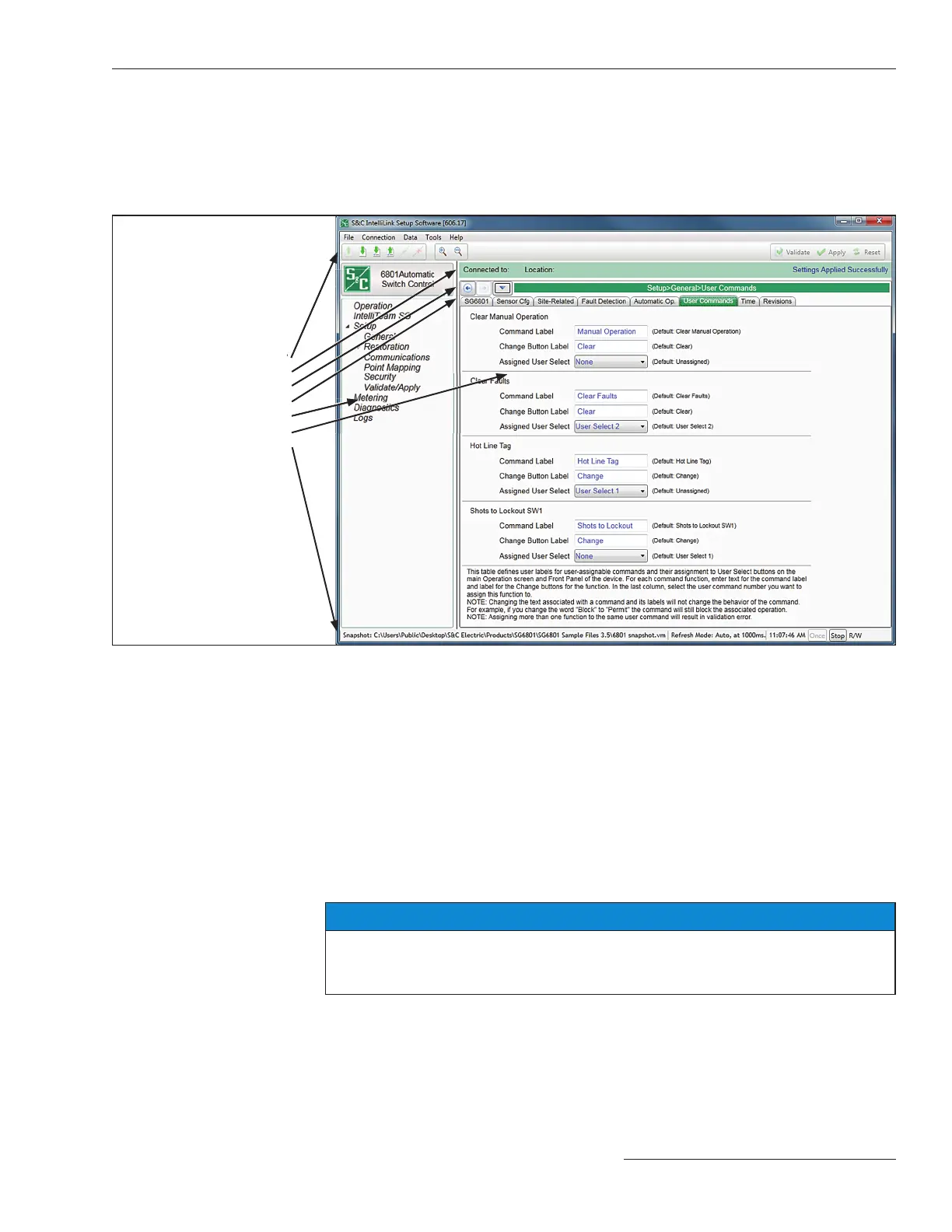

Figure 4. IntelliLink software navigation features.
Tool bar
Status bar
Navigation tools
Sub-screen selection tabs
Navigation tree
Screen area
Communication status
Validate/Apply Screen
The Validate/Apply screen is where con guration changes are validated and applied.
See Figure 5 on page 10.
The Validate button evaluates settings in the buffer memory without applying them.
When changes are pending, click on the Validate button to initiate a logical check of the
pending changes for errors. If the procedure detects an error or inconsistency, it will be
displayed in the Validation Result field.
The Apply button evaluates settings in the buffer memory and applies them. When
changes are pending, click on the Apply button to initiate a logical check of the pending
changes for errors and commit the changes to control memory if no errors are detected.
A successful check will be indicated in the Validation Result field.
NOTICE
The Reset Buffer button does not undo a previously applied command. Instead,
the button resets the settings in buffer memory to the presently active values in the
control.
S&C Instruction Sheet 1045-511 9
