A2-5

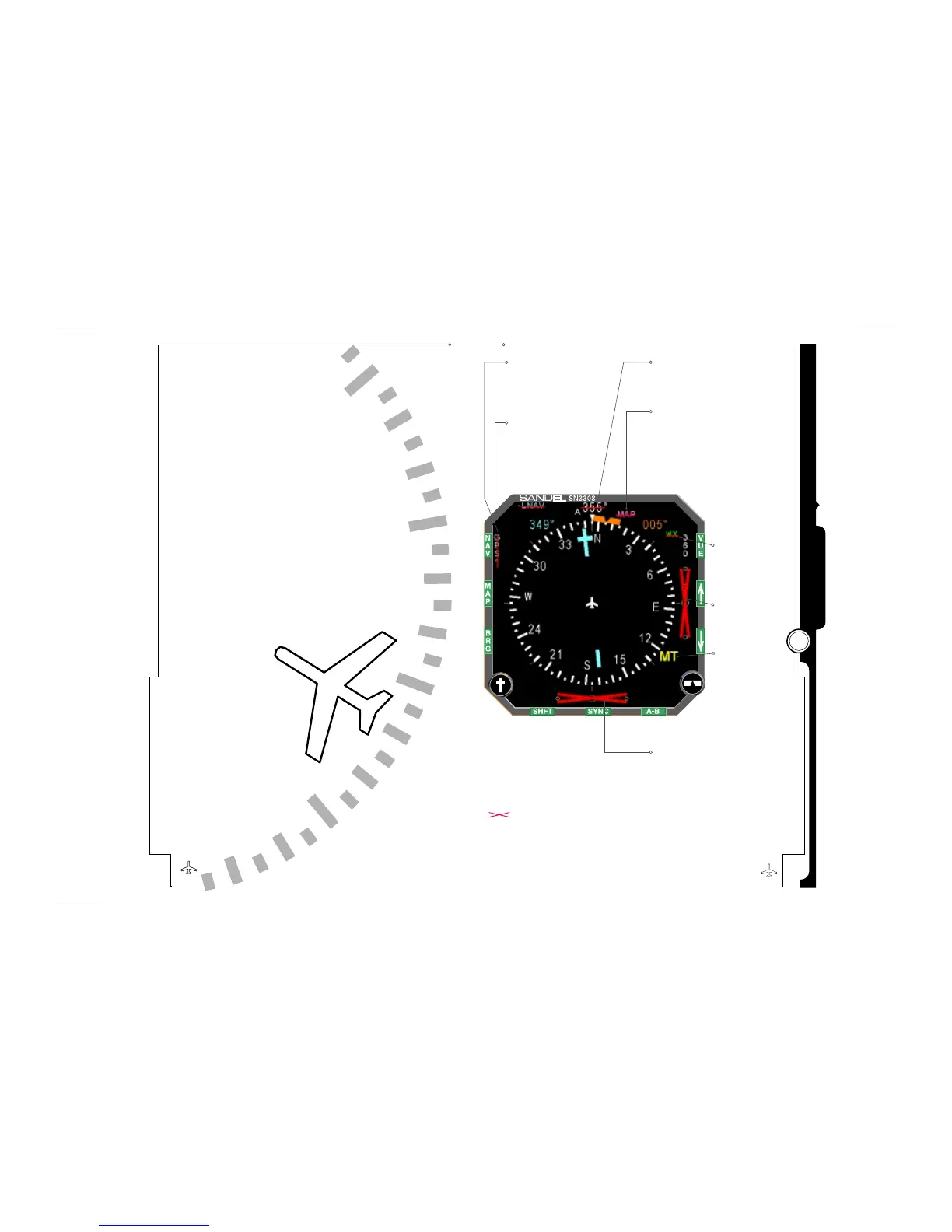

ILLUSTRATION 5 – Flags

Redlined NAV Source –

Failure of

Switching Relay

Associated with Source

Redlined LNAV* –

Loss of Data

Communication

with GPS/loran Receiver

Redlined Heading –

Fast Slave Mode

Compass Not Stabilized

MAP Flag –

Loss of Map Due to

Failure of LNAV Source

NAV/Lateral Deviation

Redlined WX –

Loss of Data

Communication

From WX-500

Glideslope/

Vertical

Deviation Flag

Marker Test

* Invalid data from the GPS

receiver is indicated by

LNAV
