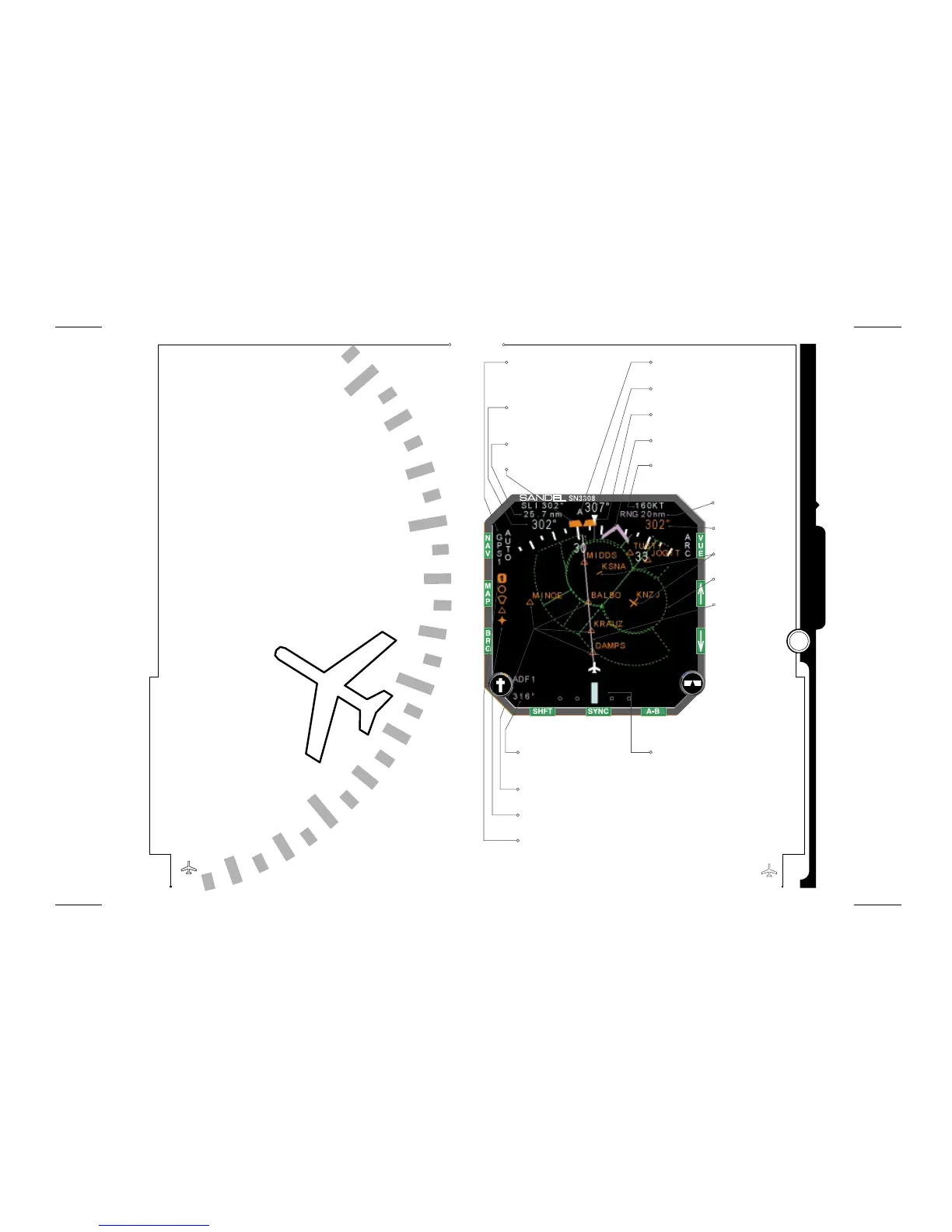

Sandel SN3308 - ARC View with Map Illustration

A2-4
A
R
C
M
O
D
Current NAV Source
(AUTO Indicates 6PS
in Auto-Sequence Mode)
Current Waypoint,
Bearing & Distance
Selected Course
Heading Bug
Current A-B Memory
Current Heading
Lubber Line
Bearing Pointer 1
Groundspeed
Bearing Pointer 1
Source & Bearing
Intersections
Map Status Bar
Current Map Memory
CDI/Lateral Deviation
Map Range
Selected Heading
Airport Runways
Class C Airspace
Courseline
ILLUSTRATION 4 – ARC View with Map
