S&P CADB/T-HE PRO-REG Series User Manual

26
ENGLISH

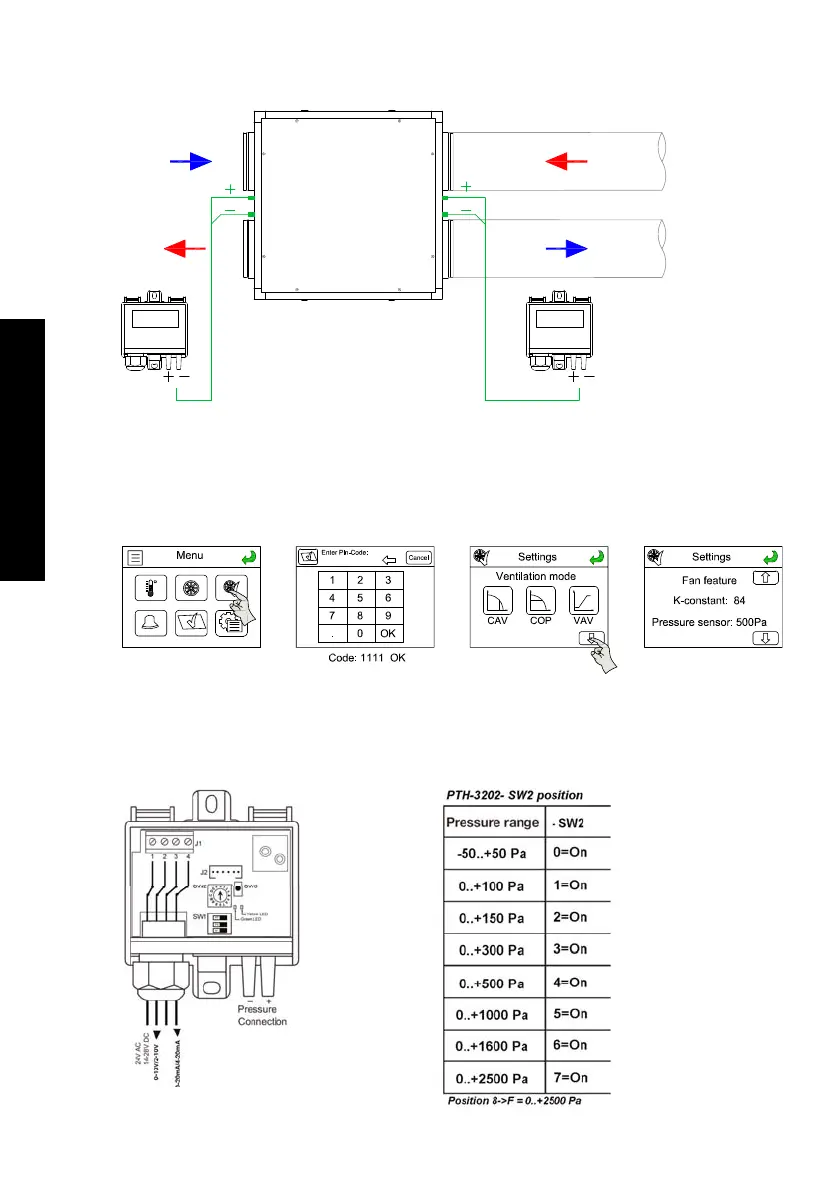

pressure + and low pressure - existing in the pressure transmitters of heat recovery and other
transmitters, ensuring that connect + to + and - to -.
EXTRACTION
DUCTS SYSTEM
(used air)
SUPPLY
DUCTS SYSTEM
(fresh air)
Sensor confi guration
Make sure the measuring range of the pressure transducer corresponds to the set value in the
pressure sensor.
To visualize correctly the airlfl ow, it is necessary that the pressure sensors (accessories) were
confi gured with the same range that the one defi ned in the PRO-REG controller.
• Modifi cation of the pressure range in the TDP-D sensor.
• Modifi cation of the pressure range in the TDP-S sensor.
The range is set with the SW2 dial and 8 different values can be set from -50 / + 50Pa to 0-2500 Pa.
