Sandpiper ST1 User Manual

st1dl5sm-rev0717
www.sa n dpiper p ump.co m
3 • Model ST1/ST25
ST1 & ST25 Containment Duty
Dimensions are ±1/8". Figures in parentheses = millimeters.
8.56
217
9.75
248
8.57
218
15.50
394
14.26
362
4.61
117
12.52
318
7.12
181
4.10
104
5.54
141
14.60
371
8.82
224
9.00
229
10.19
259
.72
18
6.89
175
DISCHARGE PORT
1" NPT (ST1)
1" BSPT (ST25)
SUCTION PORT
1" NPT (ST1)
1" BSPT (ST25)
9.00
229
8.56
217
4X
.28
7
MOUNTING HOLE
NOTE:
UNIT FURNISHED WITH SUB-BASE PLATE
AND RUBBER FEET AS STANDARD FOR
STATIONARY BOLT DOWN USE, RUBBER
FEET CAN BE REMOVED

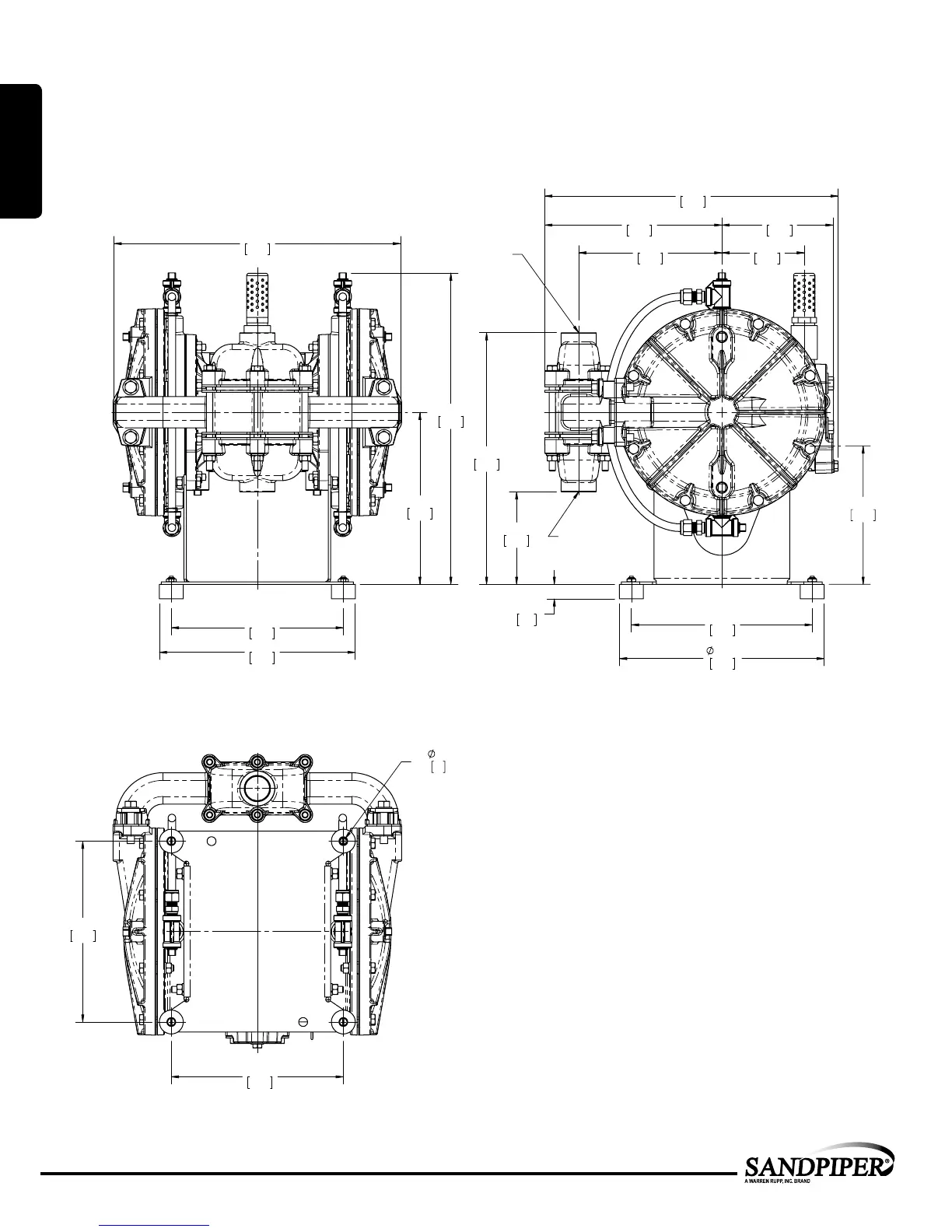

Dimensional Drawings
MODEL SPECIFIC
1: PUMP SPECS

Sandpiper ST1 Specifications

General

Brand	Sandpiper
Model	ST1
Category	Water Pump
Language	English
