Connections
Connecting the Speakers
Connect the speaker cables at the back of the speakers to the SPEAKER OUTPUT (L/R)
Sockets at the rear of the unit.
Position the speakers. Connect the left speaker to the socket marked ‘L’ and the right
speaker to the socket marked ’R‘.

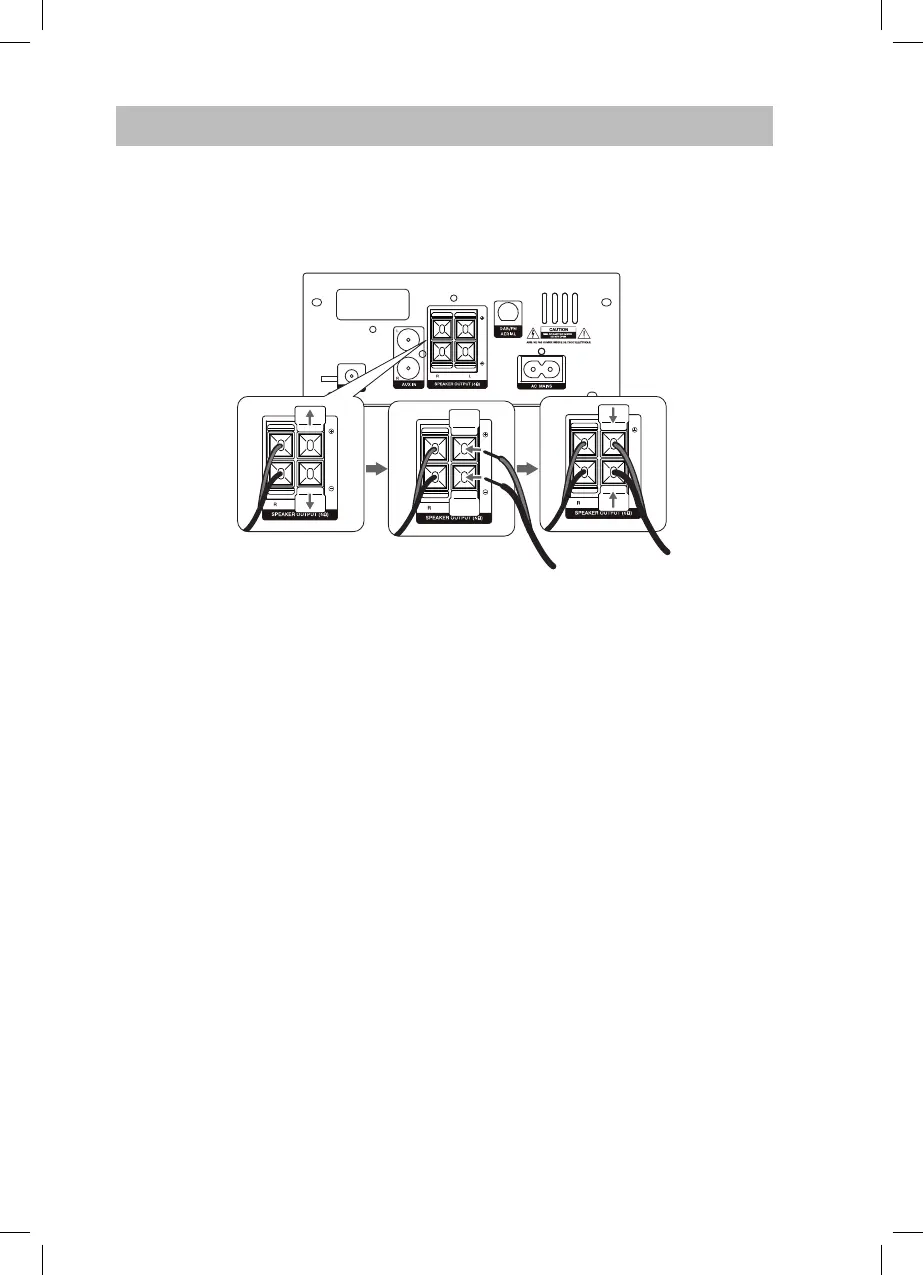

1. Open socket levers by pressing up on the top (red) lever and down on the bottom
(black) lever.
2. Insert the bare (uncoated) ends of the speaker wires into the sockets, ensuring that the
red striped wire goes into the red socket.
3. Secure wires in place by pressing down on the top lever and up on the bottom lever.
4. Repeat process for other speaker.
MP3-LINK
1.
2.
3.
