Information Shown on the Screen

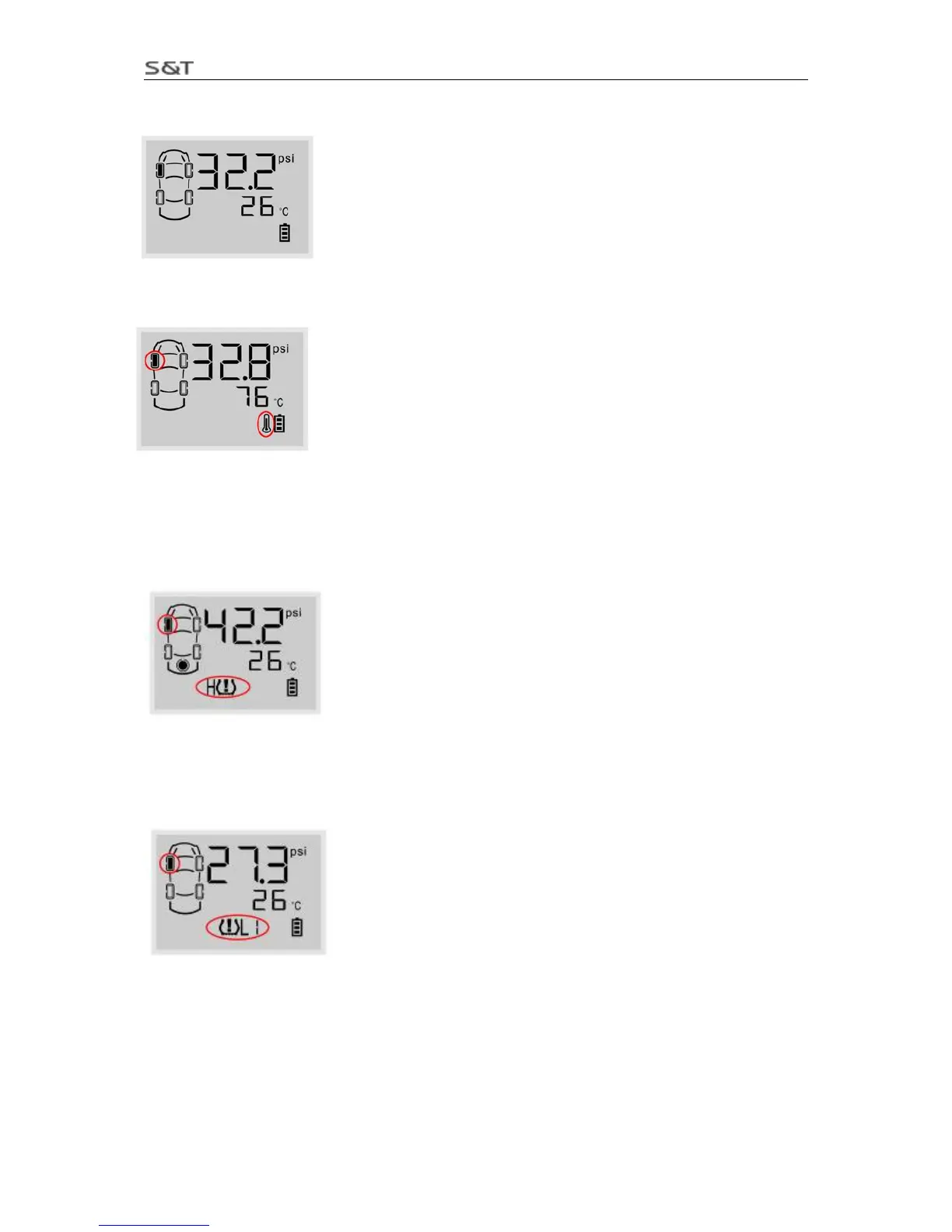

When the monitor is turned on, the screen displays the latest received
information, as shown in below figure (for front left tire, the pressure is 32.2
psi and the temperature is 26℃).
High Temperature Alarm
Function: The system will issue a High Temperature Alarm when the tire
temperature exceeds 75℃.
Alarm mode: The alarm light, LCD background light, high temperature
warning icon and the audible alarm turn on together.
Treatment: Press any key to stop the audible alarm or the audible alarm will automatically stop 30 seconds
later. The red alarm light remains on and the display reverts to the normal mode. The red alarm light goes
off only when the tire pressure returns to the standard level.
High Pressure Alarm
Function: The system will issue a high pressure alarm when the tire
pressure is 25% higher than the standard.
Alarm mode: The alarm light, LCD background light, high pressure
warning icon and the audible alarm turn on together.
Treatment: Press any key to stop the audible alarm or the audible alarm will
automatically stop 30 seconds later. The red alarm light remains on and the display reverts to the normal
mode. The red alarm light goes off only when the tire pressure returns to the standard level.
Low Pressure Level 1 Alarm
Function: The system will issue a low pressure level 1 alarm when the
tire pressure is 12.5% lower than the standard.
Alarm mode: The alarm light, LCD background light, low pressure level
1 warning icon and the audible alarm turn on together.
Treatment: Press any key to stop the audible alarm or the audible alarm will automatically stop 30 seconds
later. The red alarm light remains on and the display reverts to the normal mode. The red alarm light will
automatically turn off when the tire pressure returns to the standard level.
