TPMS1209C01 User Manual
Page 8 of 23

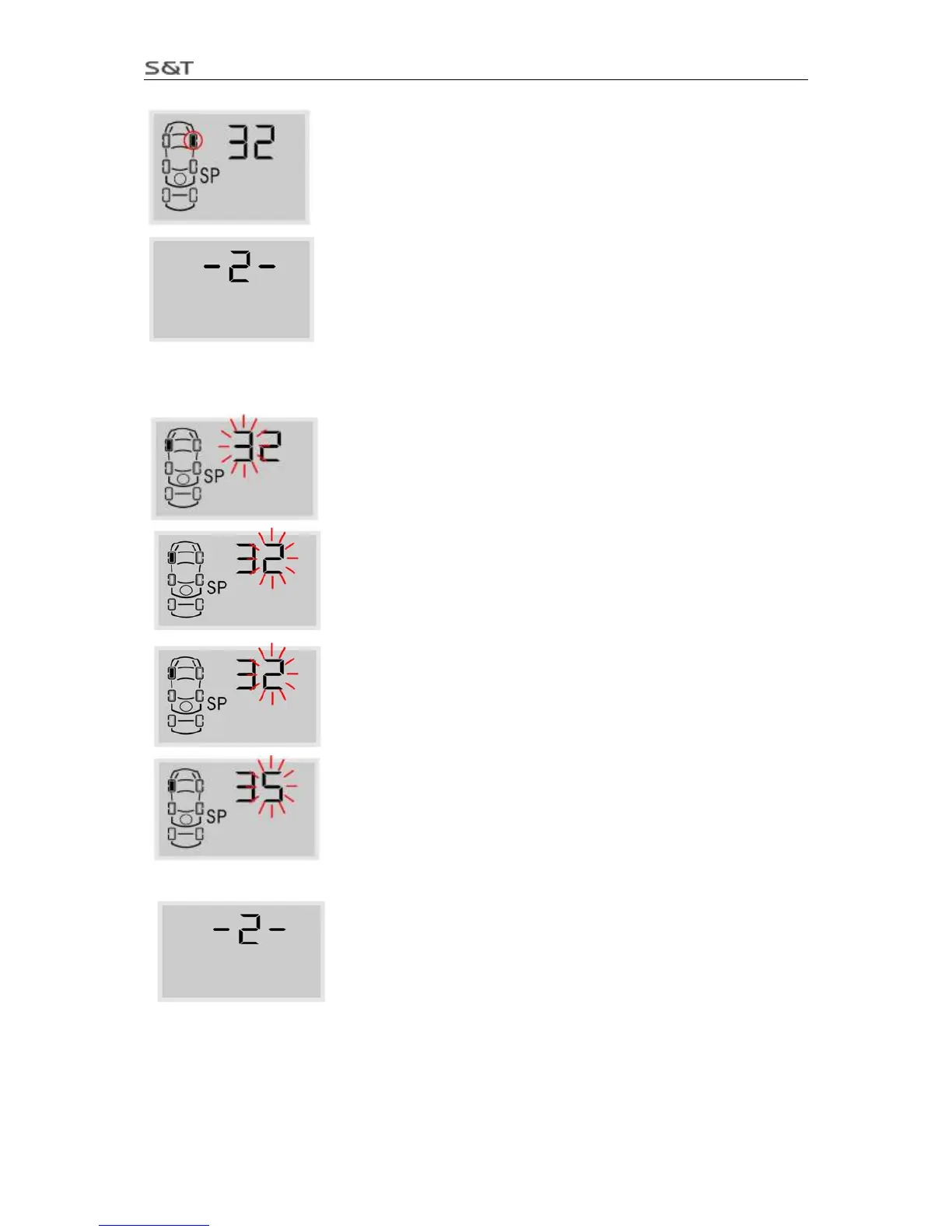

Press S key to check each tires’ standard pressure in turn.
Under any inquiry interface, press S key for 3 seconds to return to the index
interface 2.
Standard Pressure Programming
Under the standard pressure inquiry interface, press E key for 3 seconds to
enter the standard pressure programming interface, and the first digit starts
to flash.
Press E key to switch to the next digit to program and the second digit
flashes.
Press S key to adjust the value.
After programmed the standard pressure, press E key for 3 seconds to save,
two beep are provided and screen flashes twice, then returns to the standard
pressure inquiry interface.
During the process of adjusting the standard pressure, pressing the S key
for a few seconds will return to the index interface 2 and will exit and the
adjusted value will not be saved.
The maximum standard pressure value for all tires is as below:
480 Kpa
4.8 Bar
70 Psi
