TPMS1209C01 User Manual
Page 3 of 23

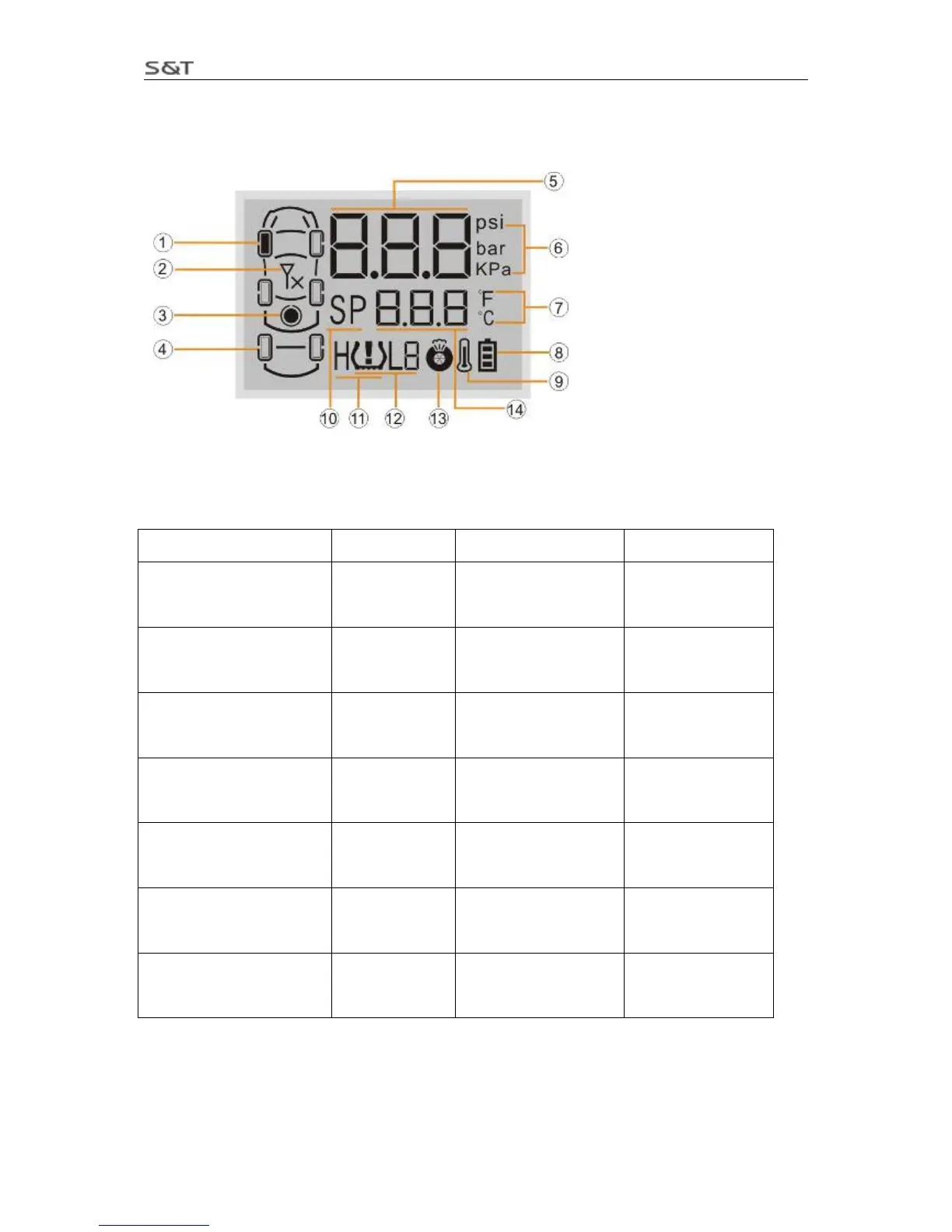

Screen Display
No. Meaning No. Meaning
⑴ Tire position Icon Current tire
information
(8) Battery Power
Icon
Battery power
indication
⑵ Transmitter Trouble Icon Transmitter
trouble
⑼ High Temperature
Alarm Icon
High temperature
alarm
⑶ Spare Tire Icon Spare tire
position
(10) Standard
Pressure Icon
Standard pressure
⑷ Trailer Icon Trailer tire
position
(11) High Pressure
Alarm Icon
High pressure
alarm
(5) Pressure Pressure value (12) Low Pressure
Icon
Low pressure
alarm and level
(6) Pressure Unit Pressure unit,
bar/Kpa/ psi
(13) Fast Leak Icon Fast leak alarm
(7) Temperature Unit Temperature
unit, /℃℉
(14) Temperature
value
Temperature
