| 59002Z/49002/39002Z

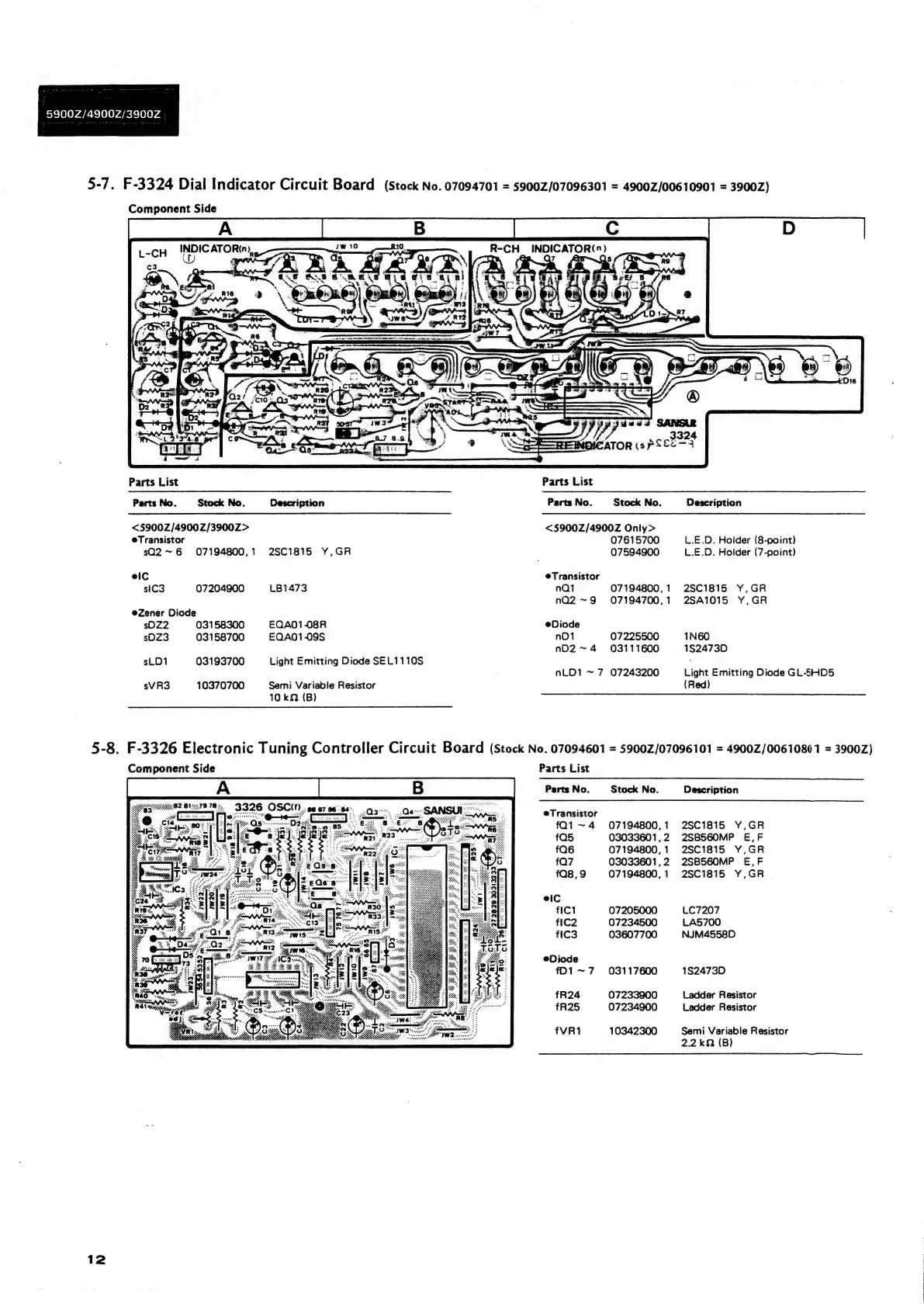

5-7. F-3324 Dial Indicator Circuit Board (Stock No. 07094701 = 5900Z/07096301 = 4900Z/00610901 = 3900Z)
Component Side
OR
o
INDIC AT
<9)
Le JY 3324
——REINDICATOR (sp Soe -4
Parts List Parts List
Parts No. Stock No. Description Parts No. Stock No. Description
<5900Z/4900Z/3900Z> <5900Z/4900Z Only>
eTransistor 07615700 L.E.D. Holder (8-point)
sQ2~6 07194800,1 2SC1815 Y,GR 07594900 L.E.D. Holder (7-point)
eiC eTransistor
siC3 07204900 LB1473 nai 07194800,1 2SC1815 Y,GR
nQ2~9 0O7194700,1 2SA1015 Y,GR
eZener Diode
sDZ2 03158300 EQA01-08R eDiode
sDZ3 03158700 EQA01-09S nO1 07225500 1N60
nD2~4 03111600 1$2473D0
sLD1 03193700 Light Emitting Diode SEL1110S
nLD1 ~ 7 07243200 Light Emitting Diode GL-5HD5
sVR3 10370700 Semi Variable Resistor (Red)
10 kQ (B)
5-8. F-3326 Electronic Tuning Controller Circuit Board (Stock No. 07094601 = 5900Z/07096101 = 4900Z/00610801 = 3900Z)
12
Component Side Parts List
Parts No. Stock No. Description
‘ fQ5 03033601,2 2SBS5S60MP E,F
fQO6 07194800,1 2SC1815 Y,GR
fQ7 03033601,2 2SB560MP E,F
fQ8,9 07194800,1 2SC1815 Y,GR .
eiC
fiC1 07205000 LC7207
fiC2 07234500 ~LA5700
fIC3 03607700 NJM4558D
eDiode
fD1~7 03117600 1$2473D
fR24 07233900 Ladder Resistor
fR25 07234900 Ladder Resistor
fVR1 10342300 Semi Variable Resistor
2.2 kQ (B)
