Sansui 5900Z - Page 15

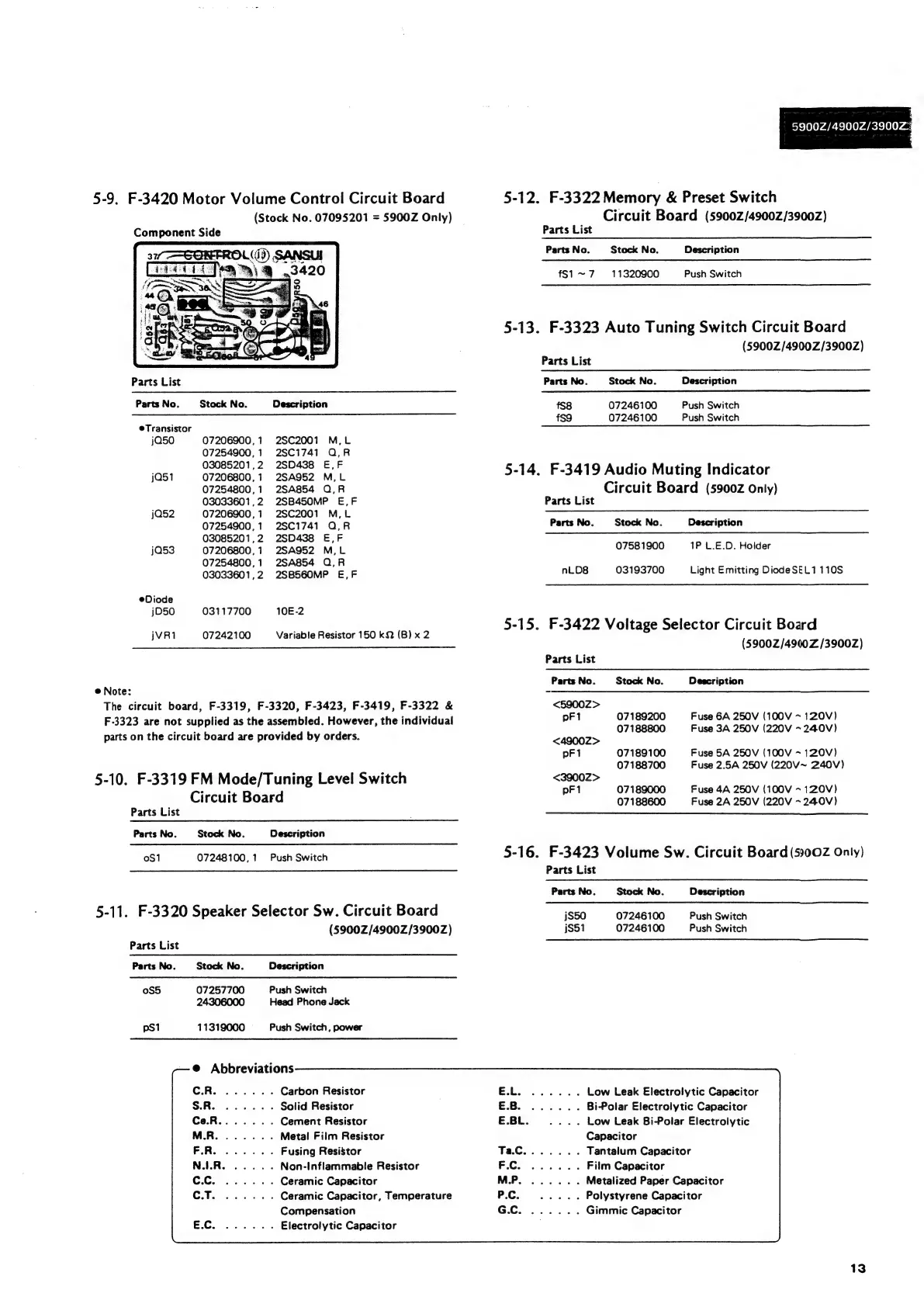

5-9. F-3420 Motor Volume Control Circuit Board
(Stock No. 07095201 = 5900Z Only)
Component Side
Parts List
Parts No. Stock No. Description
Transistor
jQ50 07206900,1 2SC2001 M,L
07254900,1 2SC1741 Q,R
03085201,2 2SD438 E,F
jQ51 07206800,1 2SA952 M,L
07254800,1 2SA854 Q,R
03033601,2 2SB4S5OMP E,F
jQ52 07206900,1 2SC2001 M,L
07254900,1 2SC1741 Q,R
03085201,2 2SD438 E,F
jQ53 07206800,1 2SA952 M,L
07254800,1 2SA854 Q,R
03033601,2 2SB560MP E,F
eDiode
jD50 03117700 10E-2
jVR1 07242100 Variable Resistor 150 kQ (B) x 2
@ Note:
The circuit board, F-3319, F-3320, F-3423, F-3419, F-3322 &
F-3323 are not supplied as the assembled. However, the individual
parts on the circuit board are provided by orders.
5-10. F-3319 FM Mode/Tuning Level Switch
Circuit Board
Parts List
Parts No. Stock No. Description
oS1 07248100,1 Push Switch
5-11. F-3320 Speaker Selector Sw. Circuit Board
(5900Z/4900Z/3900Z)
Parts List
Parts No. Stock No. Description
oS$5 07257700 Push Switch
24306000 Head Phone Jack
pS1 11319000 Push Switch, power
@ Abbreviations
C.R. ...... Carbon Resistor
Pa a err Solid Resistor
Ca.R....... Cement Resistor
M.R. ...... Metal Film Resistor
F.R. ...... Fusing Resistor
N.I.R. ..... Non-inflammable Resistor
CG is 5. GS Ceramic Capacitor
CV .. .3 53.40% Ceramic Capacitor, Temperature
Compensation
BG. ved ess Electrolytic Capacitor
5900Z/4900Z/3900Z
5-12. F-3322 Memory & Preset Switch
Parts List
Parts No.
fS1~7
Stock No.
11320900
Circuit Board (5900Z/4900Z/3900Z)
Description
Push Switch
5-13. F-3323 Auto Tuning Switch Circuit Board
(5900Z/4900Z/ 3900Z)
Parts List
Parts No. Stock No. Description
$8 07246100 Push Switch
fS9 07246100 Push Switch
5-14. F-3419 Audio Muting Indicator
Parts List
Parts No.
nLD8
Stock No.
07581900
03193700
Circuit Board (5900Z Only)
Description
1P L.E.D. Holder
Light Emitting Diode SEL1110S
5-15. F-3422 Voltage Selector Circuit Board
Parts List
Parts No.
<5900Z>
pF1
<4900Z>
pF 1
<3900Z>
pF 1
Stock No.
07189200
07188800
07189100
07188700
07189000
07188600
(5900Z/4900Z/3900Z)
Description
Fuse 6A 250V (100V ~ 120V)
Fuse 3A 250V (220V ~240V)
Fuse 5A 250V (100V ~ 120V)
Fuse 2.5A 250V (220V~ 240V)
Fuse 4A 250V (100V ~ 120V)
Fuse 2A 250V (220V ~240V)
5-16. F-3423 Volume Sw. Circuit Board (5900Z Only)
Parts List
Parts No. Stock No. Description
jS50 07246100 Push Switch
js51 07246100 Push Switch
Bb. <4 sk Low Leak Electrolytic Capacitor
CBs. one Os Bi-Polar Electrolytic Capacitor
E.BL. .... Low Leak Bi-Polar Electrolytic
Capacitor
Eg} oer re Tantalum Capacitor
OC 38 a os Film Capacitor
M.P. ...... Metalized Paper Capacitor
PCr. bop 4-5 Polystyrene Capacitor
G.C. ..... .. Gimmic Capacitor
13
