59002/49002Z/3900Z

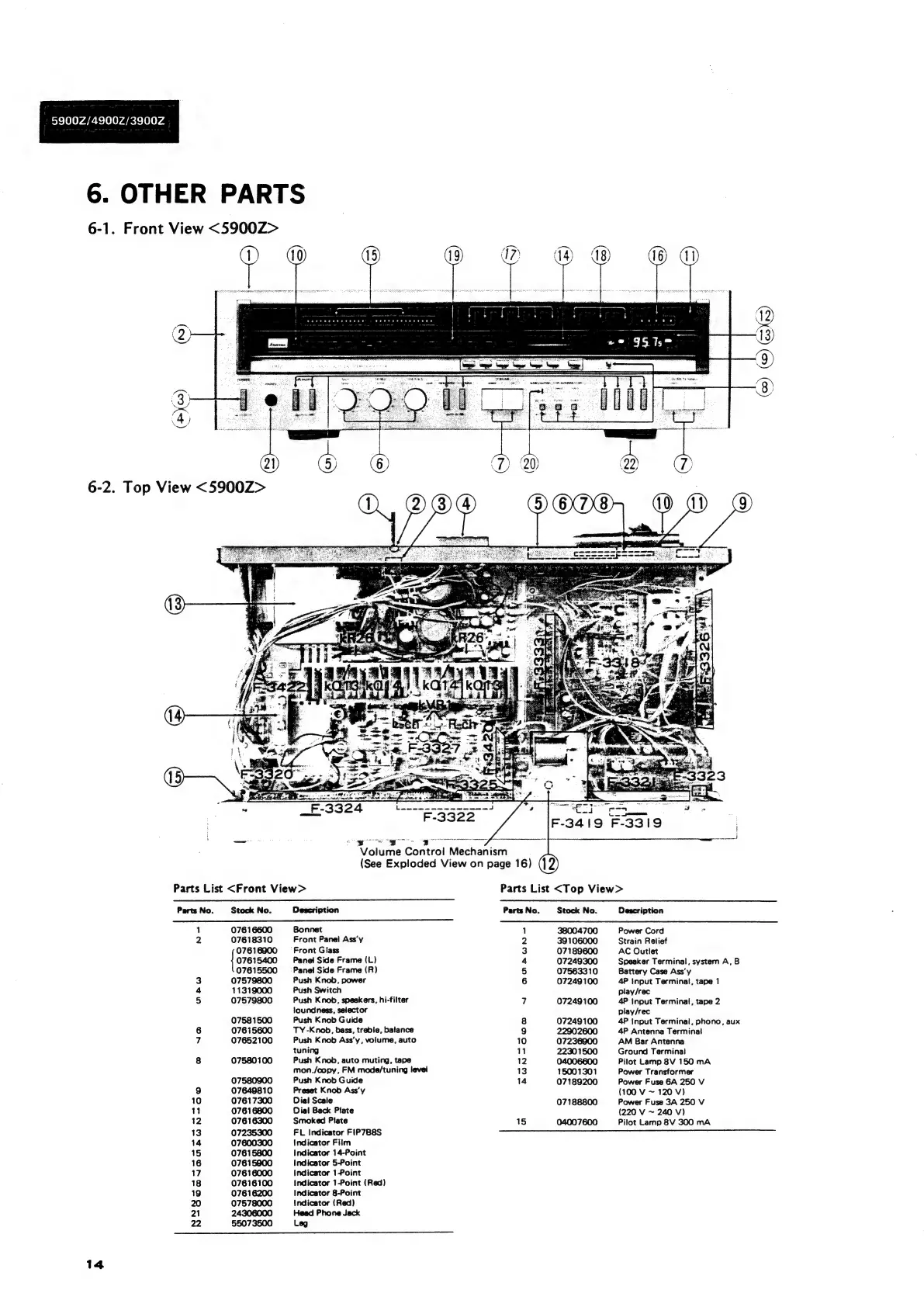

6. OTHER PARTS
6-1. Front View <5900Z>
6-2. Top View <5900Z>
: . : Re = E-33 on fo ES: — Sy eS pare aa : ; a
PGES F-3419 F-3319 :
ible teat ecties. angen ogee lead te ae Giaegeceated
yg te gee ogy
Volume Control Mechanism
(See Exploded View on page 16) 42)
Parts List <Front View> Parts List <Top View>
Parts No. Stock No. Description Parts No. Stock No. Description
1 07616600 Bonnet 1 38004700 Power Cord
2 07618310 Front Panel Ass’y 2 39 106000 Strain Relief
07616900 _ _—s— Front Glass 3 07189600 AC Outlet
{ 07615400 Panel Side Frame (L) 4 07249300 Speaker Terminal, system A, B
07615500 _ _—=s— Panel Side Frame (R) 5 07563310 Battery Case Ass‘y
3 07579800 Push Knob, power 6 07249100 4P Input Terminal, tape 1
4 11319000 Push Switch play/rec
5 07579800 Push Knob, speakers, hi-filter 7 07249100 4P input Terminal, tape 2
loundness, selector play/rec
07581500 Push Knob Guide 8 07249100 4P {nput Terminal, phono, aux
6 07615600 TY -Knob, bass, treble, balance 9 22902600 4P Antenna Terminal
7 07652100 Push Knob Ass’y, volume, auto 10 07236900 AM Bar Antenna
tuning 11 22301500 Ground Terminal
8 07580100 Push Knob, auto muting, tape 12 04006600 Pilot Lamp 8V 150 mA
mon./copy, FM mode/tuning level 13 15001301 Power Transformer
075803900 Push Knob Guide 14 07189200 Power Fuse 6A 250 V
9 07649810 Preset Knob Ass’y (100 V ~ 120 V)
10 07617300 Dial Scale 07188800 Power Fuse 3A 250 V
1 07616800 Dial Back Plate (220 V ~ 240 V)
12 07616300 Smoked Piate 15 04007600 Pilot Lamp 8V 300 mA
13 07235300 FL Indicator FIP7B8S
14 07600300 indicator Fiim
15 07615800 Indicator 14-Point
16 07615800 indicator 5-Point
17 07616000 Indicator 1-Point
18 07616100 Indicator 1-Point (Red)
19 07616200 Indicator 8-Point
20 07578000 Indicator (Red)
21 24306000 Head Phone Jack
22 55073500 Leg
14
2) ©) GS)
