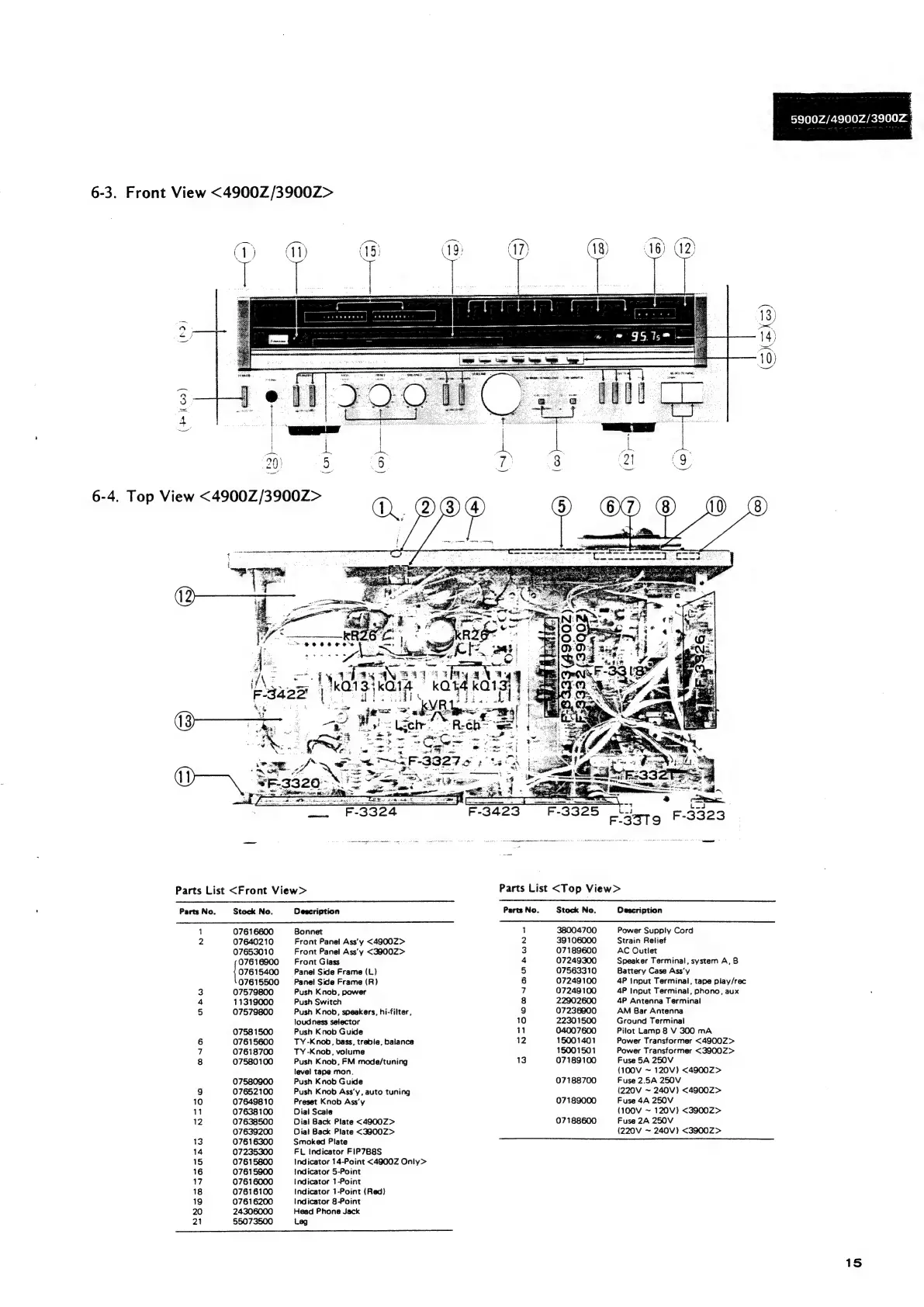

6-3. Front View <4900Z/3900Z>
_-
9 fo
: af =
Re
a ee a
5900Z/4900Z/3900Z
Re sae,
ENS)
ee ea
(
ome)
(
tae cadpiuennbedhadenntinda sntndaniabinaasavateels ata, 42 Sidaeeinlacdd paadedart else aapideds teal 4 aida Fe Tag Wesaaass deve gee Meio Sie Me to aes aided
Parts List <Front View>
Parts No. Stock No. Description
1 07616600 Bonnet
2 07640210 Front Panel Ass'y <4900Z>
07653010 Front Panel Ass’'y <3900Z>
07616900 Front Glass
{o761 5400 _=—— Panel Side Frame (L)
07615500 Panel Side Frame (R)
3 07579800 Push Knob, power
4 11319000 Push Switch
5 07579800 Push Knob, speakers, hi-filter,
loudness selector
07581500 Push Knob Guide
6 07615600 TY -Knob, bass, treble, balance
7 07618700 TY -Knob, volume
8 07580100 Push Knob, FM mode/tuning
level tape mon.
07580900 Push Knob Guide
9 07652100 Push Knob Ass’y, auto tuning
10 07649810 Preset Knob Ass’y
11 07638100 Dial Scale
12 07638500 Dial Back Plate <4900Z>
07639200 Dial Back Plate <3900Z>
13 07616300 Smoked Plate
14 07235300 FL Indicator FIP7B8S
15 07615800 Indicator 14-Point <4900Z Only>
16 07615900 Indicator 5-Point
17 07616000 Indicator 1-Point
18 07616100 Indicator 1-Point (Red)
19 07616200 Indicator 8-Point
20 24306000 Head Phone Jack
21 55073500 Leg
Parts List <Top View>
Parts No. Stock No. Description
1 38004700 Power Supply Cord
2 39 106000 Strain Relief
3 07189600 AC Outlet
4 07249300 Speaker Terminal, system A, B
5 07563310 Battery Case Ass’y
6 07249100 4P Input Terminal, tape play/rec
7 07249100 4P Input Terminal, phono, aux
8 22902600 4P Antenna Terminal
9 07236900 AM Bar Antenna
10 22301500 Ground Terminal
11 04007600 Pilot Lamp 8 V 300 mA
12 1§001401 Power Transformer <4900Z>
18001501 Power Transformer <3900Z>
13 07189100 Fuse 5A 250V
(100V ~ 120V) <4900Z>
07188700 Fuse 2.5A 250V
(220V ~ 240V) <4900Z>
07189000 Fuse 4A 250V
(100V ~ 120V) <3900Z>
07188600 Fuse 2A 250V
(220V ~ 240V) <3900Z>
