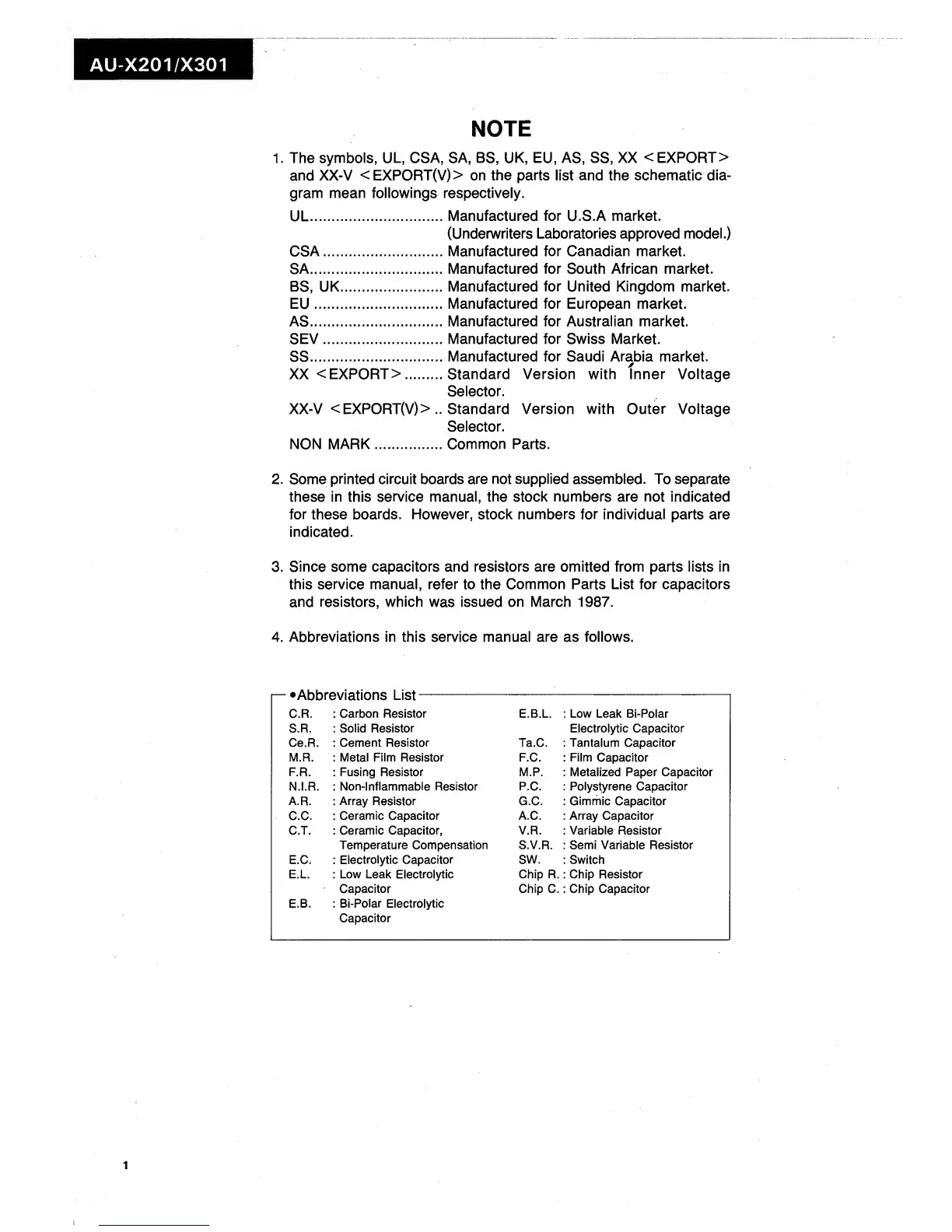

NOTE
1.
The
symbols, UL, CSA, SA, BS, UK, EU, AS,
SS,
XX
<
EXPORT>
and
XX-V <EXPORT(V)> on the parts list and the
schematic dia-
gram mean followings respectively.
UL
Manufactured
for
U.S.A
market.
(Underwriters
Laboratories approved model.)
CSA Manufactured
for Canadian market.
SA
Manufactured for South African market.
BS, UK
Manufactured for
United
Kingdom market.
EU
Manufactured for European market.
AS
Manufactured for Australian market.
SEV Manufactured for Swiss Market.
SS...
Manufactured
for
Saudi
Arabia
market.
XX
<
EXPORT> Standard Version with tnner Voltage
Selector.
XX-V <EXPORT(V)>
.. Standard Version with
Outer Voltage
Selector.
NON
MARK Common Parts.
2. Some
printed circuit boards are not supplied assembled.
To
separate
these in this
service manual, the
stock
numbers are not
indicated
for
these
boards. However,
stock
numbers for individual parts are
indicated.
3.
Since
some
capacitors and resistors are
omitted
from
parts
lists in
this service
manual, refer
to the
Common Parts List for capacitors
and
resistors, which
was
issued on March 1987.
4. Abbreviations in this service manual are as follows.
•Abbreviations
List
C.R. : Carbon
Resistor
S.R.
: Solid Resistor
Ce.R. : Cement
Resistor
M.R. ;
Metal
Film
Resistor
F.R. ; Fusing Resistor
N.I.R. :
Non-Inflammable
Resistor
A.R.
: Array
Resistor
C.C.
:
Ceramic Capacitor
C.T.
: Ceramic Capacitor,
Temperature Compensation
E.C. :
Electrolytic Capacitor
E.L. : Low Leak Electrolytic
Capacitor
E.B. :
Bi-Polar
Electrolytic
Capacitor
E. B.L. : Low Leak Bi-Polar
Electrolytic Capacitor
Ta.C. : Tantalum
Capacitor
F.
C.
: Film
Capacitor
M.P. : Metalized Paper Capacitor
P.C. : Polystyrene Capacitor
G.C.
:
Gimmic
Capacitor
A.C. : Array Capacitor
V.R. :
Variable Resistor
S.V.R.
:
Semi Variable Resistor
SW.
: Switch
Chip R. : Chip Resistor
Chip C. ; Chip
Capacitor
