If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your
antenna system. If you are using a cable TV service (CABLE), see page 9 for Cable TV connections.

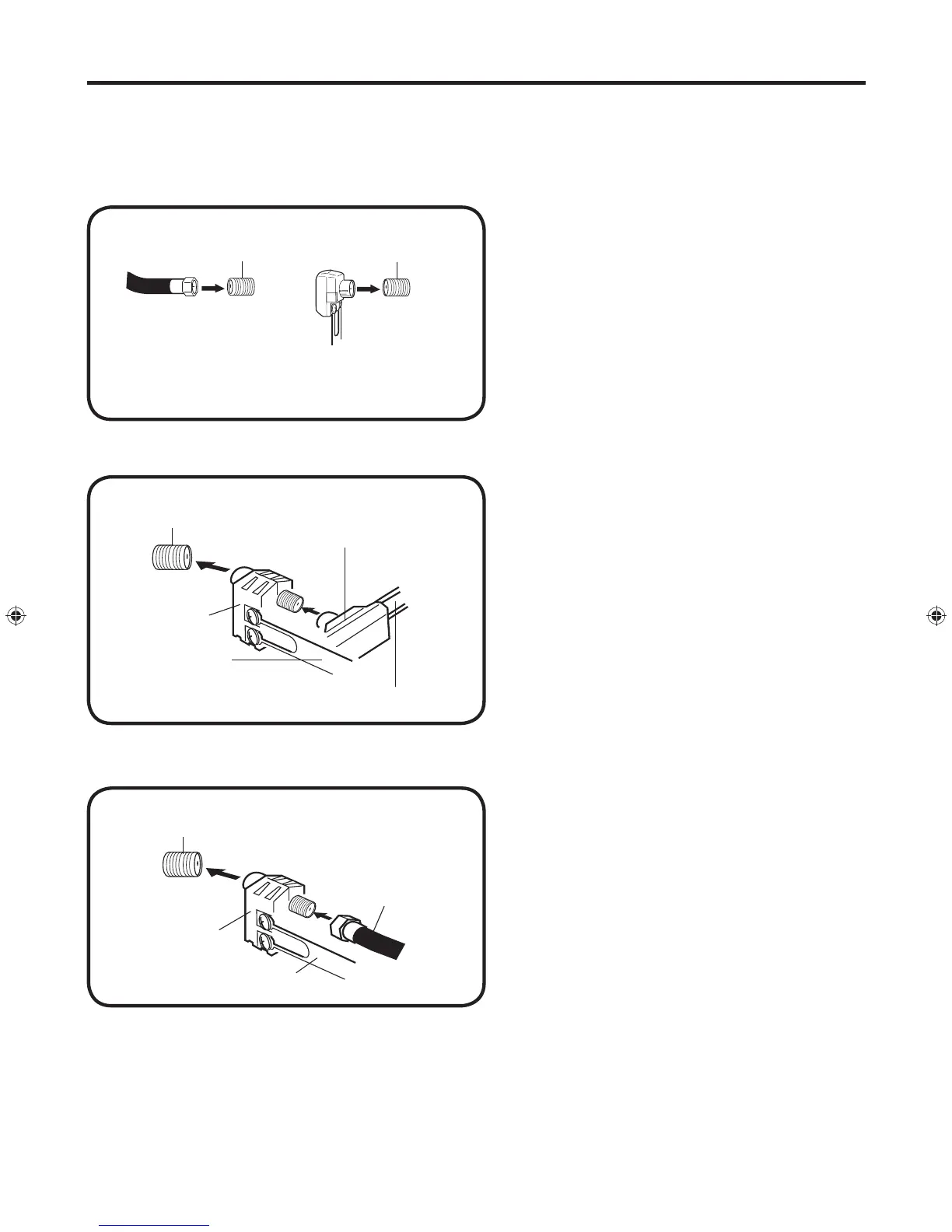

Combination VHF/UHF Antenna (Single 75 ohm Cable or 300 ohm Twin-lead Wire)
Connect the 75 ohm Cable from the Combination
VHF/UHF Antenna to the RF IN Jack.
If your Combination VHF/UHF Antenna has a 300
ohm
Twin-lead Wire, the use of the 300-75 ohm
Matching Transformer may be necessary.
Combination VHF/UHF Antenna (Separate VHF and UHF 300 ohm Twin-lead Wires)
Connect the UHF 300 ohm Twin-lead Wire to the
Combiner (not supplied). Connect the VHF 300
ohm Twin-lead Wire to the 300-75 ohm Matching
Transformer. Attach the Transformer to the
Combiner, then attach the Combiner to the RF IN Jack.
Separate VHF/UHF Antennas (75 ohm VHF Cable and 300 ohm UHF Twin-lead Wires)
Connect the VHF 75 ohm cable and UHF 300
ohm Twin-lead Wire to the Combiner. Attach the
Combiner to the RF IN Jack.
UHF 300 ohm
RF IN jack
Combiner
300-75 ohm
Matching Transformer
VHF 300 ohm
Antenna connections
UHF 300 ohm
VHF 75 ohm
RF IN jack
Combiner
75 ohm
Coaxial Cable
300-75 ohm
Matching Transformer
RF IN jack
RF IN jack
