60
HDMI device
DVI device
NOTES:
•
•
When you make the connection above, on the AV Amplifier, do not set DOLBY DIGITAL to DOLBY DIGITAL, or MPEG to
MPEG “ON”. If you do, a loud noise will emit from the speakers possibly causing damage to your hearing or to the speakers.
Some DTS decoders do not support DVD-DTS interface, and may not work properly with the unit.
Coaxial digital cable
(not supplied)
AV Amplifier with built-in digital surround
decoder as listed above
Center Speaker
Coaxial Digital Audio Output
To Coaxial Digital Audio Input
Rear lower right of unit
Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as
shown below.
Front
Speaker
(Left)
Front
Speaker
(Right)
Subwoofer
Surround
Speaker (Left)
Surround
Speaker
(Right)
TV/DVD

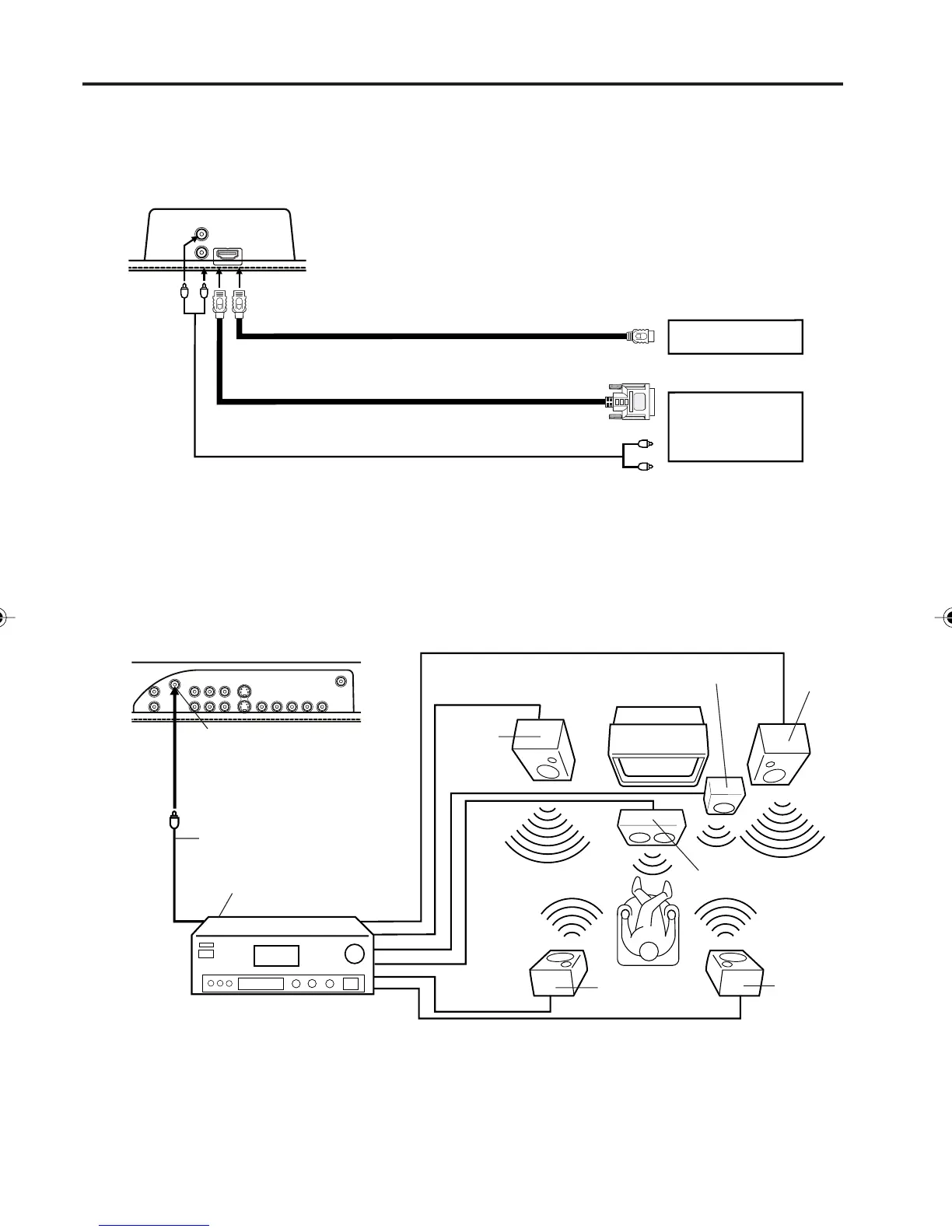

To connect a HDMI or a DVI device to the unit
Rear lower left of unit
HDMI - to - DVI adapter cable (HDMI type A connector)
(not supplied)
Connections to other equipment (continued)
Audio cord (not supplied)
HDMI cable (type A connector)
(not supplied)
To DVI output
To HDMI out
or
The HDMI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital
video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
NOTE:
You must choose an appropriate setting for each connection (see page 35. “Selecting the HDMI audio input
source”).
5X10101A[EN] P54-60 3/2/06, 4:06 PM60
