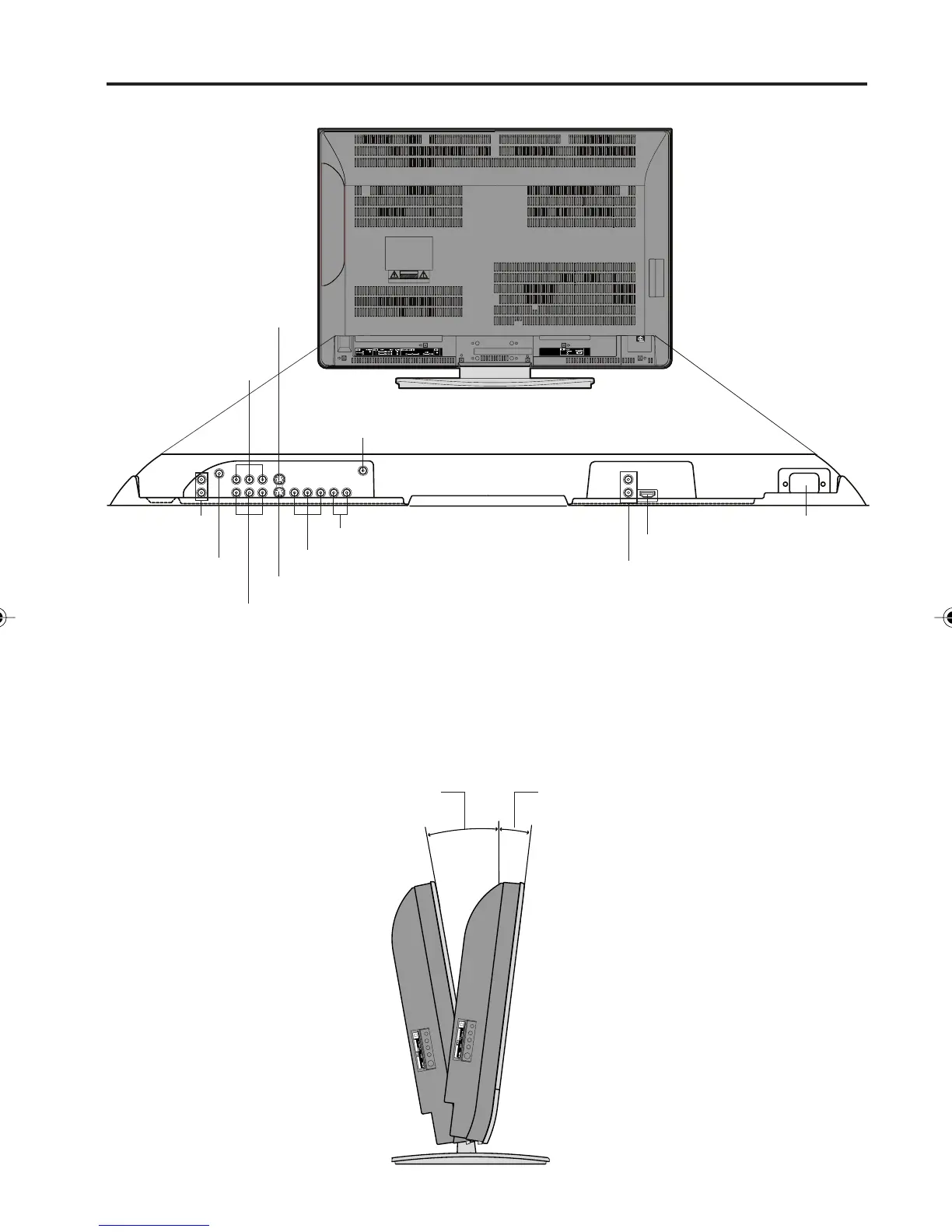

Location of controls (continued)
Rear
Approx. 6˚
0˚
Variable TV-screen angle
You can adjust the angle of the
TV-screen up to 2˚ forward or 6˚
backwards from the vertical
position.
Approx. 2˚
RISK OF ELECTRIC SHOCK
AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
WARNING: SHOCK HAZARD-DO NOT OPEN
DO NOT OPEN
CAUTION
HDMI IN jack
HDMI AUDIO (L/R) IN jacks
AC IN socket
RF (ANT) IN jack
COAXIAL DIGITAL
AUDIO OUT jack
VARIABLE AUDIO
(L/R) OUT jacks
VIDEO/AUDIO (L/R) IN (VIDEO1) jacks
S-VIDEO IN (VIDEO1) jack
COMPONENT AUDIO (L/R) IN jacks
COMPONENT (Y, P
B, PR) IN jacks
S-VIDEO IN (VIDEO2) jack
VIDEO/AUDIO (L/R) IN
(VIDEO2) jacks
