Sansui SC-5100 - Specifications

44

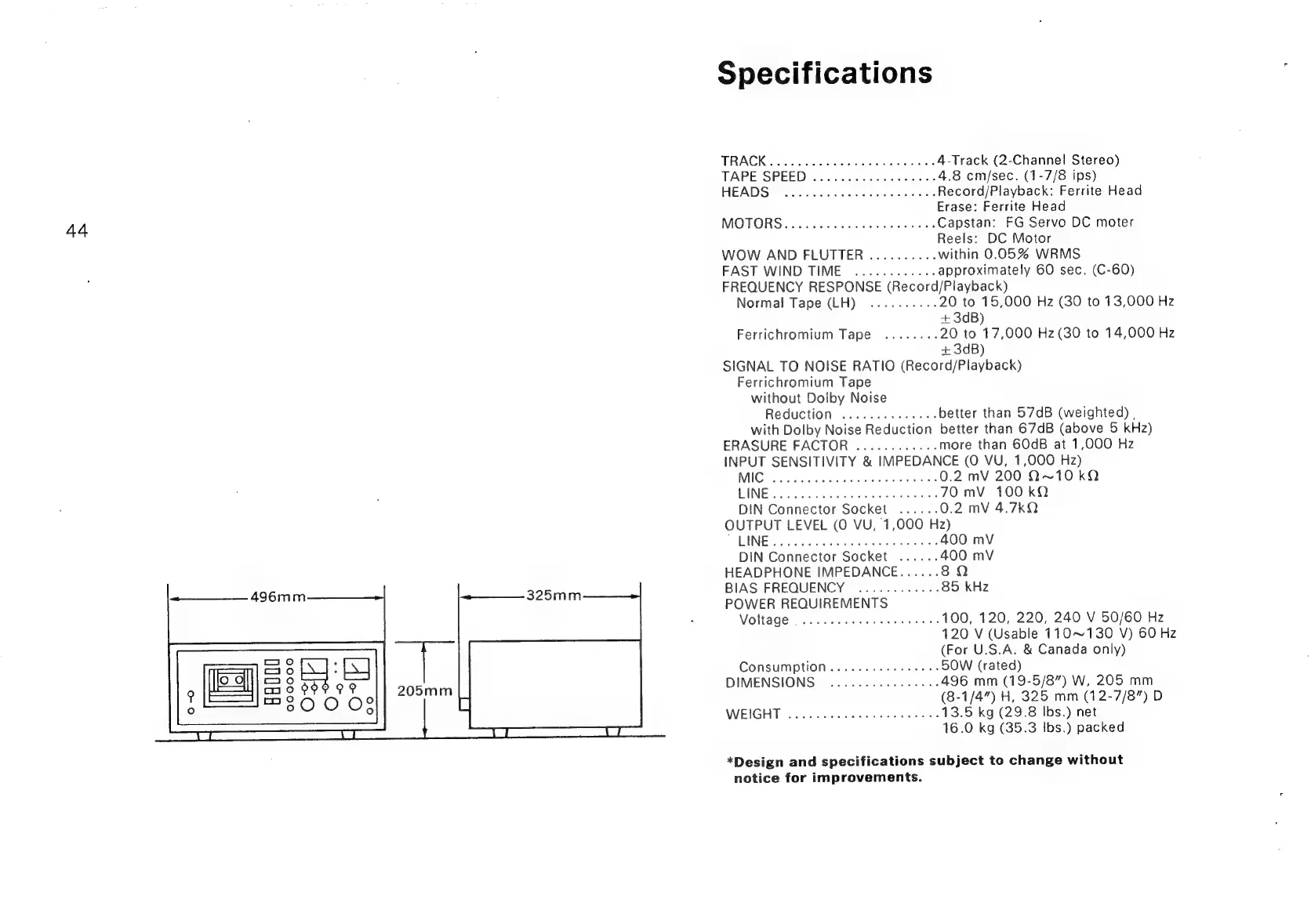

Specifications
TRACKS he tas tih iuos oes Steak 4-Track (2-Channel Stereo)
TAPE SPEED ...............00. 4.8 cm/sec. (1-7/8 ips)
HEADS 63 ixccsket gia dewaiws Record/Playback: Ferrite Head
Erase: Ferrite Head
MOTORS wa citi ae ee tied Capstan: FG Servo DC moter
Reels: DC Motor
WOW AND FLUTTER .......... within 0.05% WRMS
FAST WIND TIME ............ approximately 60 sec. (C-60)
FREQUENCY RESPONSE (Record/Playback)
Norma! Tape (LH) .......... 20 to 15,000 Hz (30 to 13,000 Hz
+ 3dB)
Ferrichromium Tape ........ 20 to 17,000 Hz (30 to 14,000 Hz
+ 3dB)
SIGNAL TO NOISE RATIO (Record/Playback)
Ferrichromium Tape
without Dolby Noise
Reduction ............6- better than 57dB (weighted) ,
with Dolby Noise Reduction better than 67dB (above 5 kHz)
ERASURE FACTOR ...........- more than 60dB at 1,000 Hz
INPUT SENSITIVITY & IMPEDANCE (0 VU, 1,000 Hz)
MIG ecehe sentence ne 0.2 mV 200 0+10 kQ
INES ener lak eta vena 70 mV 100 kQ
DIN Connector Socket ...... 0.2 mV 4.7kQ
OUTPUT LEVEL (0 VU, 1,000 Hz)
EINE) scarce aos erie tyne, Padeage els 400 mV
DIN Connector Socket ...... 400 mV
HEADPHONE IMPEDANCE...... 8Q
BIAS FREQUENCY ............ 85 kHz
POWER REQUIREMENTS
VOMaGE cn csc beens bean es 100, 120, 220, 240 V 50/60 Hz
120 V (Usable 110~130 V) 60 Hz
(For U.S.A. & Canada only)
Consumption............5065 5OW (rated)
DIMENSIONS ........ eee eee 496 mm (19-5/8”) W, 205 mm
(8-1/4”) H, 325 mm (12-7/8”) D
WEIGH Ts os binead aia ant aes 13.5 kg (29.8 Ibs.) net
16.0 kg (35.3 Ibs.) packed
*Design
and
specifications
subject
to
change
without
notice
for
improvements.
