Santon AH7/2.2 - Electrical Installation Requirements; Electrical Supply and Cable; Wire Colour Coding

6
ELEMENTNEON
RESET BUTTON
EARTH
POST
('STAT/CUT-OUT PLUGS DIRECTLY 
ONTO ELEMENT TERMINATIONS).
DOUBLE POLE
ISOLATING SWITCH
BROWN
BLUE
GREEN/YELLOW


MAINS 
SUPPLY


L

N

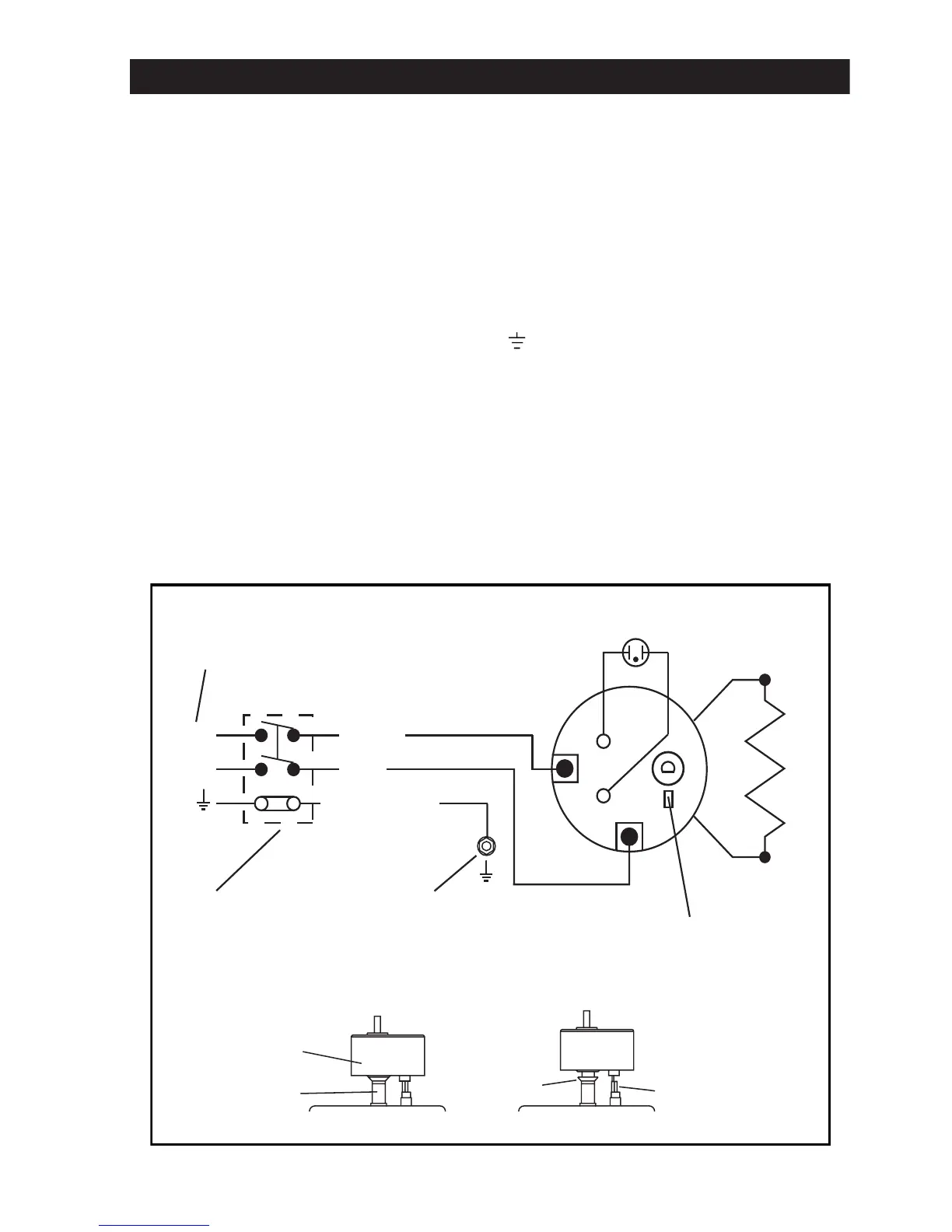

FIGURE 6: WIRING DIAGRAM 'AC' ONLY.
IMPORTANT: THE COMBINED THERMOSTAT/CUT-OUT MUST BE PUSHED FULLY
HOME TO ENSURE CORRECT OPERATION OF THE CUT-OUT
COMBINED
THERMOSTAT
& CUT-OUT
THERMOSTAT
POCKET
ELEMENT
TERMINALS
FLARED END OF
THERMOSTAT
POCKET
CORRECT INCORRECT
3.0 INSTALLATION - ELECTRICAL REQUIREMENTS
WARNING: This appliance must be earthed. It is suitable for a.c. supply only.
Disconnect the electrical supply before removing the terminal cover. Installation
must be in accordance with the current I.E.E. Wiring Regulations.
3.1 The unit is supplied tted with a 0.75m 3 core 1.5mm
2
exible cable. The electic-
ity supply should be fused 13 Amp and be via a double pole isolating switch with
a contact separation of at least 3mm in both poles. Refer to the schematic wiring
diagram on page.
3.2 The wires are colour coded as follows:
Green and Yellow EARTH ( )
Brown LIVE (L)
Blue NEUTRAL (N)
