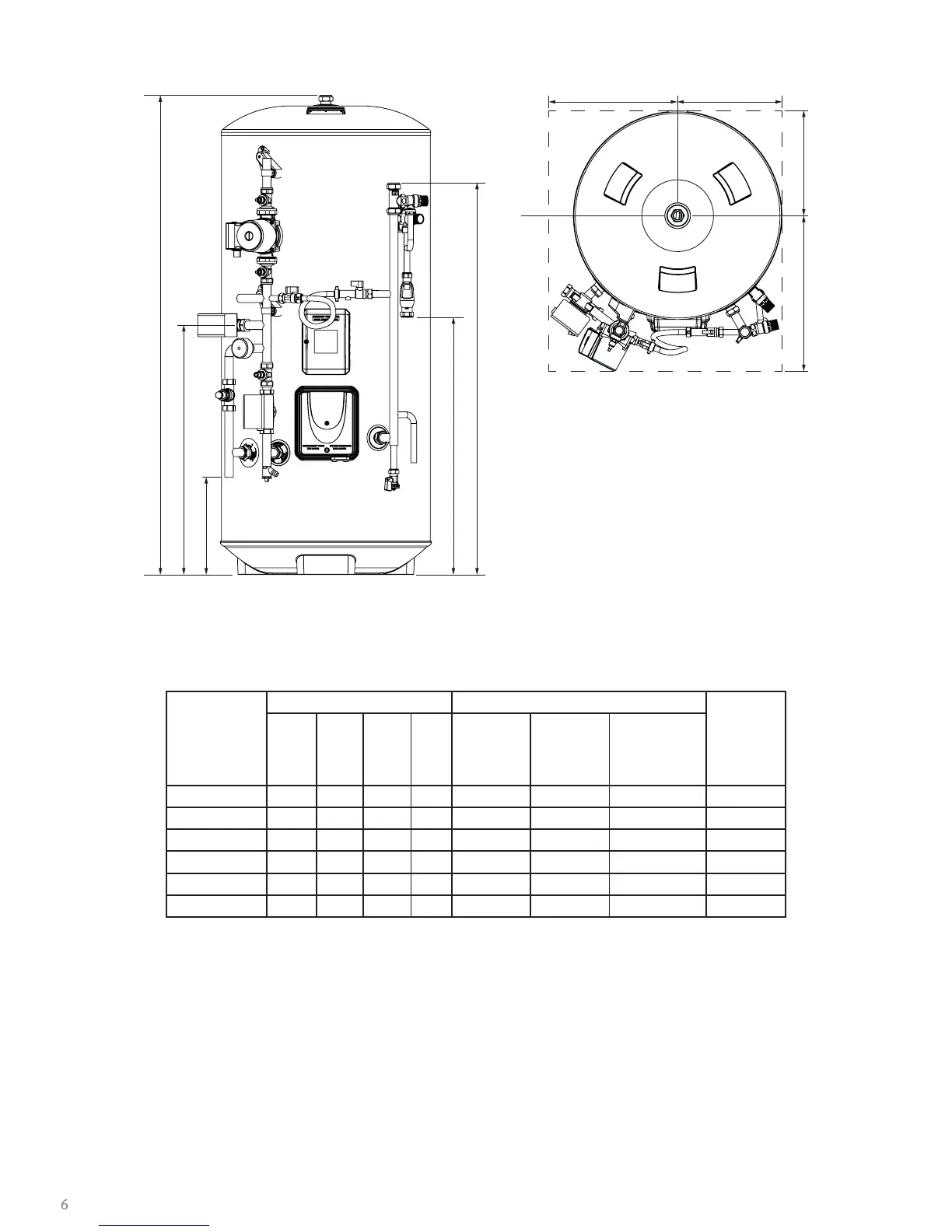

Fig 1 - General Dimensions
Table 2 - Dimensions and Performance
6
NOMINAL
CAPACITY
(litres)
DIMENSIONS (mm) COIL
HEATING
TIME IMM
HEATER
(mins)
A B C D
RATING
(kW)
HEAT
UP TIME
(mins)
HOT WATER
DRAW-OFF
(litres) TO
40°C
120 936* 382 728 650 15.4 24 108 121
150 1119 563 917 650 15.9 29 135 152
170 1245 691 1039 650 17. 3 30 157 173
210 1503 952 1300 650 19.2 34 199 215
250 1755 1139 1460 650 18.6 42 240 257
300 2069 1460 1805 650 18.8 49 273 310
Notes:
1. Heat up time from cold through 45°C, with a primary ow rate 15ltrs/min at 80°C +/- 2°C.
2. Direct heating times assume use of lower element only, from cold, through 45°C.
3. Cylinders tested to BS EN 12897:2006
* Top of pump extends 95mm above this height
340 284
284412
A
B
C
D
256
Dashed line denotes minimum space
requirement
Pipework layout will vary by model
