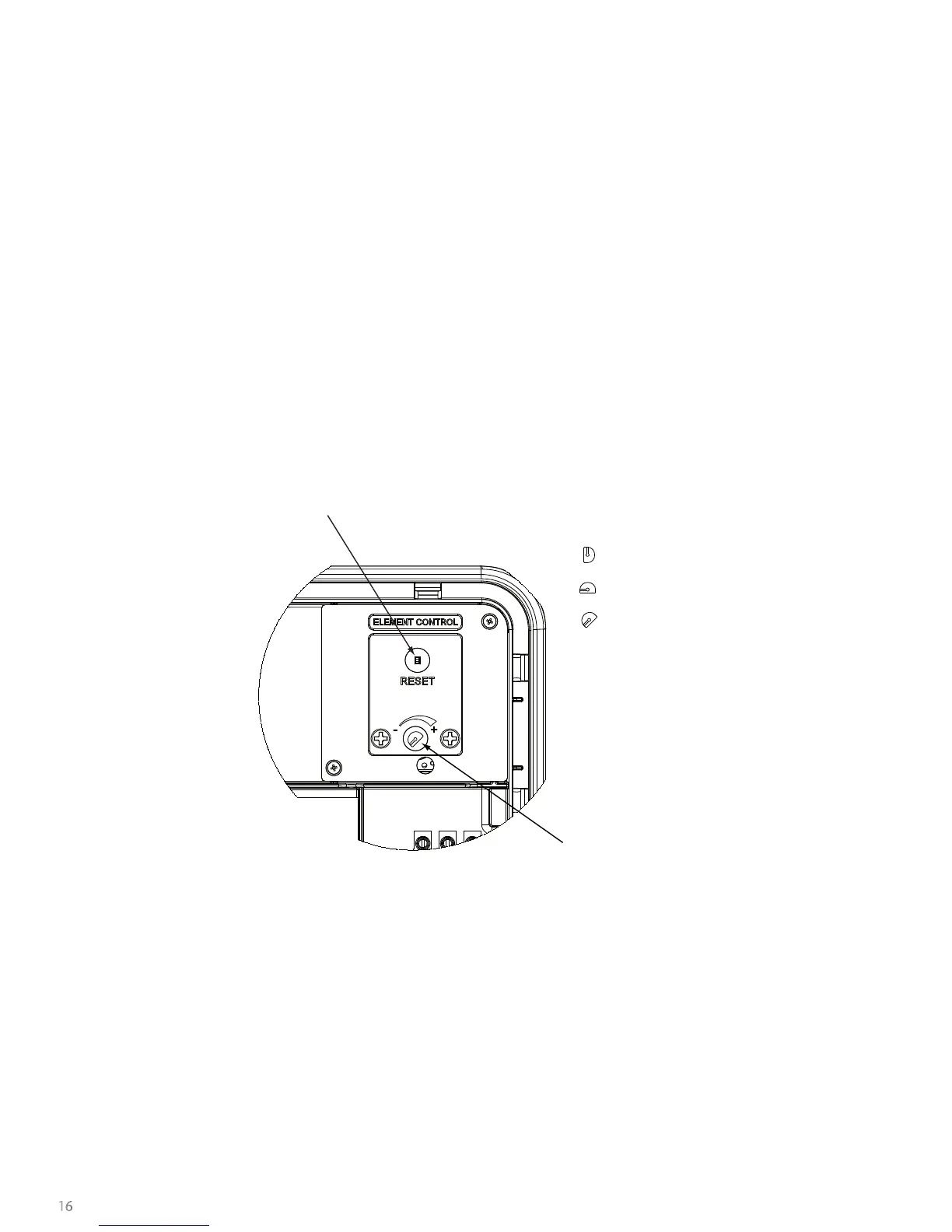

Fig 7 - Adjustment details
PROGRAMMER AND ROOM TEMPERATURE SENSOR
The programmer and room temperature sensor are supplied loose such that they can be installed at a convenient location
within the property. These items are supplied with their own installation and user instruction leaet which should be
referred to for details of mounting, wiring and programming. NOTE: The room sensor is wired directly to the programmer
not to the wiring centre. The room sensor must be used, it is not possible to integrate a standard room thermostat with
the programmer. Temperature setting of the room temperature is also done at the programmer, there is no adjustment at
the room temperature sensor. Temperature setting of the stored water in the PremierPlus SystemFit is done at the indirect
thermostat housed within the indirect terminal housing on the front of the PremierPlus SystemFit unit.
Basic Programmer Features:
• 24 hour or 5/2 day operation
• Room temperature setting at programmer
• Set temperature over-ride facility
• 1 hour hot water boost facility
• Battery back up retains programmed information in the event of a power interuption
• Low temperature set back option for periods when the property is unoccupied, eg. holiday periods
• Independent time control of central heating and domestic hot water (Building Regulation Part L1 compliant)
NOTE: The programmer supplied will only provide control for one CH zone. Should a second CH zone be required, additional
controls will be needed (not supplied) to fulll the requirements of Building Regulation Part L1.
Thermal cut-out reset button
Spindle positions
= Minimum temp 10°C
= Maximium temp 72°C
= Approx 60°C
Rotate spindle clockwise
for temperature increase
and counter-clockwise
for temperature decrease
Temperature adjusting
spindle
To Next Page
