98127 EN 2.2 - 12 2010 11 / 19 www.santos.fr
SANTOS : Instruction and maintenance manual
3. After installing the belt (20), turn the driven pulley (21) by hand and gradually pull
the speed control lever (10) until it reaches the high speed position.

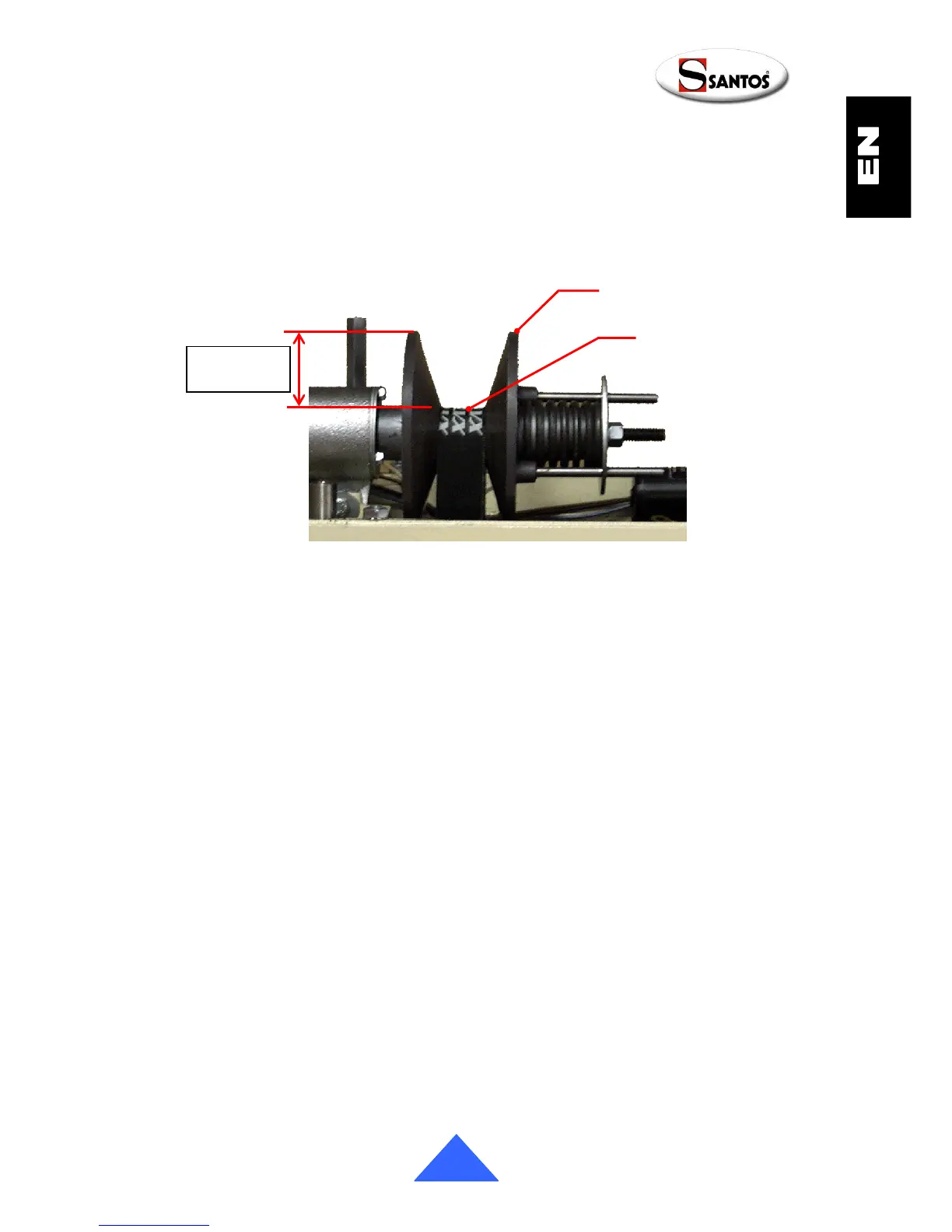

4. Once in this position, check the distance for the top of the belt at the outer diameter
of the drive pulley (21) (minimum distance 39 mm, maximum 40 mm): see the
sketch.
If the distance measured is correct, then the belt (20) change operations are
finished. All that is needed is to carry out the following operations.
Replace the cover (18) and screw the locking screw home (17).
Connect the appliance to the mains electricity supply and start the beater-mixer, then
change the speed a few times to check that the variable speed drive operates correctly
over the whole range of speeds.
If the distance measured is outside the tolerances, the rack (11) for the speed
control level (10) must be adjusted as follows.
1. Loosen the two screws (23) fixing the rack (11) and move the rack forwards if the
distance measured is less than 39 mm, or backwards if the distance exceeds 40
mm.
2. Turn the driven pulley (21) by hand and check the belt position measurement.
3. Continue in this manner until a suitable measurement is obtained, then screw home
the two screws (23) fixing the rack in position (11).
4. Move the speed control lever (10) to the low speed position and turn the driven
pulley (21) by hand to check the position of the belt in the pulley: the belt must
never protrude beyond the outer diameter of the pulley.
5. Replace the cover (18) and screw the locking screw home (17).
6. Connect the appliance to the mains electricity supply and start the beater-mixer,
then change the speed a few times to check that the variable speed drive operates
correctly over the whole range of speeds.
21
Min. 39 mm
Max. 40 mm
20
