● Mount the arm assembly
06
directly onto the concrete
surface (no surface covering)
● Minimum solid concrete thickness: 8 in. (20.3 cm)
● Minimum concrete block size: 8 x 8 x 16 in. (20.3 x 20.3 x 40.6 cm)
CAUTION: Avoid potential personal injury or property damage!
Position drill template
05
at your desired height. Level and mark the
hole locations.
sanus.com
/1172
HeightFinder™
Visit
TIP:
TIP:
To calculate your precise wall plate location, check out
our HeightFinder at sanus.com [www.sanus.com/1172].
05
1
POSITION TEMPLATE

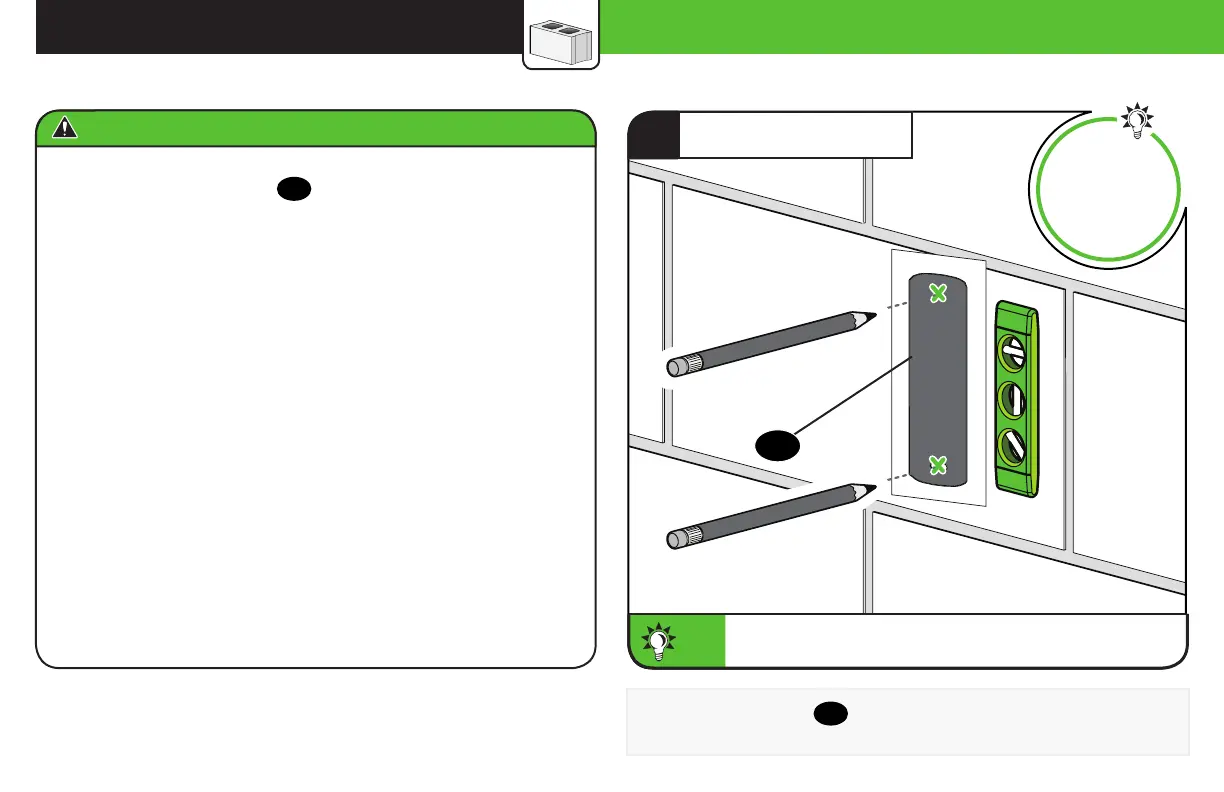

STEP 2B Attach Wall Plate
Solid Concrete or Concrete Block Installation
