Note:
that measurement should be taken with the crest factor below
5.
NMRR (Normal Mode Rejection Ratio)
NMRR is the DMM's ability to reject unwanted AC noise effect,
which can cause inaccurate DC measurements. NMRR is
typically specified in terms of dB (decibel). This series has a
NMRR specification of >60dB at 50 and 60Hz, which means a
good ability to reject the effect of AC noise in DC measurements.
CMRR (Common Mode Rejection Ratio)
Common mode voltage is voltage present on both the COM
and VOLTAGE input terminals of a DMM, with respect to
ground. CMRR is the DMM's ability to reject common mode
voltage effect, which can cause digit rattle or offset in voltage
measurements. This series has a CMRR specifications of
>90dB at DC to 60Hz in ACV function; and >120dB at DC, 50
and 60Hz in DCV function.

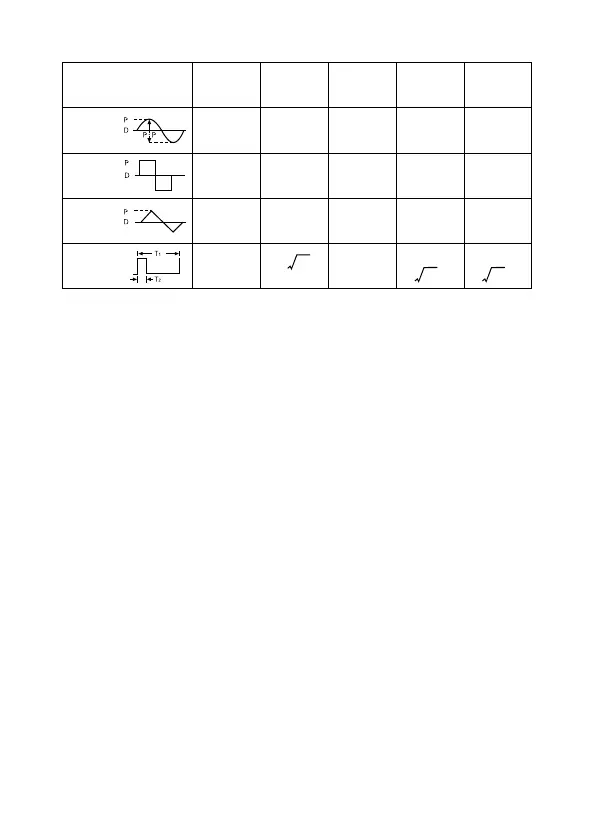

0 to PEAK
P
Vrms Vavg P/Vrms
Vrms/Vavg
Puls
D
=
—
T
2
T
1
1.414 1.000 0.900 1.414 1.111
1.000 1.000 1.000 1 1.000
1.732 1.000 0.866 1.732 1.155
2.000 2 D 2•D
——
1
D
1
D
Input waveform
Sine
wave
Square
wave
Triangular
wave
