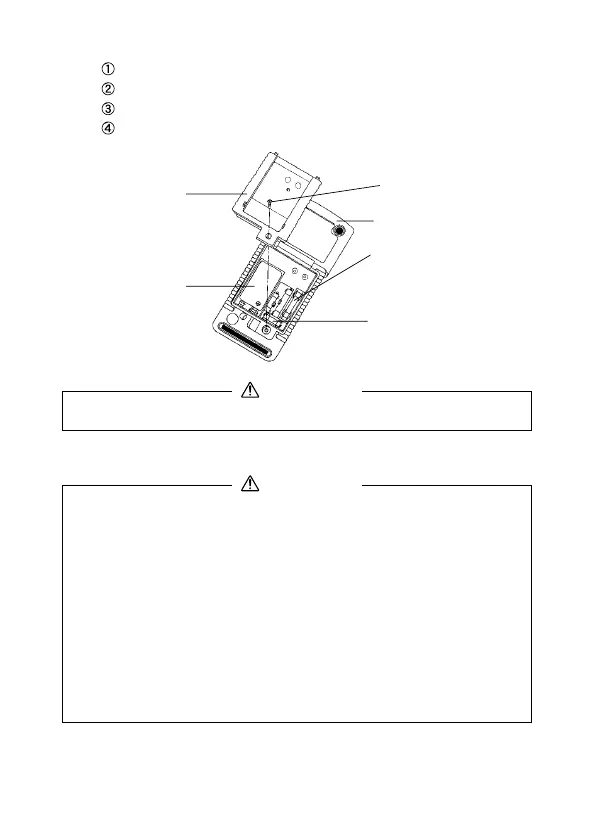

Remove the battery lid screw with a screwdriver.
Removed the battery lid.
Take out the battery or fuse and replace it with a new one.
Attach the battery lid and fix it with the screw.
Battery lid
Battery (9V)
Battery lid screw
Rear case
Fuse 12.5A/500V
Blowout capacity : 20kA
ø6.3 x 32mm
Fuse 0.63A/250V
Blowout capacity : 1.5kA
ø5.2 x 20mm
Set a battery with its polarities facing in the correct directions.
CAUTION
6-4 Storage
1. The panel and the case are not resistant to volatile solvent
and must not be cleaned with thinner or alcohol. For cleaning,
use dry, soft cloth and wipe it lightly.
2. The panel and the case are not resistant to heat. Do not place
the instrument near heat-generating devices (such as a
soldering iron).
3.Do not store the instrument, in a place where it may be
subjected to vibration or from where it may fall.
4. For storing the instrument, avoid hot, cold or humid places or
places under direct sunlight or where condensation is
anticipated.
CAUTION
Following the above instructions, store the instrument in good
environment. (See 8-1)
