4.1.19.2 Swing angle calibration

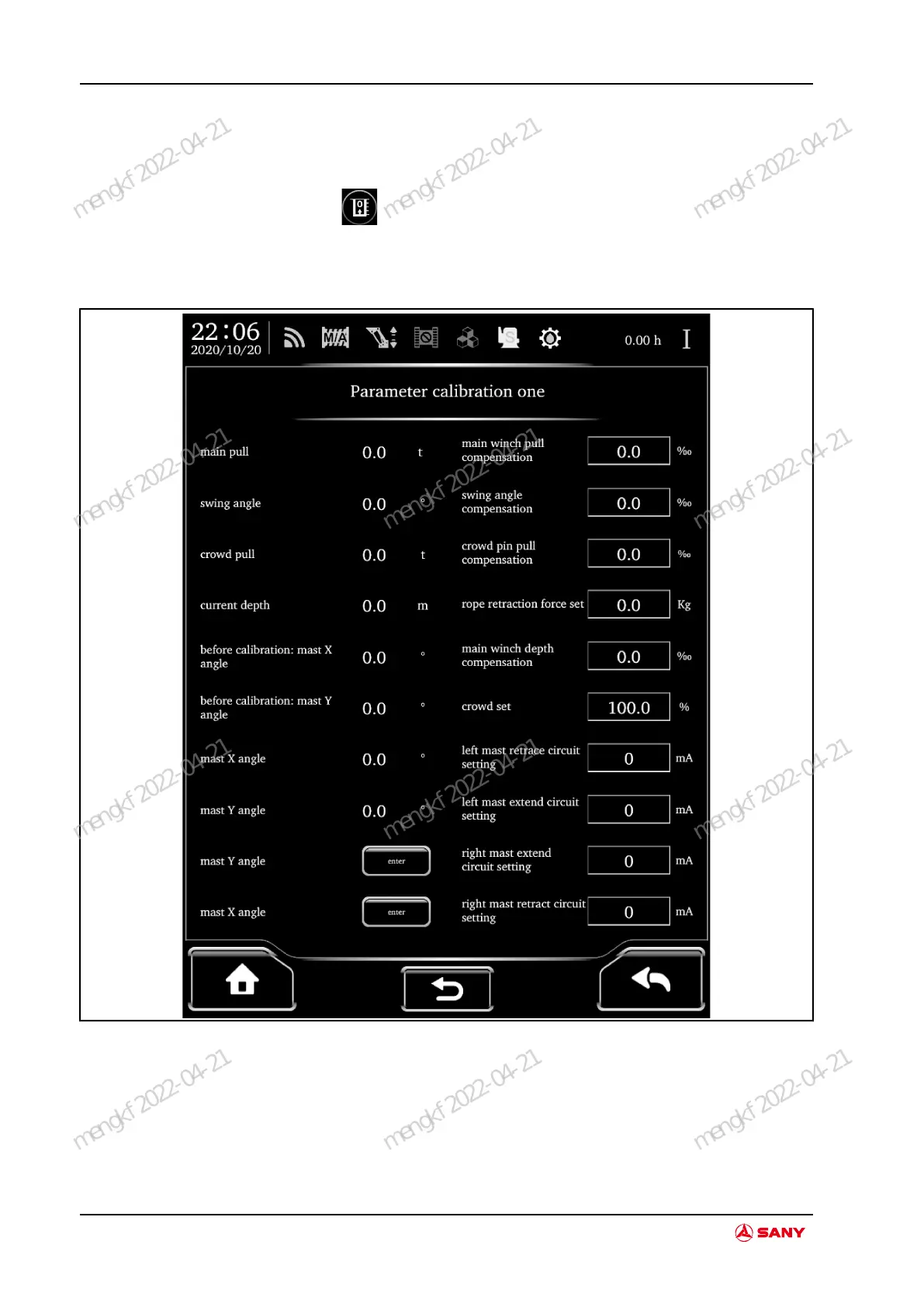

Press parameter calibration button on access interface to access to calibration interface.
Touch the swing angle value on parameter setting interface, the keyboard will pop up. Input the
correct value on the keyboard and press enter to confirm.
Fig.4-62
Operation SR400R Rotary Drilling Rig
