SANY SR400R - Connecting Kelly Guide to Kelly Bar

Safety, Operation and Maintenance Manual-September 30, 2019
4-79

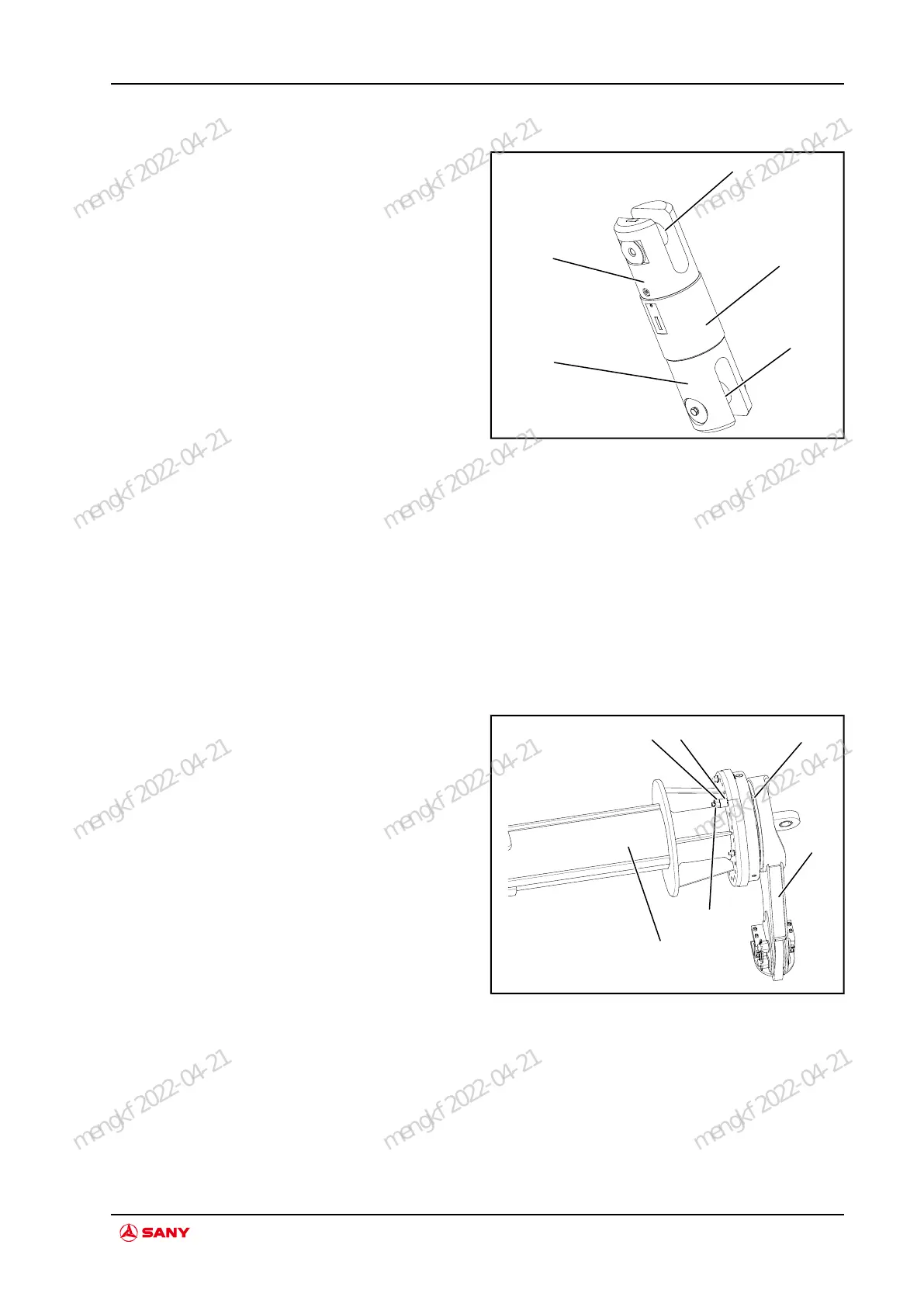

Fig.4-119 Rope Swivel
A. Upper part B. Middle part
C. Lower part D. Connect to main
rope
E. Connect to Kelly
bar
NOTE：
• Upper part and middle part are jointed
as a whole. Connect the upper part to
main rope and connect the lower part to
Kelly bar.
• Tighten the bolts according to the re-
quired tightening torque. (See: Appen-
dix, “Bolt Tightening Torque” on page 8-3)
4.3.3.2 Connecting Kelly guide to Kelly
bar
Fig.4-120 Connecting Kelly Guide to Kelly Bar
1. Kelly guide 2. Bolt
3. Washer 4. Nut
5. Kelly bar
6. Cotter pin
1. Connect Kelly guide (1) to Kelly bar (5) by
bolt (2), washers (3) and nut (4), as illustrated
in the right figure. Tighten the bolts according
to the required tightening torque and fasten
with the cotter pin (6).
2. Remove the two pins near the crowd
sledge guides and rotate the two crowd
sledge guides outwards. Install pins to their
original position to prevent the crowd sledge
guides from rotating.
NOTE：
• Tighten the bolts gradually.
• Tighten the bolts according to the
required tightening torque (See:
Appendix, “Bolt Tightening Torque” on
page 8-3).
D
A
C
E
B
5
1
2
34
6
SR400R Rotary Drilling Rig
Operation
