11

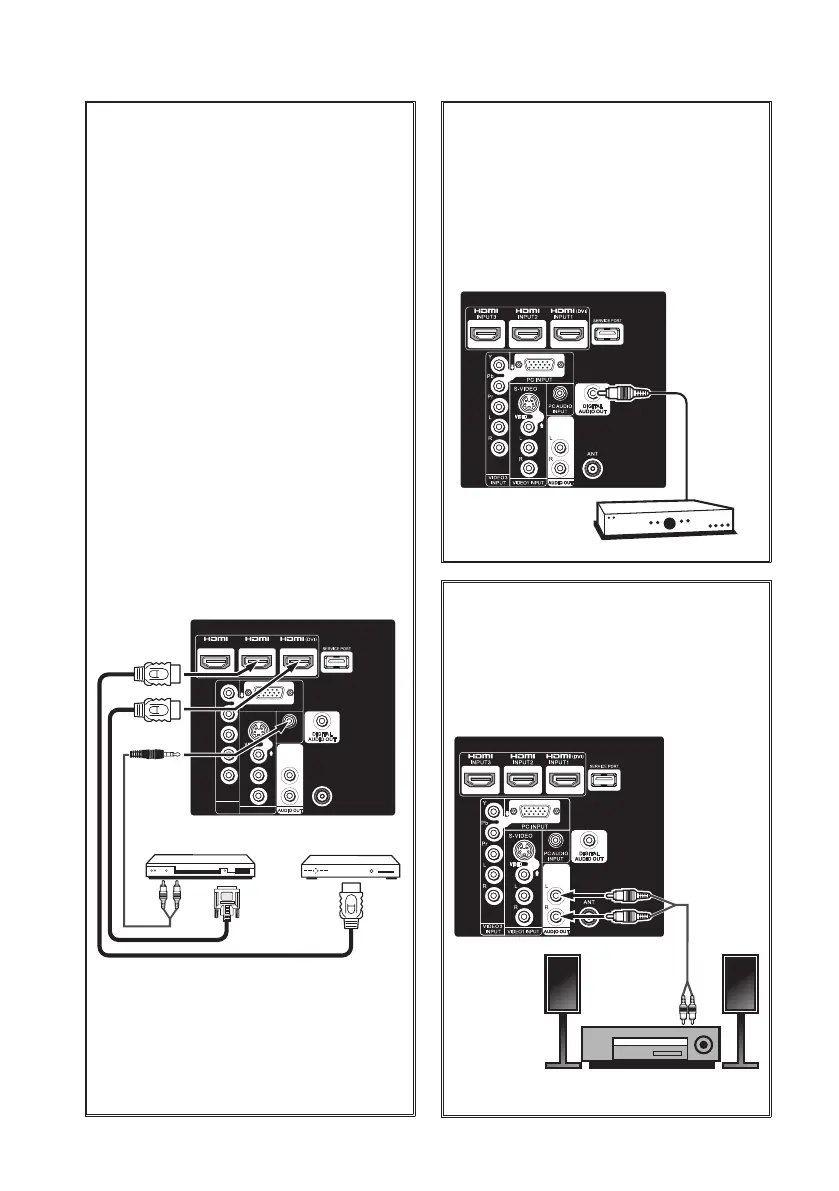

ADVANCED DIGITAL SIGNAL
CONNECTIONS-HDMI TO HDMI
Connect compatible Digital devices, such as, an
HD Cable Box, HD Satellite Receiver, DVD Player,
and Game System.
HDMI-High-Definition Multimedia Interface.
An all digital AV interface that accepts uncompressed
video signals for the very best picture possible. It
supports HDCP copy protection, allowing transmission
of copy-protected digital content. The signal can also
include Dolby
®
Digital or PCM audio, when available.
1無
Connect an HDMI cable to one of the HDTV’s
HDMI inputs and to your external device. (Cable
is not supplied)
NOTE : Press the INPUT key to step through the signal
inputs to select HDMI1, HDMI2, or HDMI3.
DVI TO HDMI
1無
Use an adapter (not supplied) to connect a DVI
device to a HDMI input jack.
2無
Connect the audio out of the device to the PC
AUDIO INPUT.
INPU T1
DVI
INPU T2INPU T3
VIDEO 3
INPUT
VIDEO1 INPUT
PC INP UT
PC
INPUT
AUDIO
S-VI DE O
L
R
L
R
Pr
Pb
Y
VIDEO
L
R
AUD IO OUT
DIGITAL
AUDIO OUT
ANTANT
DIGITAL AUDIO
1無
Connect the Digital Audio output to a
multichannel receiver, as shown.
NOTE: Dolby Digital audio is available at the Digital Audio
Output only when received as part of a Digital
Antenna being viewed on the screen.
DEO 3
P NPU
PC
INPUT
U I
S-VI DE O
R
VIDEO
ANTA NT
AUDIO OUT JACKS
(FIXED ANALOG)
1無
Connect the Stereo Audio Out jacks to a stereo
amplifier, as shown.
NOTE: Do not connect external speakers directly to the
HDTV.
ANT
VIDEO 3
INPUT
VIDEO1 INP
PC INP UT
PC
INPUT
AUDIO
S-VI DE O
L
R
L
R
Pr
Pb
Y
VIDEO
PHONO-TYPE
DIGITAL
AUDIO CABLE
(Not supplied)
MULTICHANNEL
RECEIVER
BACK-SIDE
VIEW OF HDTV BACK
BACK-SIDE
VIEW OF
HDTV
STEREO
AMPLIFIER
ADVANCED AV CONNECTIONS
BACK-SIDE VIEW OF HDTV
SATELLITE
RECEIVER
DVD PLAYER
