9
GETTING STARTED-CONNECTIONS
3無

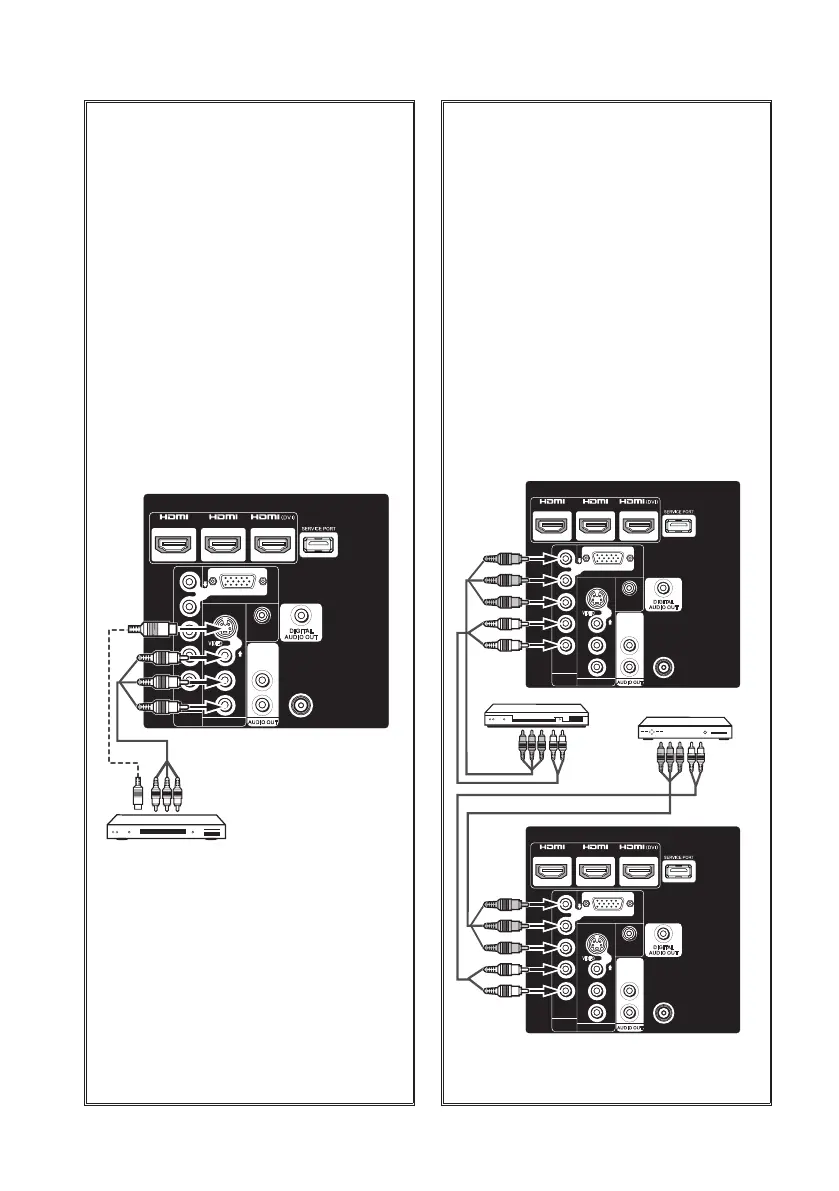

Analog Signal Connections - VIDEO1 or VIDEO2
(optional)
Connect an analog device, such as, an Analog
Cable Box, Satellite Receiver, or VCR
Composite connectors are included on your
new HDTV to provide continued compatibility with
older analog devices, such as a VCR. The S-Video
connector will provide the best analog resolution. If
you have an S-Video connector on your old analog
equipment, you should use it instead of the standard
video connector. (Cables are not supplied)
1無
Connect an AV cable to the VIDEO1 or VIDEO2
jack on the HDTV and to your analog AV
equipment, as shown. Match the connector colors
to jack colors.
2無
Press the INPUT key to step through the signal
inputs to select
Video1 or Video2
.
ANT
INPUT 1
DVI
INPUT2INPUT3
VIDE O 3
INPU T
VIDEO1 INPUT
PC INPUT
PC
INPU T
AUDI O
S-VIDEO
L
R
L
R
Pr
Pb
Y
VIDE O
L
R
AUDI O OU T
DIGI TAL
AUDI O OUT
ANT
4無
Digital Signal Connections - Video3 (YPbPr)
Connect Digital devices, such as, an HD Cable
Box, HD Satellite Receiver, DVD Player, and Game
System
The Component jacks on this HDTV will accept
HDTV, EDTV, and SDTV video signals, making
Component a great choice when connecting your
compatible external devices.
1無
Connect a COMPONENT cable to a set of
Green, Blue, and Red video jacks Video3
(YPbPr) on the HDTV and to your digital device,
as shown. (Cable is not supplied)
2無
Connect an AUDIO cable to the matching set of
White and Red audio jacks, as shown. (Cable is
not supplied)
3無
Press the INPUT key to step through the signal
inputs to select Video3 (YPbPr).
INPU T1
DVI
INPU T2INPU T3
VIDE O
3
INPU T
VIDEO1 INPUT
PC INP UT
PC
INPU T
AUDI O
S-VI DEO
L
R
L
R
Pr
Pb
Y
VIDE O
L
R
AUD IO OUT
DIGI TAL
AUDI O OU T
ANTANT
INPU T1
DVI
INPU T2INPU T3
VIDE O
3
INPU T
VIDEO1 INPUT
PC INP UT
PC
INPU T
AUDI O
S-VI DEO
L
R
L
R
Pr
Pb
Y
VIDE O
L
R
AUD IO OUT
DIGI TAL
AUDI O OU T
ANTANT
ANALOG DEVICE
DVD PLAYER
SARELLITE
RECEIVER
To Next Page
