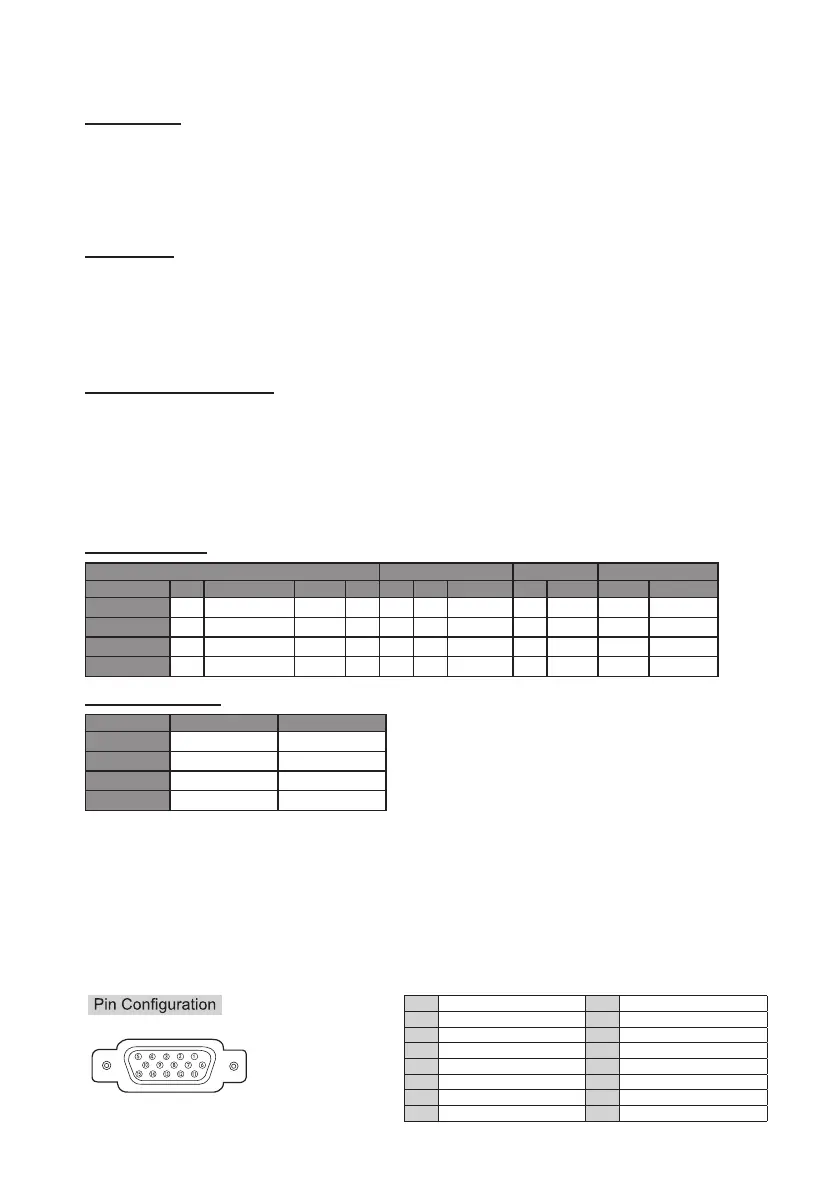

Sanyo LCD-19E3 - Physical and Terminal Information; Dimensions, Weight, and Environment; Terminal Configurations

25
Dimensions
(Including Stand)
19” (W)463 x (H)351 x (D)168 mm
26” (W)668 x (H)495 x (D)210 mm
32” (W)802 x (H)571 x (D)210 mm
42” (W)1023 x (H)697 x (D)250 mm
Net Weight
(Including Stand)
19” 4.4 kg
26” 8.0 kg
32” 11.1 kg
42” 19.1 kg
Operating Environment
Operating Temperature: Operating: 5°C to 35°C
Operating Humidity: 0 % to 90 %
Storage Temperature: 0°C to 40°C
Storage Humidity: 0% to 90% (non-condensing)
■
Specifications are subject to change without notice.
■
The On-Screen Menu and figures in this manual may differ slightly from the product.
Input terminals
Video 1 Video 2 Video 3
PC PC AUDIO INPUT HDMI/DVI ANT AV SV AV/SV Audio AV AV Audio YPbPr YPbPr Audio
19”
1 1 1 1 1 1 1 1 1 1 1
26”
1 1 2 1 1 1 1 1 1 1 1
32”
1 1 3 1 1 1 1 1 1 1 1
42”
1 1 3 1 1 1 1 1 1 1 1
Output terminals
Digital Audio Output Audio Output
19”
1 1
26”
1 1
32”
1 1
42”
1 1
CONFIGURATIONS OF VGA TERMINALS
VGA IN (D-SUB) TERMINAL
Terminal : D-SUB15 PIN
Connect video output terminal of LCD TV to this terminal with VGA Cable (not supplied). When connecting Macintosh
computer, the MAC Adapter (not supplied) is required.
1 Red Input 9 +5V
2 Green Input 10 NC
3 Blue Input 11 Sense 0
4 Reserved 12 DDC_SDA
5 Reserved 13 Horiz. sync.
6 GND 14 Vert. sync.
7 GND 15 DDC_SCL
8 GND
