Connect video and audio outputs from
video equipment.
● DVD component (RCA type)
● Audio L and R (RCA type)
PREPARATION

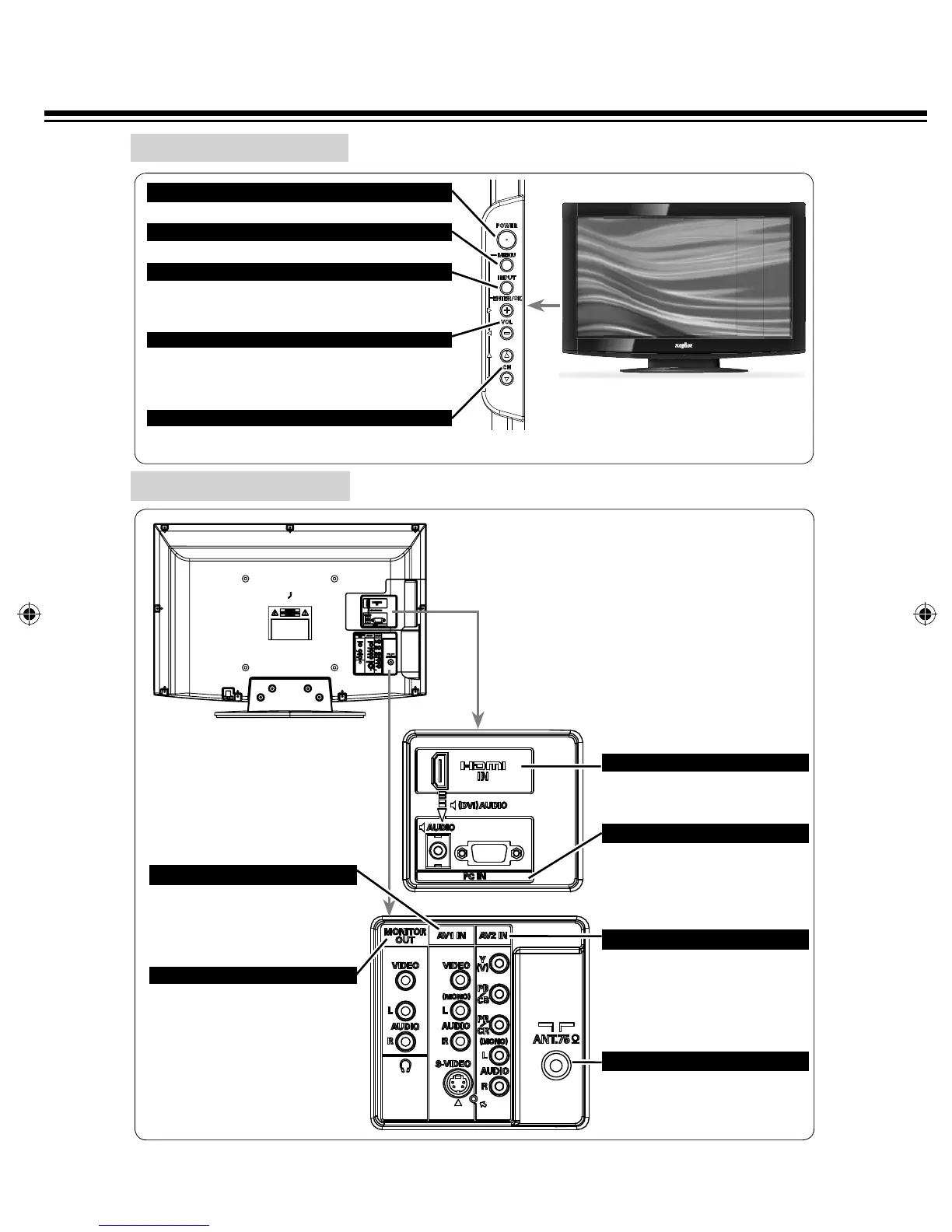

SIDE CONTROL
AV2 Terminals
(Each button on the control panel has the same function with its counterpart on the
remote control. )
Monitor Output Terminals
Connect video and audio outputs
from video equipment.
HDMI Input Terminal
SIDE TERMINAL
POWER ON/ OFF button
-Used to turn the LCD TV on or off.
CHANNEL UP/DOWN
(
▲/▼
) buttons
-Used to Change channels.
-Used to select items on On-Screen Menu.
VOLUME
(+/-)
buttons
-Used to adjust the volume.
-Used to adjust the value of the selected item on
On-Screen Menu.
-Used to execute the selected item on On-Screen Menu.
- Used to select input source: TV/AV1(S-VIDEO)/ AV2(DVD)
/HDMI(DVI)/PC.
-Used to confirm the selected item on On-Screen Menu.
-Open or close the On-Screen Menu.
MENU button
INPUT MODE button
Connect a television, video recorder or
external audio amplifier to these jacks.
● Video (RCA type)
● Audio L and R (RCA type)
Connect video and audio outputs from
video equipment.
● Video (RCA type)
● Audio L and R (RCA type)
● S-Video (mini DIN 4 type)
AV1 Terminals
Connect the cable with a plug from
aerial jack to the aerial socket on the
cabinet back.
Aerial Jack
Connect computer outputs to these
terminals.
● RGB (D-SUB)
● Audio (L/R)
PC Input Terminals
