Sanyo MDF-U55V - Test Data - Cycle Temperature Analysis; Cycle Temperatures at -80°C; 30°C Conditions; Cycle Temperatures at -80°C; 20°C Conditions

- 37 -
<Sample load test>
1st shelf: 500ml x 45bottles
2nd shelf: 500ml x 45bottles
3rd shelf: 500ml x 45bottles
4th shelf: 500ml x 45bottles
Front
d
c
b
a

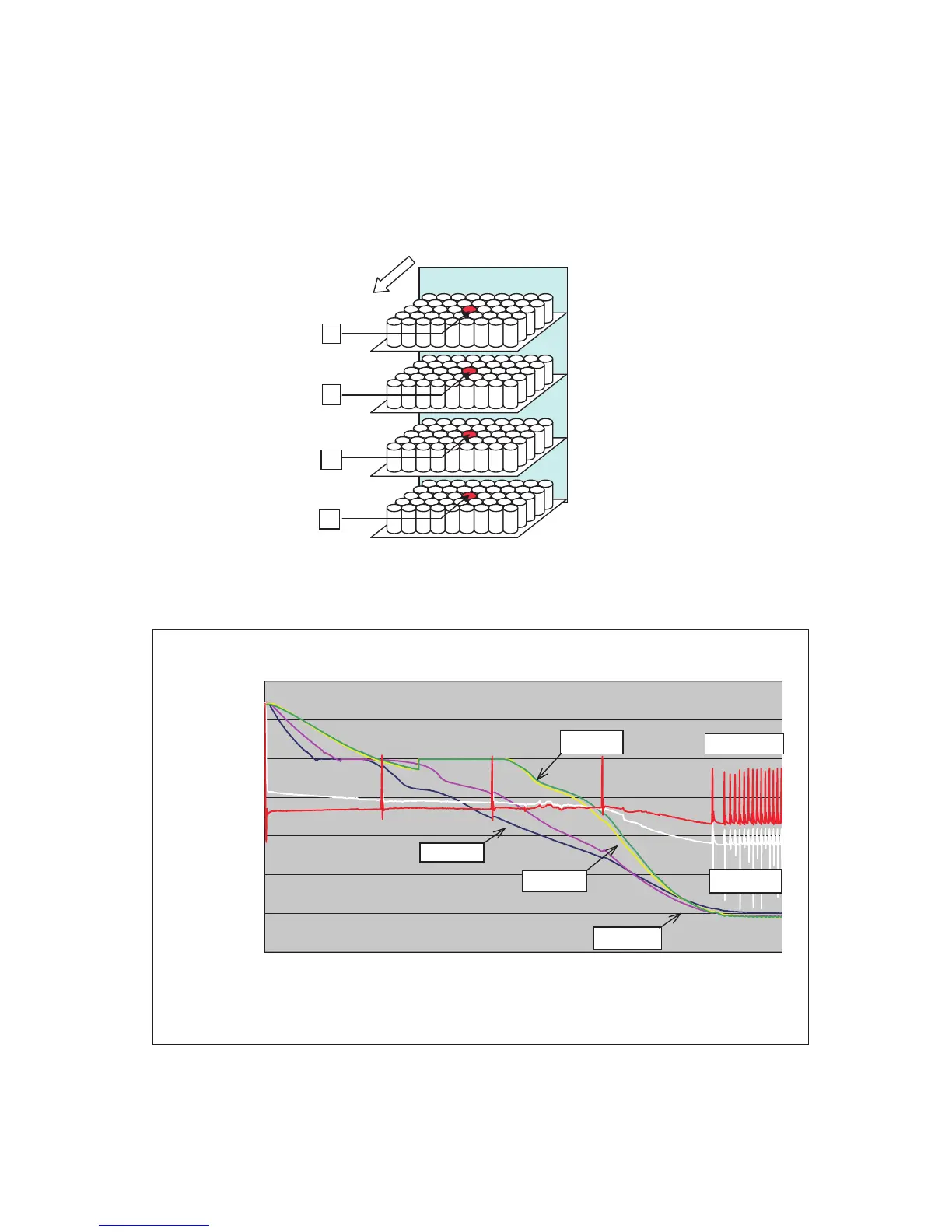

Conditions: 500ml water x 180 bottles 䠄90L䠅
Measuring points: a, b, c, d, L eva-out, H eva-out
Ambient temperature: 30䉝
Pull-down data AT:30䉝
-100
-80
-60
-40
-20
0
20
40
0 1020304050607080
Time䠄hr䠅
Temperature
䠄䉝䠅
L eva out
H eva out
Load a
Load b
Load c
Load d
