PREPARATION
INSTALLATION OF OPTIONAL SPEAKERS AND STAND
Place the Plasma Display screen facing down on a flat surface place where maintained with soft materials (such
as a blanket) for protecting the display screen. Loosen the screws A of the Plasma Display.
● Through installation work, handling with more than two people is recommended.
● When holding (moving or lifting) the Plasma Monitor, hold the Monitor's body. Do not
handle it by holding the attached accessory parts (the Speakers), otherwise damage
could be result.
● Provide space that enough larger than the screen size. The surface must be flat and
maintained with soft material (cloth or blanket) for protecting the screen surface.
● Before placing the Plasma Monitor Screen facing down, make sure there is no object under the screen.
Leaving any object may cause damage on the screen surface.
Please read the each option's instruction manual (or installation manual) for the installation.
CAUTION IN INSTALLATION
SPEAKERS
(
OPTIONAL
)

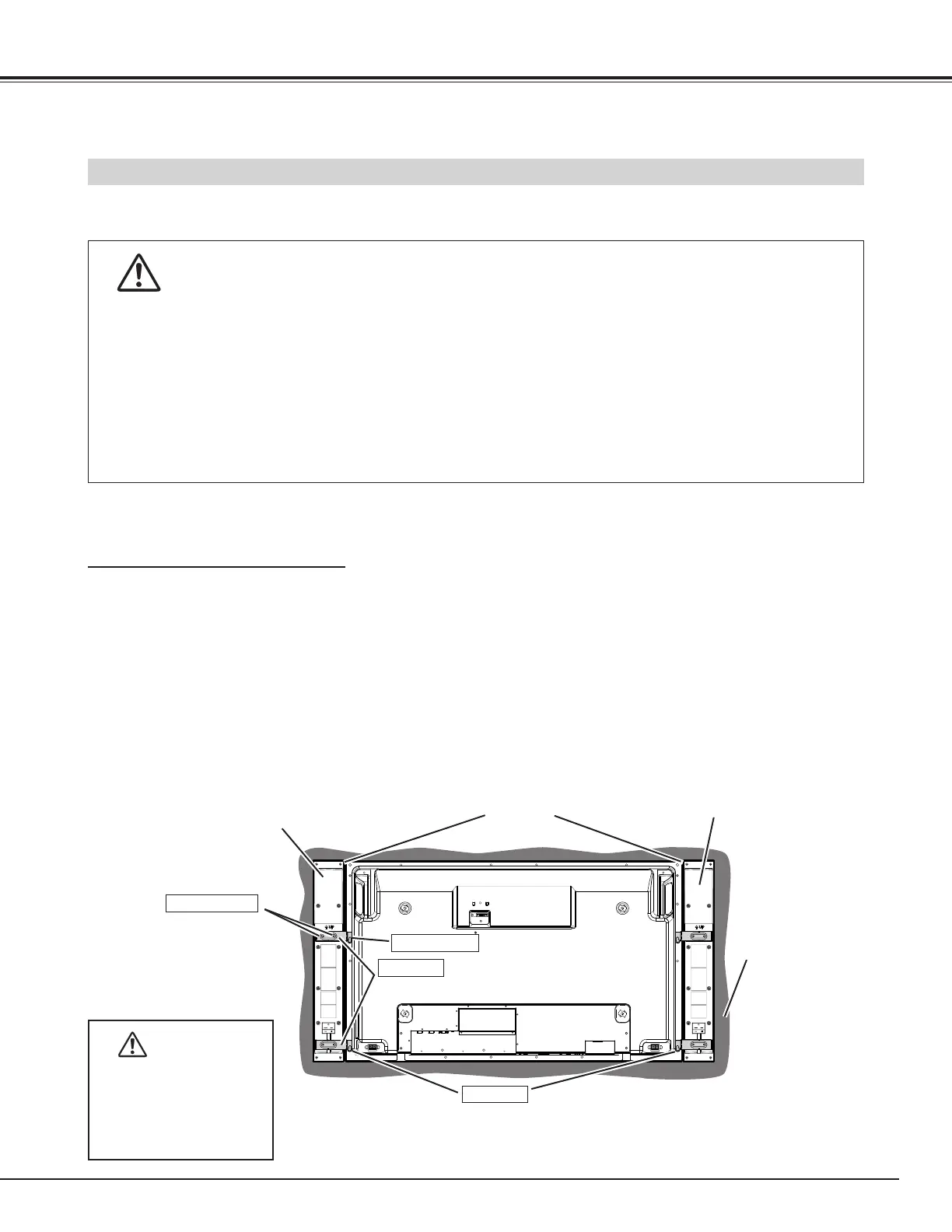

Loosen the screws A of the Plasma Display. With hooking the lower brackets to the screws A, tighten the small
screws (1 pc. for each lower bracket) to fix the bracket and the Plasma Monitor. Be careful not to leave the
space between the Speakers and the Plasma Display. Tighten the screws A.
Place the Speakers where each soft-taped side comes next to each side of the Plasma Display, and attach 2
brackets for each Speaker with the large screws (2 pcs. for each bracket).
CAUTION
Do not leave any object
(parts, tools, etc,.) under
the screen, otherwise
the screen face may be
damaged.
Small Screws
Large Screws
Right Speaker
Mount the same as the
Right Speaker.
Brackets
Soft Tapes
Soft Cloth
Screws A
To Next Page
